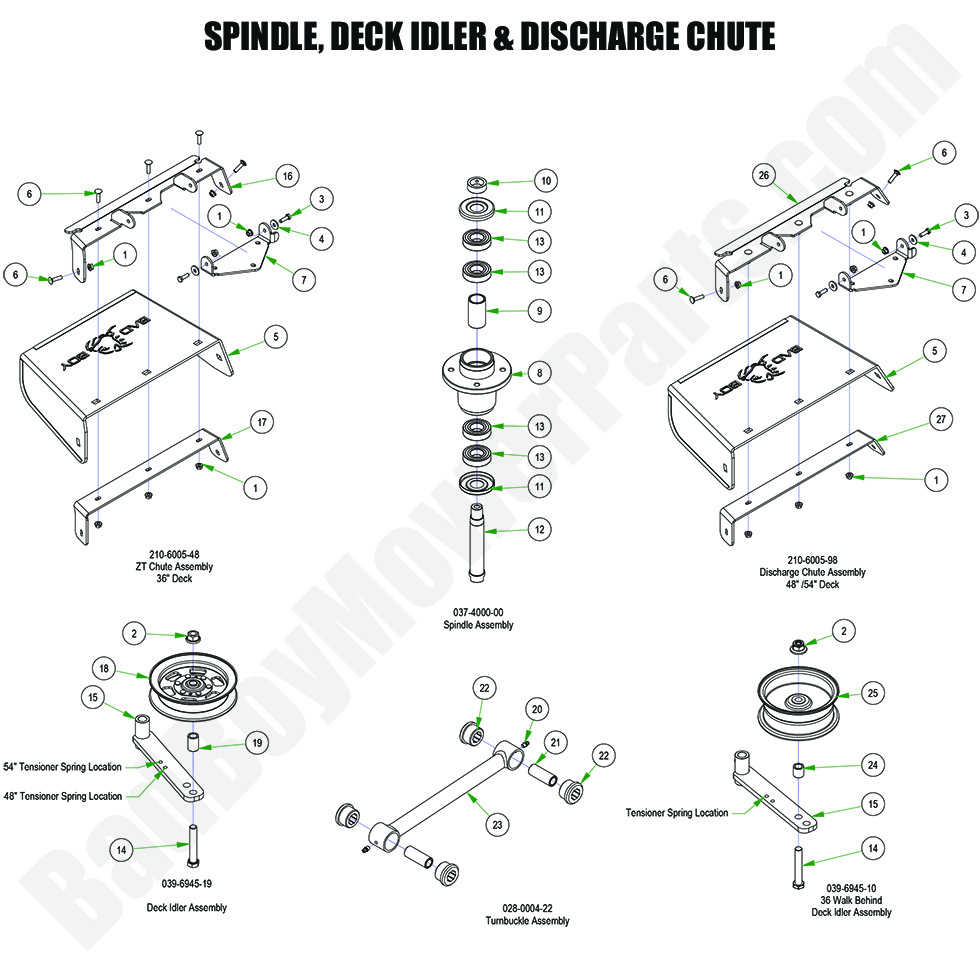

2024 Raider - Spindle, Deck Idler & Chute

2024 Raider - Spindle, Deck Idler & Chute

The 2024 Raider Spindle, Deck Idler & Chute are key components for ensuring a smooth and efficient mowing experience. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts for the 2024 Raider Spindle, Deck Idler & Chute, so you can easily replace worn or damaged parts. Our Bad Boy Mower Part Diagrams provide clear visual references to help you identify the exact parts you need for repairs or maintenance. Whether you're looking for Bad Boy Lawn Mower Parts for general upkeep or specific components like the spindle or deck idler, we have high-quality options available. Shopping Bad Boy Parts Online is quick and easy, with our website designed to help you find the parts you need in no time. Plus, with Free Shipping On Orders Over $100, you can save on shipping while keeping your 2024 Raider in top condition. Shop now for all your spindle, idler, and chute parts!

Bad Boy Mower Parts Lookup

2024 Raider - Spindle, Deck Idler & Chute
  Position Number SKU Product Title Price
1.0 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
1.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
5 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
6 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
7 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
8.0 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
9 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
10 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
11 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
12 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
13 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
14.0 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
14.1 039-6945-10 039-6945-10 - 36" Walkbehind Deck Idler Assembly
$106.99
14 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
15 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
16 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
17 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
18 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
19 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
20.0 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
20 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
21 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
22 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
24 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
25 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
26 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
27 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
