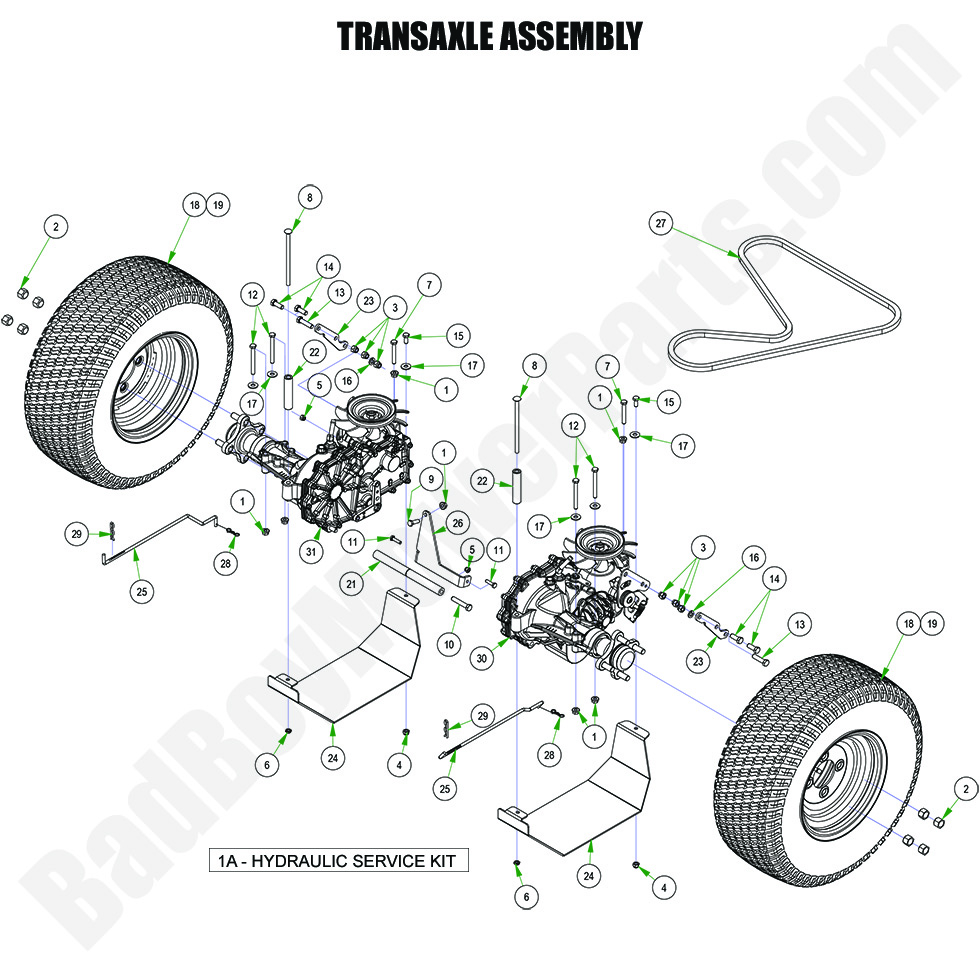

2024 Raider - Transaxles

2024 Raider - Transaxles

The 2024 Raider Transaxles are vital to the movement and efficiency of your mower. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts for the 2024 Raider Transaxles, ensuring you can keep your mower in excellent working condition. Our Bad Boy Mower Part Diagrams provide clear images of the components you need for the transaxle system, making it easier than ever to identify and replace parts. Whether you're looking for Bad Boy Lawn Mower Parts for a quick fix or a full system replacement, we have top-quality options for you. Shopping Bad Boy Parts Online is simple and efficient, with our website designed for quick and easy part identification. Plus, take advantage of Free Shipping On Orders Over $100, so you can save on shipping while keeping your 2024 Raider transaxles functioning smoothly. Shop now for all your transaxle needs!

Bad Boy Mower Parts Lookup

2024 Raider - Transaxles
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
3 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
4 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
5 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
6 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
7 018-0023-00 018-0023-00 - 5/16-18 x 2.25" Hex Bolt
$2.99
8 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
10 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
11 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
12 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
13 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
14 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
15 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
16 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
17 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
18 022-2500-22 022-2500-22 - 21 x 8.5 - 10 turf assembly Black Wheel
$162.99
19 022-8019-22 022-8019-22 - 21x7-10 Assy-36" Walk Behind Black Wheel
$171.99
21 025-0018-00 025-0018-00 - 2017 Transaxle Spacer Walk Behind
$11.76
22 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
23 026-0173-00 026-0173-00 - 2020 Walk Behind Hydro Plate Extension-- No Longer Available
Obsolete.
24 026-3441-00 026-3441-00 - 2020 Walk Behind Trans Skid Plate--Orang
$53.49
26 039-1917-00 039-1917-00 - Walk Behind Brake Pull Bracket
$10.99
27 041-8053-00 041-8053-00 - Walk Behind Pump Belt
$58.84
28 044-2004-00 044-2004-00 - Bow Pin
$2.99
29 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
30 050-0003-01 050-0003-01 - Walk Behind Transaxle Left 3100
$699.99
31 050-0004-01 050-0004-01 - Walk Behind Transaxle Right
$699.99
