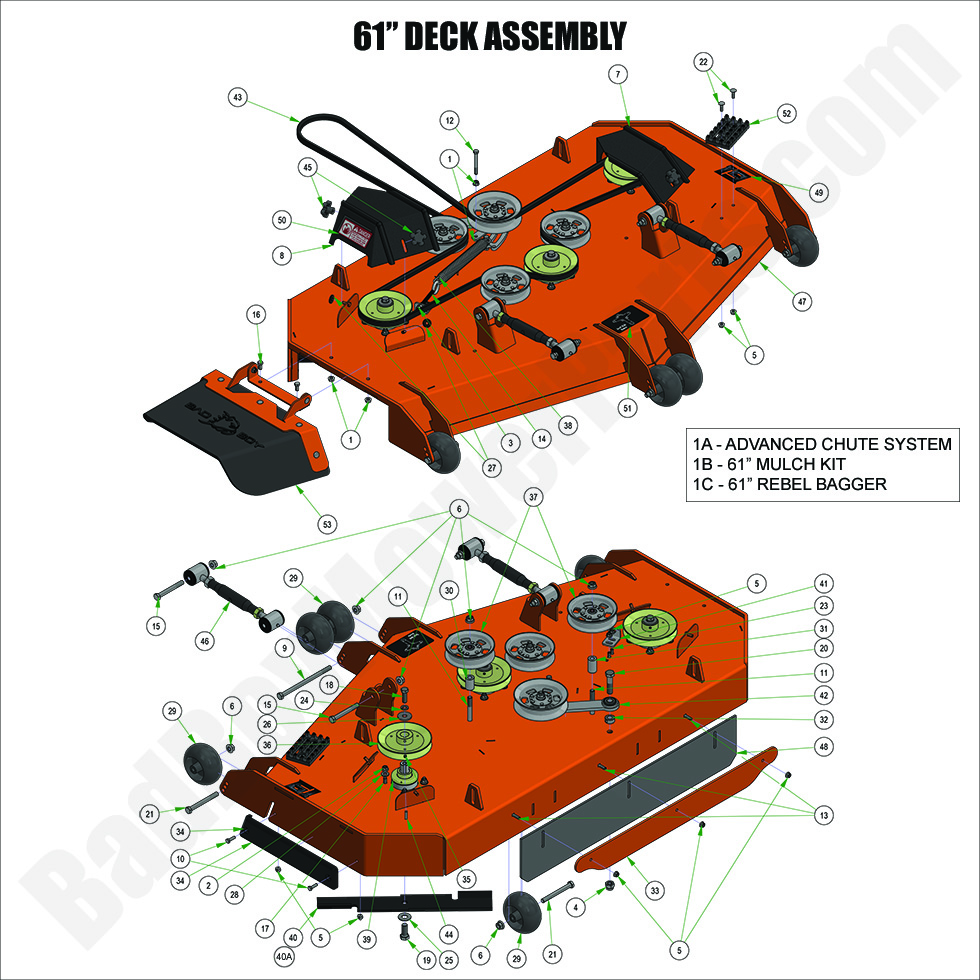

2024 Rebel & Rebel X - 61" Deck Assembly

2024 Rebel & Rebel X - 61" Deck Assembly

The 2024 Rebel & Rebel X 61" Deck Assembly ensures that you get a precise and clean cut every time you mow. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the 2024 Rebel & Rebel X 61" Deck Assembly, making it easy to repair or upgrade your mower’s deck. Our Bad Boy Mower Part Diagrams provide detailed visual guides to help you quickly find the parts you need. Whether you're looking for Bad Boy Lawn Mower Parts for regular maintenance or more specific deck assembly components, we offer top-quality options. Shopping Bad Boy Parts Online is quick and efficient, and our website makes part selection simple. Plus, enjoy Free Shipping On Orders Over $100, so you can save on shipping while keeping your 2024 Rebel & Rebel X mower performing at its best. Browse our selection today for all your deck assembly needs!

Bad Boy Mower Parts Lookup

2024 Rebel & Rebel X - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
1C 092-4009-23 092-4009-23 Top Discharge Bagger (2019-2025 61" Rogue)
$2799.99
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5052-00 014-5052-00 - 61" Left Deck Pulley Cover - Rebel, Renegade & Rogue
$17.86
8 014-5053-00 014-5053-00 - 61" Right Deck Pulley Cover 2019-& Up Rebel, Renegade & Rogue
$17.86
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
13 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
14 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
15 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
16 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
17 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
21 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
22 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
23 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
24 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
27 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
28 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
29 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
30 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
31 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
32 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
33 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
34 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
35 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
36 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
37 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
38 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
39 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
40A 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
40 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
41 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
42 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
43 041-0178-00 041-0178-00 - B178 Deck Belt For 61" Decks (See Models Used On For Details)
$96.29
44 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
45 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
46 048-8000-00 048-8000-00 Turnbuckle Assembly (obsolete)
use part #048-9000-00
$80.24
47 060-6151-19 060-6151-19 - 61" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
48 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
49 091-0506-00 091-0506-00 - MY24 61" Deck Decal
$9.89
50 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
51 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
53 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
