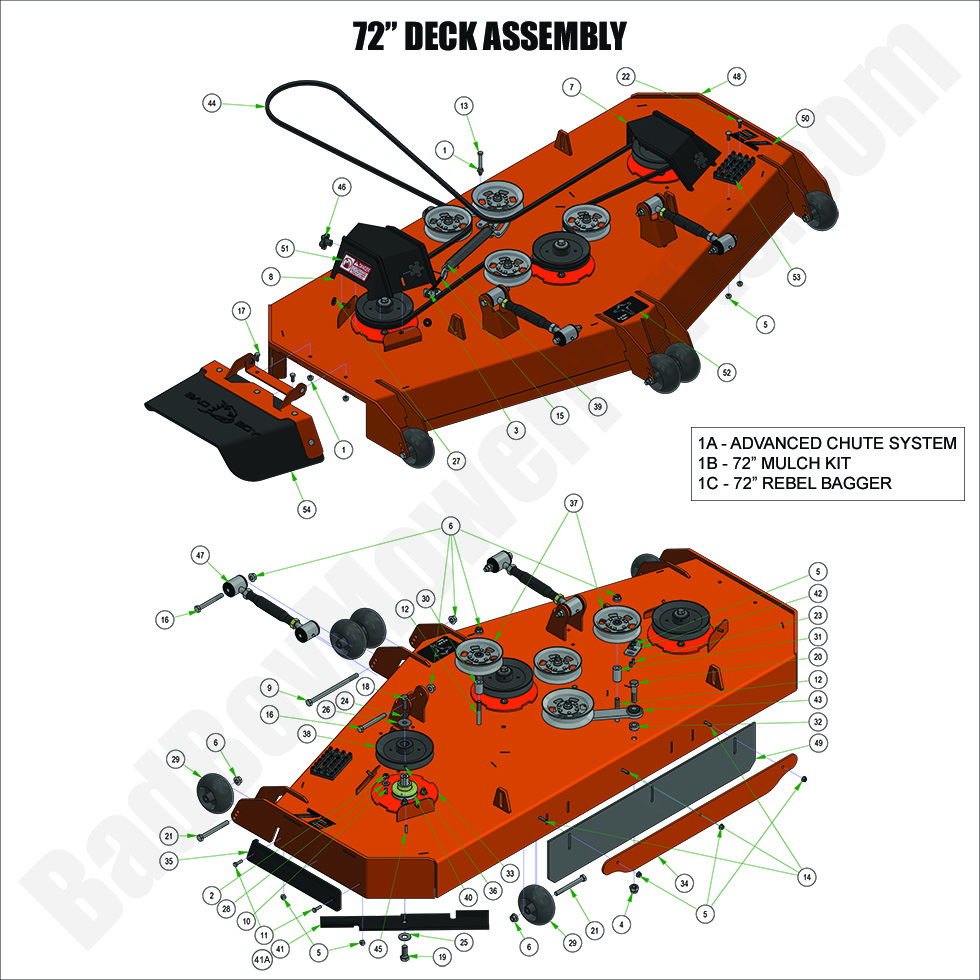

2024 Rebel & Rebel X - 72" Deck Assembly

2024 Rebel & Rebel X - 72" Deck Assembly

The 2024 Rebel & Rebel X 72" Deck Assembly provides exceptional performance for larger mowing areas. At BadBoyMowerParts.com, we offer an extensive selection of Bad Boy Mower Parts for the 2024 Rebel & Rebel X 72" Deck Assembly, ensuring you can replace or repair parts with ease. Our Bad Boy Mower Part Diagrams help you pinpoint the exact components required for your deck assembly. Whether you're maintaining your mower or looking to replace specific parts, we provide high-quality Bad Boy Lawn Mower Parts to ensure long-lasting performance. Shopping Bad Boy Parts Online is convenient, and our website is designed to help you find exactly what you need. Plus, with Free Shipping On Orders Over $100, you can save on delivery while maintaining your 2024 Rebel & Rebel X mower in peak condition. Visit us today for all your deck assembly needs!

Bad Boy Mower Parts Lookup

2024 Rebel & Rebel X - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0372-00 210-0372-00 - 2019-2025 72" Mulch Kit w/Blades Outlaws
$318.45
1C 092-4011-23 092-4011-23 Top Discharge Bagger (2019-2025 72" Rogue)
$2799.99
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5054-00 014-5054-00 - 72" Left Deck Pulley Cover 2019 & Up Rebel, Renegade & Rogue
$17.86
8 014-5055-00 014-5055-00 - 72" Right Deck Pulley Cover (See Models Used On For Details)
$17.86
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
10 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
14 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
15 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
16 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
17 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
21 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
22 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
23 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
24 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
27 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
28 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
29 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
30 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
31 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
32 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
33 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
34 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
35 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
36 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
37 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
38 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
39 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
40 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
41A 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
41 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
42 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
43 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
44 041-0202-00 041-0202-00 - B202 Deck Belt for 72" (See Models Used On for Details)
$109.40
45 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
46 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
47 048-8000-00 048-8000-00 Turnbuckle Assembly (obsolete)
use part #048-9000-00
$80.24
48 060-7251-19 060-7251-19 - 72" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
49 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
51 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
52 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
53 099-7000-00 099-7000-00 - Deck Step Assembly (See Models Used On For Details)
$53.49
54 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
