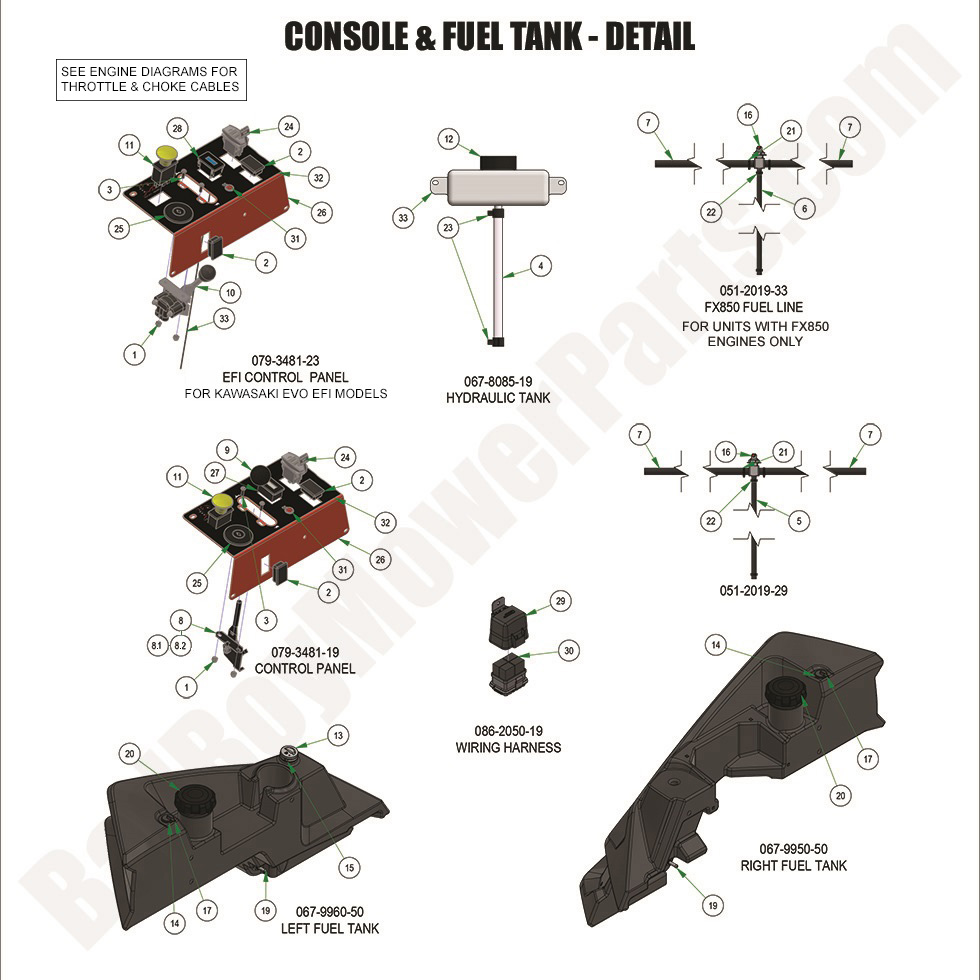

2024 Rebel & Rebel X - Console & Fuel Tank - Detail

2024 Rebel & Rebel X - Console & Fuel Tank - Detail

The 2024 Rebel & Rebel X Console & Fuel Tank - Detail offers important details on components that are essential for your mower’s operation. At BadBoyMowerParts.com, we provide a wide range of Bad Boy Mower Parts for the 2024 Rebel & Rebel X Console & Fuel Tank - Detail, ensuring that every part is available for easy replacement or upgrade. Our Bad Boy Mower Part Diagrams provide clear images to help you quickly find the components needed for these systems. Whether you need Bad Boy Lawn Mower Parts for a routine fix or specific replacements, we offer high-quality options that meet the demands of your mower. Shopping Bad Boy Parts Online is efficient, with a website designed to make locating parts fast and easy. Plus, take advantage of Free Shipping On Orders Over $100, allowing you to save on shipping while maintaining your 2024 Rebel & Rebel X. Shop with us today for all your console and fuel tank needs!

Bad Boy Mower Parts Lookup

2024 Rebel & Rebel X - Console & Fuel Tank - Detail
  Position Number SKU Product Title Price
1.1 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
2 018-1040-00 018-1040-00 - Light Plug
$2.99
3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
4.0 067-8085-19 067-8085-19 - Hydro Tank Assembly-Rebel
$49.92
4 051-0019-00 051-0019-00 - 7.5" Hydro Tank Hose 2019-2022 Rebel
$11.34
5 051-8067-22 051-8067-22 - 22" 1/4" Fuel Line No Clamp
$11.76
6 051-8067-32 051-8067-32 - 32" 1/4" Fuel Line No Clamps
$16.04
7 051-8075-26 051-8075-26 - 26" 5/16 Fuel Line No Clamps
$18.72
8 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
9 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
11 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
12 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
13.0 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
13 067-4080-00 067-4080-00 - Fuel Gauge (See Models Used On For Details)
$32.09
14.1 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
14 067-6054-00 067-6054-00 - Fuel Gauge Grommet
$8.01
15 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
16 067-6058-00 067-6058-00 - 3 Way Fuel Shut-Off Valve 5/16 x 5/16 x
$21.39
17 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
19 067-9901-00 067-9901-00 - Bulkhead Fitting for Fuel Tanks 2019-2025 Rebel, Renegade & Rogue
$22.71
20 067-9904-00 067-9904-00 - Fuel Cap for Fuel Tank 2019-2025 Rebel, Renegade Gas & Rogue
$28.39
21 072-8068-00 072-8068-00 - 5/16 Fuel Line Clamp
$3.62
22 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
23 072-8074-00 072-8074-00 - 5/8" Wire Clamp - Outlaw & Rebel
$4.81
24 077-2076-00 077-2076-00 - USB Port
$46.84
25 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
27 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
28 083-4015-00 083-4015-00 Tach For FX1000 EFI & EVO 781 & 820
$64.19
29.0 086-2050-19 086-2050-19 - Wiring Harness-No Display 2019-2025 Rebel & Rogue
$363.44
29 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
30 086-1202-19 086-1202-19 - Relay Terminal
$24.97
31 089-1000-00 089-1000-00 - Oil Light
$12.63
32 091-4009-22 091-4009-22 2022-2024 Rebel/Rogue Control Panel Decal
$10.99
33A 067-8085-00 067-8085-00 - Expansion Tank for Outlaw (See Models Used On For Details)
$31.22
33 216-1002-00 216-1002-00 - 16 Gauge 56" Ground Wire Assembly No Longer Available
Obsolete.
