2024 Rebel & Rebel X - Drive Arm Assembly

2024 Rebel & Rebel X - Drive Arm Assembly

The 2024 Rebel & Rebel X Drive Arm Assembly is a crucial component of the mower’s drive system, ensuring your mower moves with ease. At BadBoyMowerParts.com, we provide a full range of Bad Boy Mower Parts for the 2024 Rebel & Rebel X Drive Arm Assembly, ensuring you can replace or repair this important part with ease. Our Bad Boy Mower Part Diagrams provide clear and detailed images to help you identify the exact parts you need for the drive arm assembly. Whether you're in need of Bad Boy Lawn Mower Parts for routine maintenance or specific replacements, we have the parts you need to keep your mower running smoothly. Shopping Bad Boy Parts Online is quick and convenient, with our easy-to-navigate website helping you find what you're looking for. Plus, with Free Shipping On Orders Over $100, you can save on shipping while keeping your 2024 Rebel & Rebel X mower in top condition. Shop with us today for all your drive arm assembly needs!

Bad Boy Mower Parts Lookup

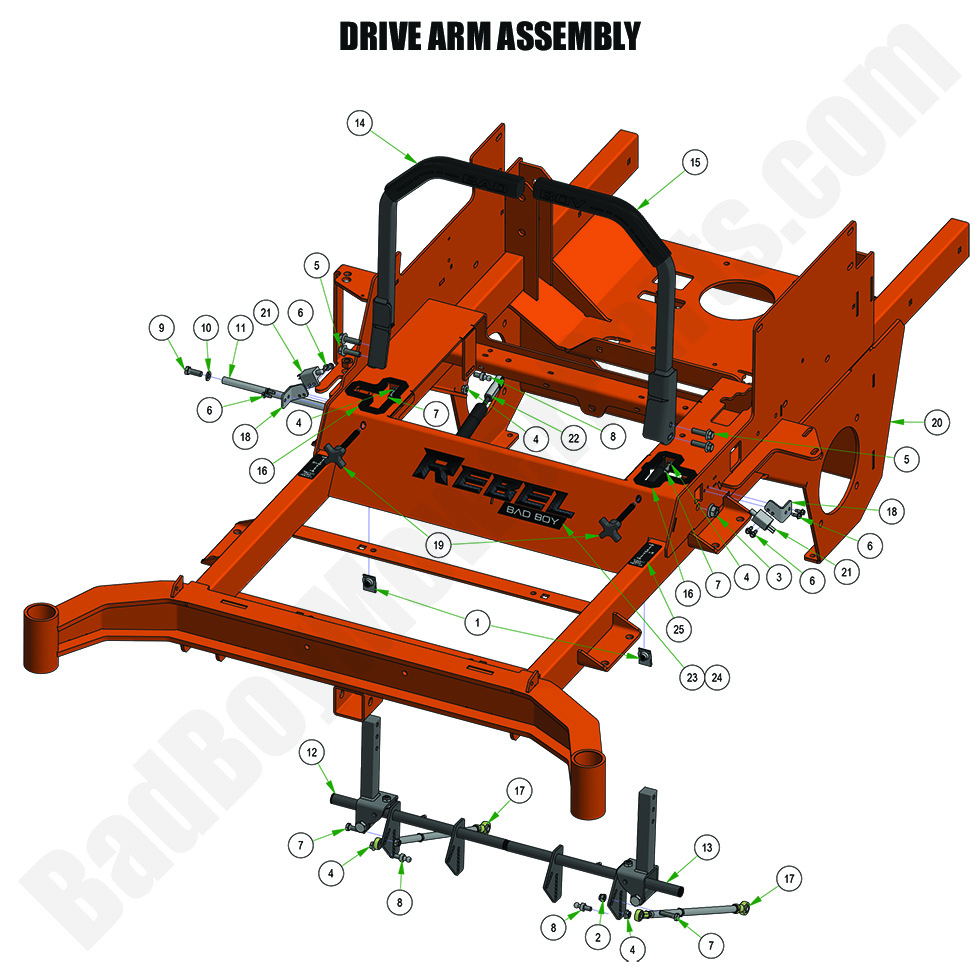

2024 Rebel & Rebel X - Drive Arm Assembly
  Position Number SKU Product Title Price
1 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
2 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 018-0078-00 018-0078-00 - 3/8"-16 Thread Size, 1" 1/4 Long
$2.99
6 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
7 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
8 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
9 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
12 031-0030-24 031-0030-24 - 2024 R Series RH Arm Rod Assembly
$96.29
13 031-0031-24 031-0031-24 - 2024 R Series LH Arm Rod Assembly
$96.29

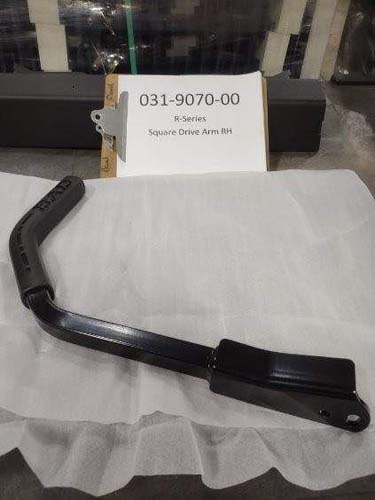

14 031-9070-00 031-9070-00 - R-Series Square Drive Arm RH Assembly
$129.99
15 031-9071-00 031-9071-00 - R-Series Square Drive Arm LH Assembly
$129.99
16 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55
17 035-0009-01 035-0009-01 - Rebel Push Rod Assy
$32.09
18 039-2160-00 039-2160-00 - Arm Switch Bracket (See Models Used On For More Detail)
$13.90
19 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
20 070-2304-00 070-2304-00 - 2023-Newer Rebel Frame--Orange
$1099.99
21 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
22 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
23 091-0514-00 091-0514-00 - MY24 Rebel Back Plate & Front Decal
$10.99
24 091-0515-00 091-0515-00 - MY24 Rebel X Back Plate & Front Decal
$10.99
25 091-1114-00 091-1114-00 - 2018-2022 LH/RH Steering Control Decal Roll
$15.60
