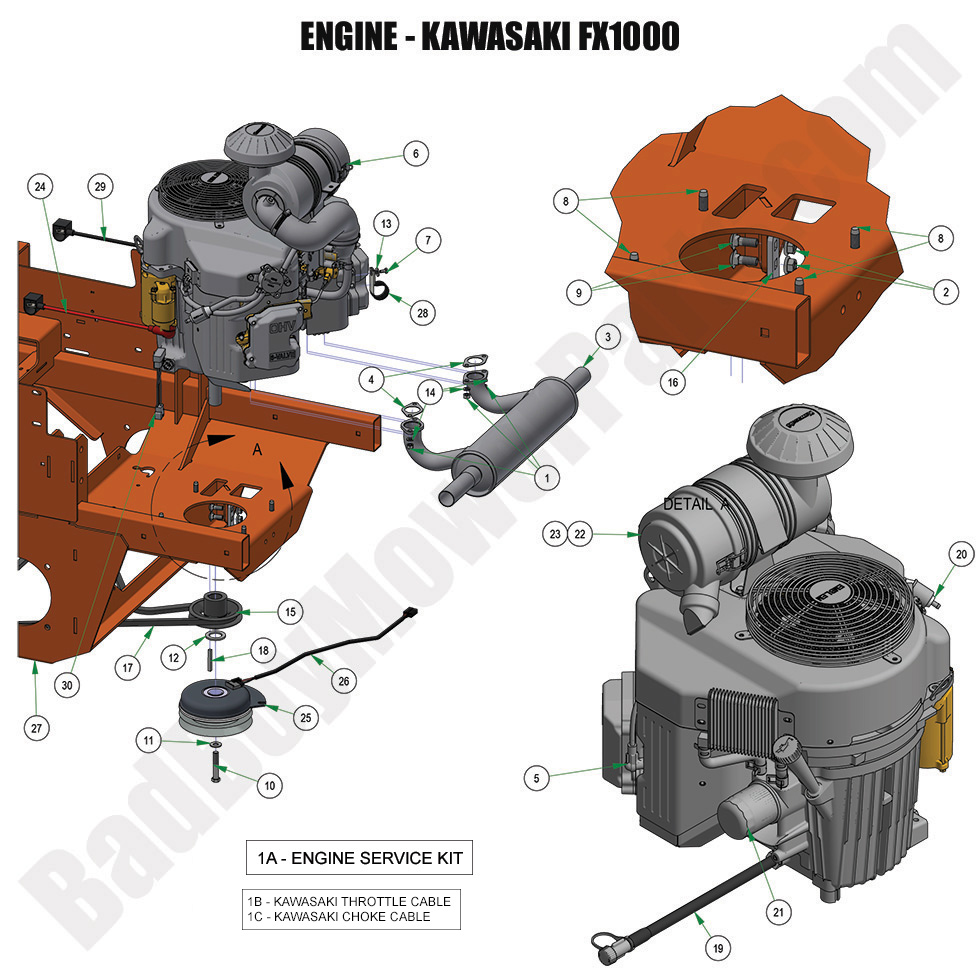

2024 Rebel & Rebel X - Engine - Kawasaki FX1000

2024 Rebel & Rebel X - Engine - Kawasaki FX1000

The 2024 Rebel & Rebel X Engine - Kawasaki FX1000 provides the power and performance needed for tough mowing jobs. At BadBoyMowerParts.com, we offer a comprehensive selection of Bad Boy Mower Parts for the 2024 Rebel & Rebel X Engine - Kawasaki FX1000, ensuring your engine performs at its best. Our Bad Boy Mower Part Diagrams offer detailed visual guides, helping you quickly locate the parts you need. Whether you’re looking for Bad Boy Lawn Mower Parts for a routine tune-up or replacement components for the engine, we have the right parts for your needs. Shopping Bad Boy Parts Online is easy and efficient, with our website allowing you to quickly find the parts you need. Plus, with Free Shipping On Orders Over $100, you can save on delivery costs while keeping your 2024 Rebel & Rebel X engine running smoothly. Shop with us today for all your engine parts!

Bad Boy Mower Parts Lookup

2024 Rebel & Rebel X - Engine - Kawasaki FX1000
  Position Number SKU Product Title Price
1A 063-2000-20 063-2000-20 - Kawasaki FX1000 Engine Service Kit
$123.99
1B 055-8022-00 055-8022-00 - Throttle Cable 35hp Kawasaki (NON-EFI) and 36 Vanguard Engines (NON-EFI) 2019-2025 Rebel & Rogue
$39.03
1C 054-8019-00 054-8019-00 - Choke Cable For 2019-2025 36HP Vanguard and FX1000 Engines
$26.54
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 015-1010-00 015-1010-00 - Muffler for Kawasaki FX1000V/EFI Engines (See Models Used On For Details)
$199.00
4 015-1010-01 015-1010-01 - Exhaust Gasket for FX1000V Kawasaki
$8.79
5 515-0011-00 515-0011-00 Spark Plug for FX1000
$5.99
6 015-9911-00 015-9911-00 - 2019 - 2024 FX1000V Kawasaki Engine
$2799.99
7 018-0025-00 018-0025-00 - M6-1.0x12mm Bolt
$2.99
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
10 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
11 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
12 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
13 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
14 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
15 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
17 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
18 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
19 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
20 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
21 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
22 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
23 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
24 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
25 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
26 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
27 070-2304-00 070-2304-00 - 2023-Newer Rebel Frame--Orange
$1099.99
28 072-5000-00 072-5000-00 - Diesel Hydraulic Hose Clamp
$7.28
29 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
30 086-9002-19 086-9002-19 - Wiring Harness Adaptor-All Kawasaki FX (See Models Used On For Details)
$20.29
