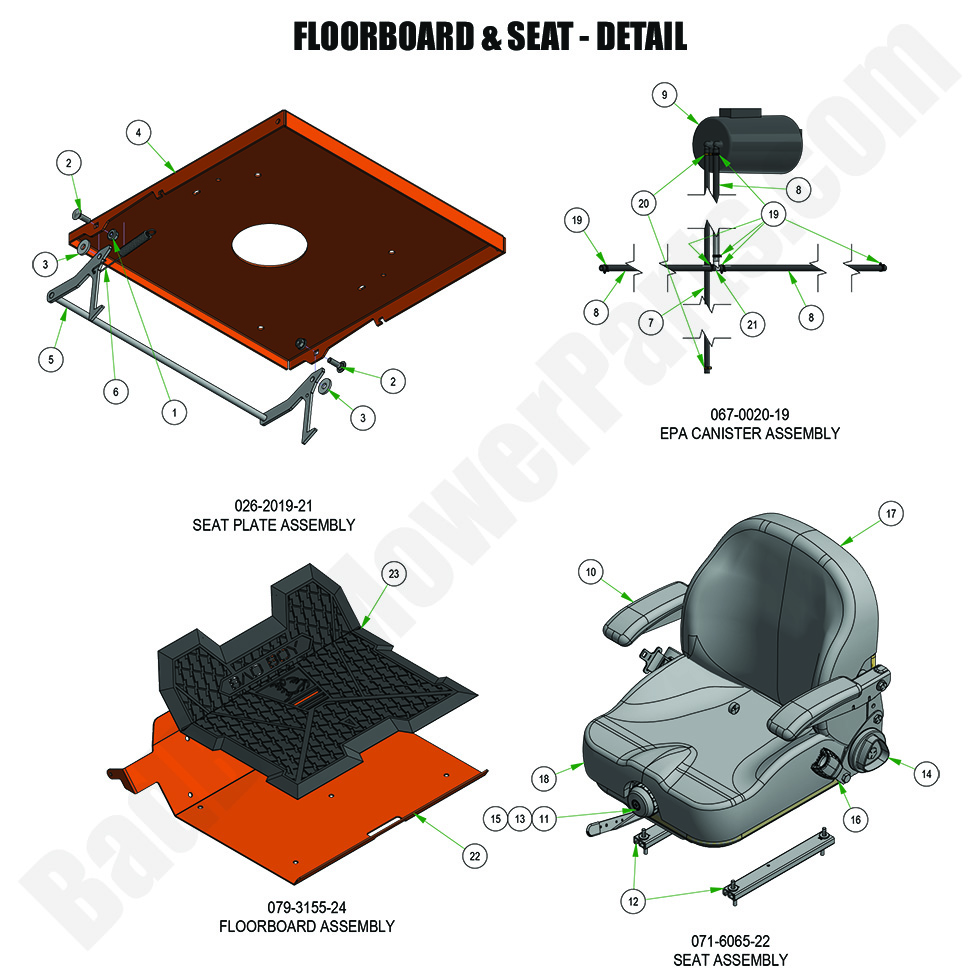

2024 Rebel & Rebel X - Floorboard & Seat - Detail

2024 Rebel & Rebel X - Floorboard & Seat - Detail

The 2024 Rebel & Rebel X Floorboard & Seat - Detail plays an important role in providing comfort and stability during operation. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts for the 2024 Rebel & Rebel X Floorboard & Seat - Detail, ensuring both comfort and functionality. Our Bad Boy Mower Part Diagrams help you easily identify the parts required for replacement or repairs, so your mower remains functional and comfortable for long hours of use. Whether you're in need of Bad Boy Lawn Mower Parts for upgrades or to replace worn-out components, we have the right options available. Shopping Bad Boy Parts Online is fast and easy, with our website providing detailed search filters to help you find exactly what you need. Plus, with Free Shipping On Orders Over $100, you can save on delivery while maintaining the comfort and durability of your 2024 Rebel & Rebel X mower. Shop now for all your floorboard and seat parts!

Bad Boy Mower Parts Lookup

2024 Rebel & Rebel X - Floorboard & Seat - Detail
  Position Number SKU Product Title Price
1.0 026-2019-21 026-2019-21 - R-Series Seat Plate Assembly
$149.99
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
3 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
4 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
5 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
6 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
7.0 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
7 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
8 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
9 067-0020-00 067-0020-00 - Carbon Canister
$62.40
10.0 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
10 071-6065-03 071-6065-03 - Arm Pad for 071-6065-00
$33.16
11 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
12 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
13 071-6065-07 071-6065-07 - Seat Switch for 071-6065-00
$21.28
15 071-6065-15 071-6065-15 Back Cover for I3M - Recl - Logos for 071-6065-22
$199.99
16 071-6065-14 071-6065-14 - 2" Retractable Belt Kit w/Spacers for 07
$119.99
18 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
19 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
20 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
21 073-8068-00 073-8068-00 - Fuel Line T
$9.70
23 081-2024-00 081-2024-00 - 2024 R-Series Floor Mat No Longer Available
Obsolete.
