2024 Rebel & Rebel X - Spindle, Idler & Discharge Chute

2024 Rebel & Rebel X - Spindle, Idler & Discharge Chute

The 2024 Rebel & Rebel X Spindle, Idler & Discharge Chute is essential for smooth mowing operations. At BadBoyMowerParts.com, we carry a variety of Bad Boy Mower Parts for the 2024 Rebel & Rebel X Spindle, Idler & Discharge Chute, ensuring your mower’s cutting system remains in top condition. Our Bad Boy Mower Part Diagrams make it easy to find and replace these essential parts. Whether you need Bad Boy Lawn Mower Parts for routine maintenance or a complete replacement of your spindle, idler, or chute, we offer top-quality parts built to last. Shopping Bad Boy Parts Online is simple, with a user-friendly website that allows you to find parts quickly and easily. Plus, with Free Shipping On Orders Over $100, you can save on shipping while maintaining your 2024 Rebel & Rebel X mower’s cutting performance. Shop today for all your spindle, idler, and discharge chute needs!

Bad Boy Mower Parts Lookup

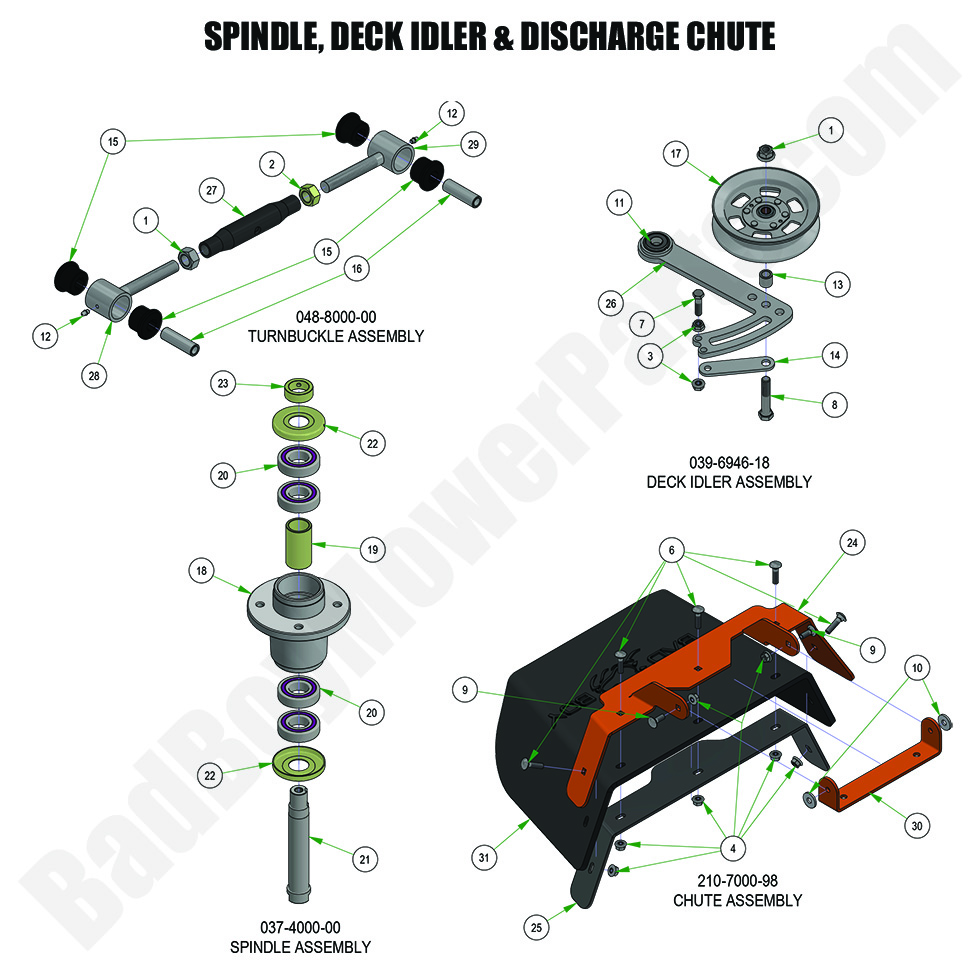

2024 Rebel & Rebel X - Spindle, Idler & Discharge Chute
  Position Number SKU Product Title Price
1.0 048-8000-00 048-8000-00 Turnbuckle Assembly
$80.24
1 013-0030-00 013-0030-00 - Hex Nut M20-2.5 No Longer Available
Obsolete.
2 013-0031-00 013-0031-00 - Hex Nut M20-2.5 Left Hand Thread No Longer Available
Obsolete.
3.0 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4.0 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
7 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
8 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
9 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
12 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
13 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
14 026-0167-00 026-0167-00 - Belt Tensioner Retainer Plate 2019-2022 Rebel, Renegade & Rogue
$26.74
15 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
16 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
17 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
18.0 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
19 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
20 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
21 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
22 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
23 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
24 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84
25 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72
26 039-6946-00 039-6946-00 - Deck Tensioner 2019-2025 Rebel, Renegade & Rogue
$35.48
27 048-8020-00 048-8020-00 - 2024 Turnbuckle Body (obsolete)
use part #048-8000-00
$80.24
28 048-8021-00 048-8021-00 - Turnbuckle End Right-Handed Thread (obsolete)
use part #048-8000-00
$80.24
29 048-8022-00 048-8022-00 - Turnbuckle End Left-Handed Thread (obsolete)
use part #048-8000-00
$80.24
30 206-6018-00 206-6018-00 - Chute Hanger 2019-2025 Rebel, Revolt, Renegade & Rogue
$9.67
31 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-& Up Rebel, Revolt, Renegade & Rogue
$62.40
