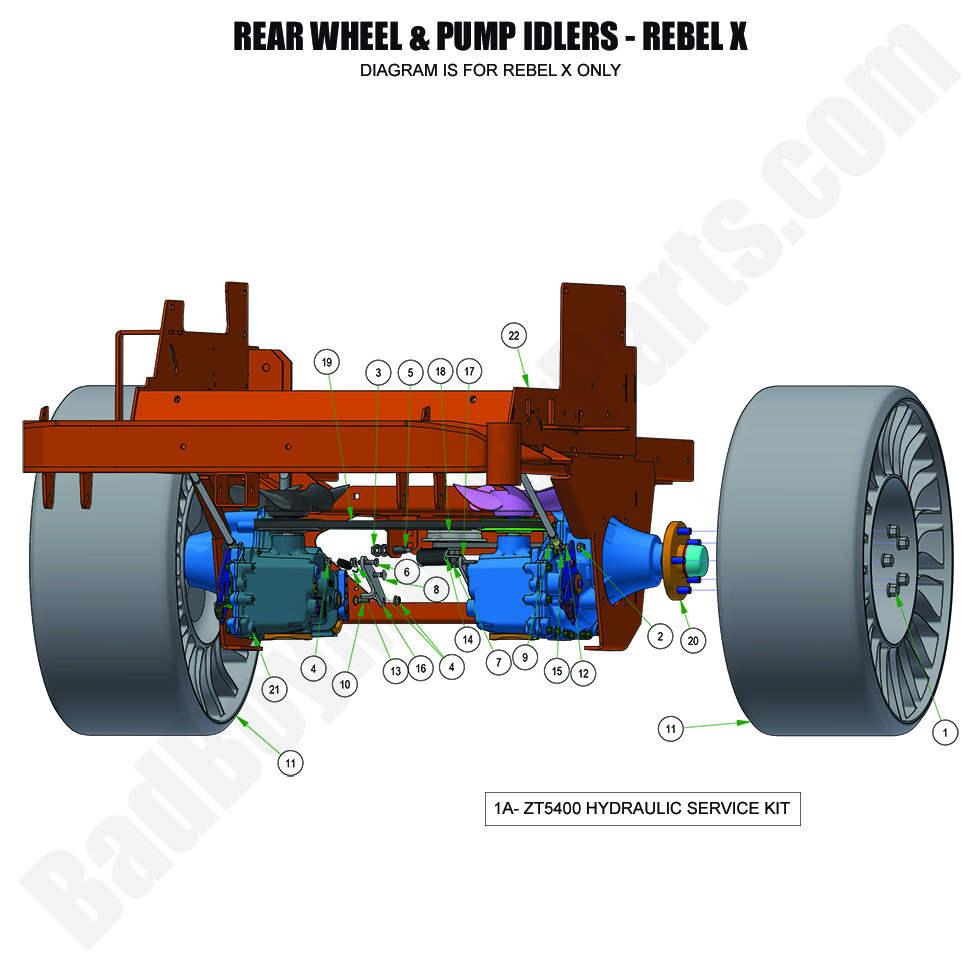

2024 Rebel & Rebel X - Transaxle - Rebel X

2024 Rebel & Rebel X - Transaxle - Rebel X

The 2024 Rebel & Rebel X Transaxle - Rebel X is a key component that ensures your mower moves efficiently and smoothly. At BadBoyMowerParts.com, we offer a full range of Bad Boy Mower Parts for the 2024 Rebel & Rebel X Transaxle - Rebel X, providing you with the parts you need for repairs or maintenance. Our Bad Boy Mower Part Diagrams make it easy to pinpoint the exact parts required for your mower’s transaxle system. Whether you need Bad Boy Lawn Mower Parts for a quick fix or a full transaxle replacement, we provide high-quality, durable parts designed to last. Shopping Bad Boy Parts Online is quick and efficient, and our website is designed to help you find the parts you need in no time. Additionally, with Free Shipping On Orders Over $100, you can save on shipping while maintaining your 2024 Rebel & Rebel X mower. Visit us today for all your transaxle needs!

Bad Boy Mower Parts Lookup

2024 Rebel & Rebel X - Transaxle - Rebel X
  Position Number SKU Product Title Price
1A 085-4050-01 085-4050-01 - Hydro-Gear ZT5400 Hydro Service Kit
$159.92
1 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
2 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
6 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
7 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
8 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
9 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
10 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11 022-4092-00 022-4092-00 - Michelin 24x12x12 X Tweel Turf 5x4.5 Bolt
$929.99
12 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
13 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
14 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
15 035-0009-01 035-0009-01 - Rebel Push Rod Assy
$32.09
19 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
20 050-7000-00 050-7000-00 - 5400 Transaxle - Left (See Models Used On For Details)
$999.99
21 050-7001-00 050-7001-00 - 5400 Transaxle - Right (See Models Used On)
$999.99
22 070-2304-00 070-2304-00 - 2023-Newer Rebel Frame--Orange
$1099.99
