2024 Rebel & Rebel X - Transaxle - Rebel

2024 Rebel & Rebel X - Transaxle - Rebel

The 2024 Rebel & Rebel X Transaxle - Rebel is essential for transferring power from the engine to the wheels, ensuring smooth and efficient operation. At BadBoyMowerParts.com, we provide a wide selection of Bad Boy Mower Parts for the 2024 Rebel & Rebel X Transaxle - Rebel, making it easy to find the right parts for replacement or repair. Our Bad Boy Mower Part Diagrams are designed to guide you in locating and identifying the exact parts for your transaxle system. Whether you're searching for Bad Boy Lawn Mower Parts for regular maintenance or specific transaxle replacements, we offer durable and high-quality components that meet your needs. Shopping Bad Boy Parts Online is simple and convenient, with our user-friendly website helping you find exactly what you're looking for. Plus, with Free Shipping On Orders Over $100, you can save on delivery costs while keeping your 2024 Rebel & Rebel X mower in peak condition. Shop now for all your transaxle needs!

Bad Boy Mower Parts Lookup

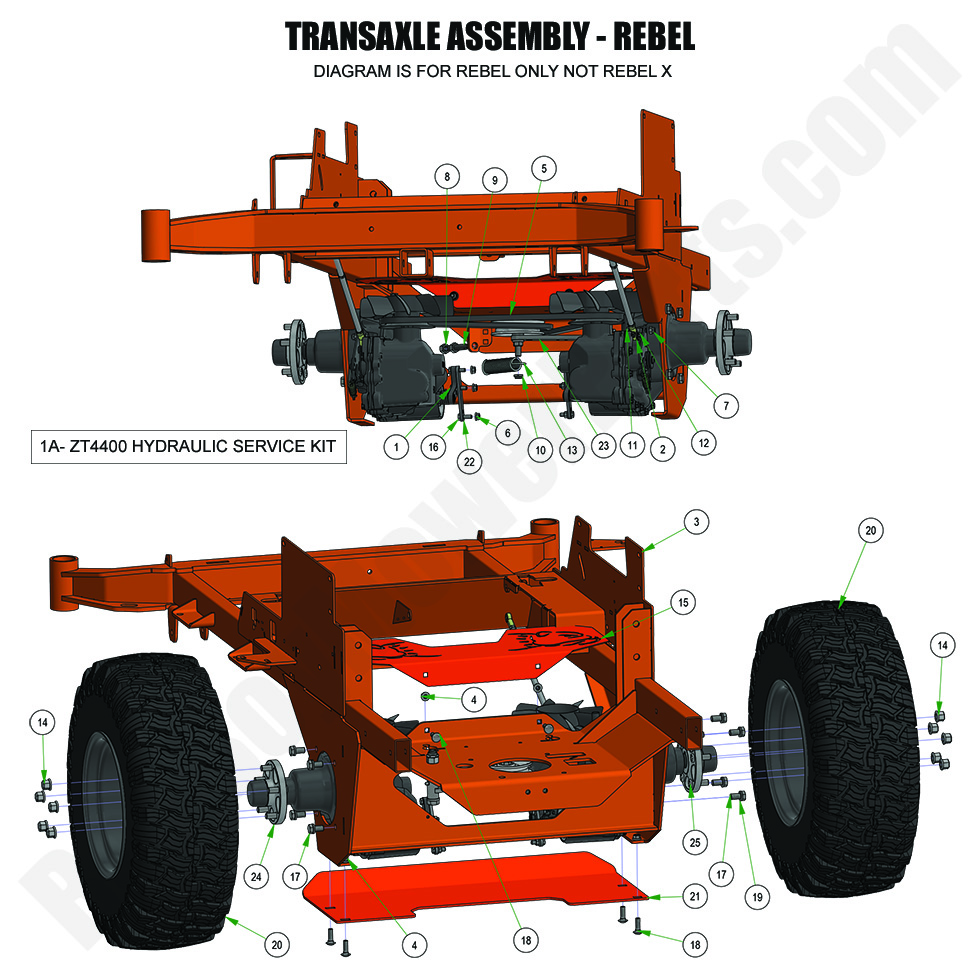

2024 Rebel & Rebel X - Transaxle - Rebel
  Position Number SKU Product Title Price
1A 085-4050-00 085-4050-00 - Hydro-Gear ZT4400 Hydro Service Kit
$124.44
1 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
2 035-0009-01 035-0009-01 - Rebel Push Rod Assy
$32.09
3 070-2304-00 070-2304-00 - 2023-Newer Rebel Frame--Orange
$1099.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
8 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
9 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
10 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
11 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
12 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
13 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
14 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
15 014-5070-00 014-5070-00 - Rigid Fan Guard
$21.39
16 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
17 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
18 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
19 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
20 022-4100-00 022-4100-00 - 2018-Newer Outlaw Tire & Rim Assy - 24x12-12 Reaper Turf
$329.99
21 026-2240-00 026-2240-00 - Rigid Skid Plate 2019-2022 Rebel
$53.49
22 039-2135-00 039-2135-00 - Brake Adapter Bracket - 4400 Transaxle (See Models Used On)
$7.69
23 039-6945-03 039-6945-03 - Pump Idler Assembly
$53.45
24 050-1000-00 050-1000-00 - 4400 Transaxle-Left
$909.99
25 050-1050-00 050-1050-00 - 4400 Transaxle - Right
$909.99
