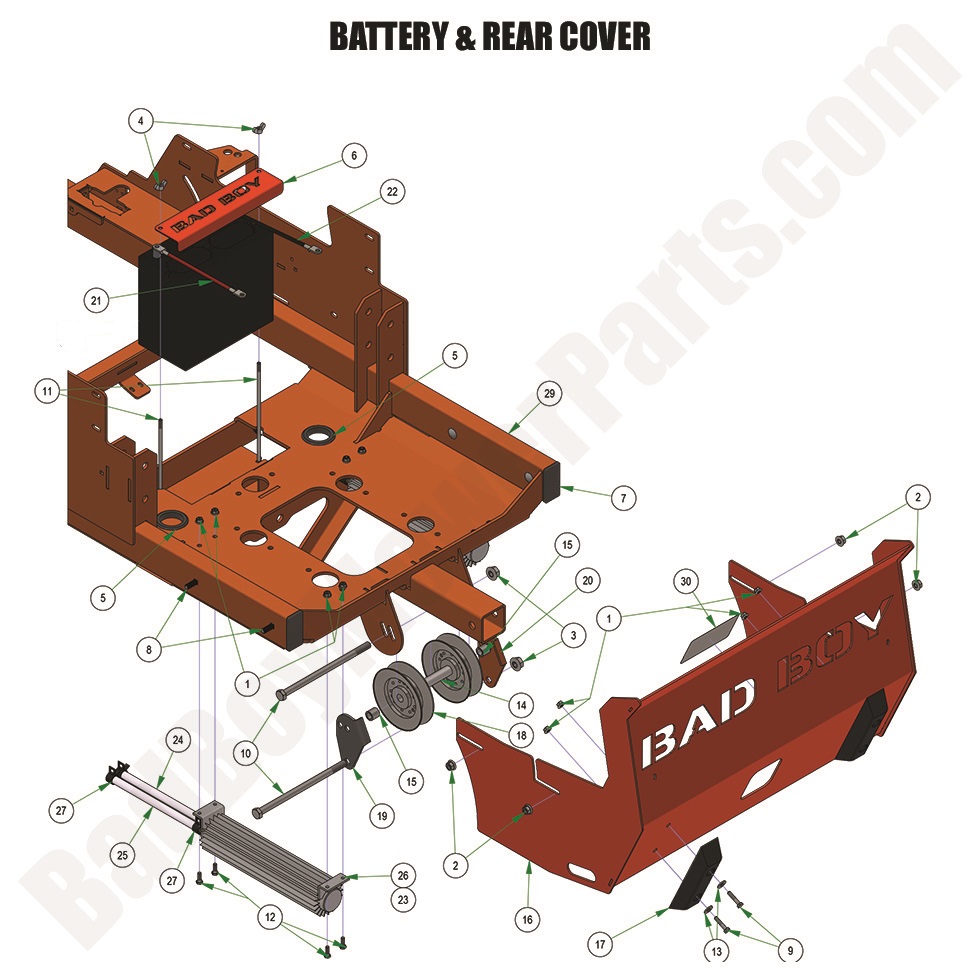

2024 Renegade - Diesel - Battery & Rear Cover

2024 Renegade - Diesel - Battery & Rear Cover

The 2024 Renegade - Diesel Battery & Rear Cover is an important part of your mower, providing protection for the battery and ensuring it stays securely in place. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the 2024 Renegade - Diesel Battery & Rear Cover, making it easy to replace worn or damaged parts. With the help of our detailed Bad Boy Mower Part Diagrams, you can easily find the exact components you need for a successful repair. Whether you're looking for Bad Boy Lawn Mower Parts for maintenance or specific replacements, we have a large inventory ready for you. Shopping Bad Boy Parts Online means you can conveniently browse through our extensive catalog and find everything you need from the comfort of your home. Plus, enjoy Free Shipping On Orders Over $100, ensuring you save on shipping while getting your 2024 Renegade - Diesel parts delivered quickly.

Bad Boy Mower Parts Lookup

2024 Renegade - Diesel - Battery & Rear Cover
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
1 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
5 014-2052-00 014-2052-00 - 2 x .25 Rubber Grommet (See Models Used On For Details)
$12.83
6 014-5063-00 014-5063-00 - Battery Hold Down Cover 2019-2025 Renegade
$10.99
7 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
8 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
9 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
10 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
12 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
13 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
14 025-0028-00 025-0028-00 - Pulley Spacer.75 x 4.375 x.5 ID 2019-2022 Renegade
$9.61
15 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
16 026-2224-00 026-2224-00 - Rear Side Cover 2019-2022 Renegade
$199.99
17 029-7038-00 029-7038-00 - 8 Bumper
$28.32
18 033-7027-00 033-7027-00 - Horizontal Rear V Pulley
$46.84
19 039-0196-00 039-0196-00 Rear Deck Belt Keep-LH-Plated
$2.99
20 039-0197-00 039-0197-00 Rear Deck Belt Keep-RH-Plated
$2.99
21 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
22 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
23 067-8052-19 067-8052-19 - Renegade Oil Cooler-Assy
$70.97
24 051-8063-14 051-8063-14 - 14" 3/8 Clear Hose No Clamp
$6.04
25 051-8063-24 051-8063-24 - 24" 3/8 Clear Hose No Clamps
$12.48
26 067-8052-00 067-8052-00 - 2019-2022 12" Oil Cooler With Fittings (See Models Used On For Details)
$62.46
27 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
30 091-4032-00 091-4032-00 - 2019-2022 Renegade Pump Belt Route Decal
$7.25
