2024 Renegade - Diesel - Deck Height Actuators

2024 Renegade - Diesel - Deck Height Actuators

Find the parts for your 2024 Renegade - Diesel at BadBoyMowerParts.com. We have the Deck Height Actuators parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

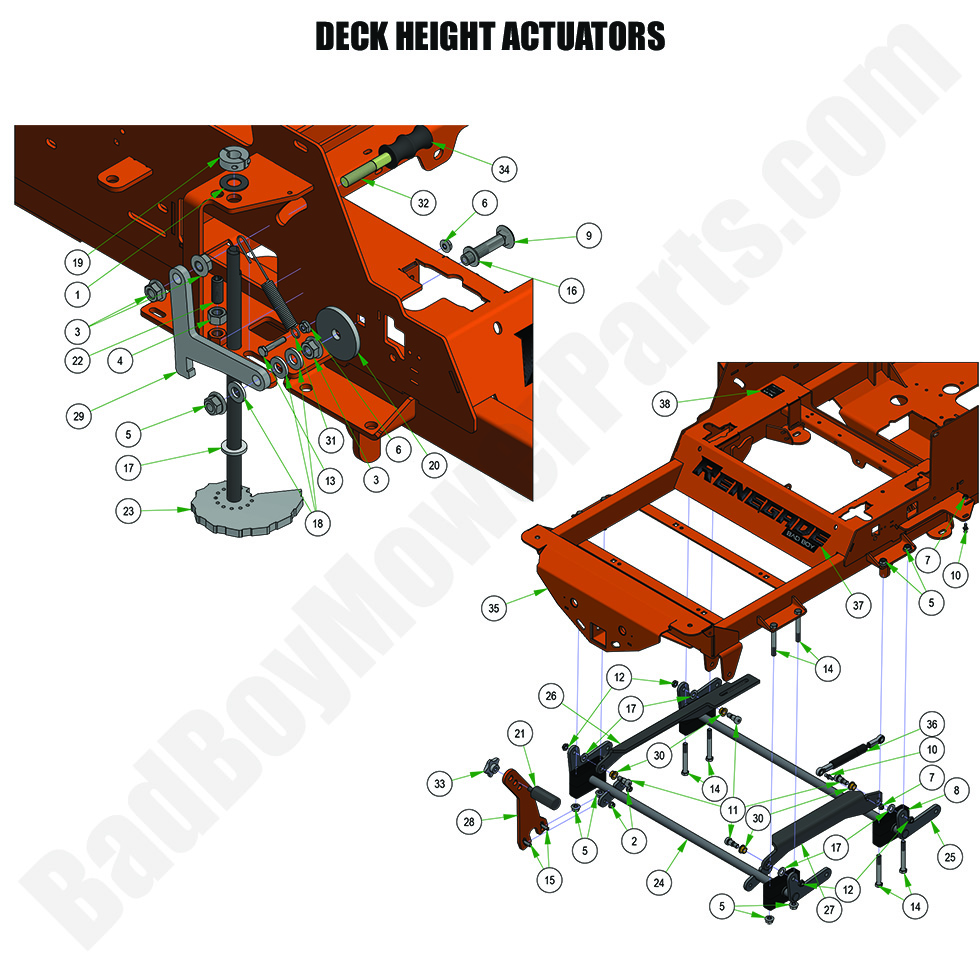

2024 Renegade - Diesel - Deck Height Actuators
  Position Number SKU Product Title Price
1 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
7 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
8 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$23.41
9 018-0043-00 018-0043-00 - 2 1/2 X 1/2 Carriage Bolt
$3.29
10 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
11 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
12 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99
13 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 GR 5 Hex Bolt
$2.99
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
17 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
18 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
19 025-0002-00 025-0002-00 -Two-Piece Split Collar (See Models Used On For Details)
$10.91
20 025-0025-00 025-0025-00 - 2019-2024 Round Spacer (See Models Used On For Details)
$7.28
21 026-0026-00 026-0026-00 - 2019-2022 Rebel, Renegade & Rogue Knurled Foot Pedal
$39.03
22 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
23 028-0015-19 028-0015-19 - Deck Height Dial Rod Assembly 2019-2024 Rebel, Renegade & Rogue
$42.79
24 028-0026-00 028-0026-00 - Front Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$127.77
25 028-0027-00 028-0027-00 - Rear Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$82.38
26 028-6075-22 028-6075-22 - 2019 Actuator Linkage-Right-Black
$43.86
28 031-0003-00 031-0003-00 - Foot Lift Upright Lever
$17.11
29 031-0125-00 031-0125-00 - Deck Travel Lock Lever 2019-2022 Rebel, Renegade & Rogue
$28.39
30 032-5052-00 032-5052-00 - Bronze Bushing - SF-2024-8 Front Suspension Fork
$4.81
31 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
32 044-4000-00 044-4000-00 - Pin (See Models Used On)
$7.25
33 045-6044-00 045-6044-00 - Foot Pedal Knob 1/2-13
$12.48
34 069-4011-00 069-4011-00 - Travel Lock Rubber Grip
$8.79
36 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
38 091-4037-00 091-4037-00 - 2019-2022 Deck Release Decal
$8.01
