2024 Renegade - Diesel - Drive Arms

2024 Renegade - Diesel - Drive Arms

The 2024 Renegade - Diesel Drive Arms are crucial for transferring power from your engine to the wheels, ensuring efficient movement and maneuverability of your mower. At BadBoyMowerParts.com, we stock a full range of Bad Boy Mower Parts for the 2024 Renegade - Diesel Drive Arms, so you can keep your mower in peak working condition. Our easy-to-read Bad Boy Mower Part Diagrams help you identify and select the correct drive arms for your mower model. Whether you need a replacement for worn-out parts or are upgrading your machine, we have the Bad Boy Lawn Mower Parts you need to get the job done. Shopping Bad Boy Parts Online is convenient, and we offer Free Shipping On Orders Over $100, so you can save even more while keeping your 2024 Renegade - Diesel operating at its best.

Bad Boy Mower Parts Lookup

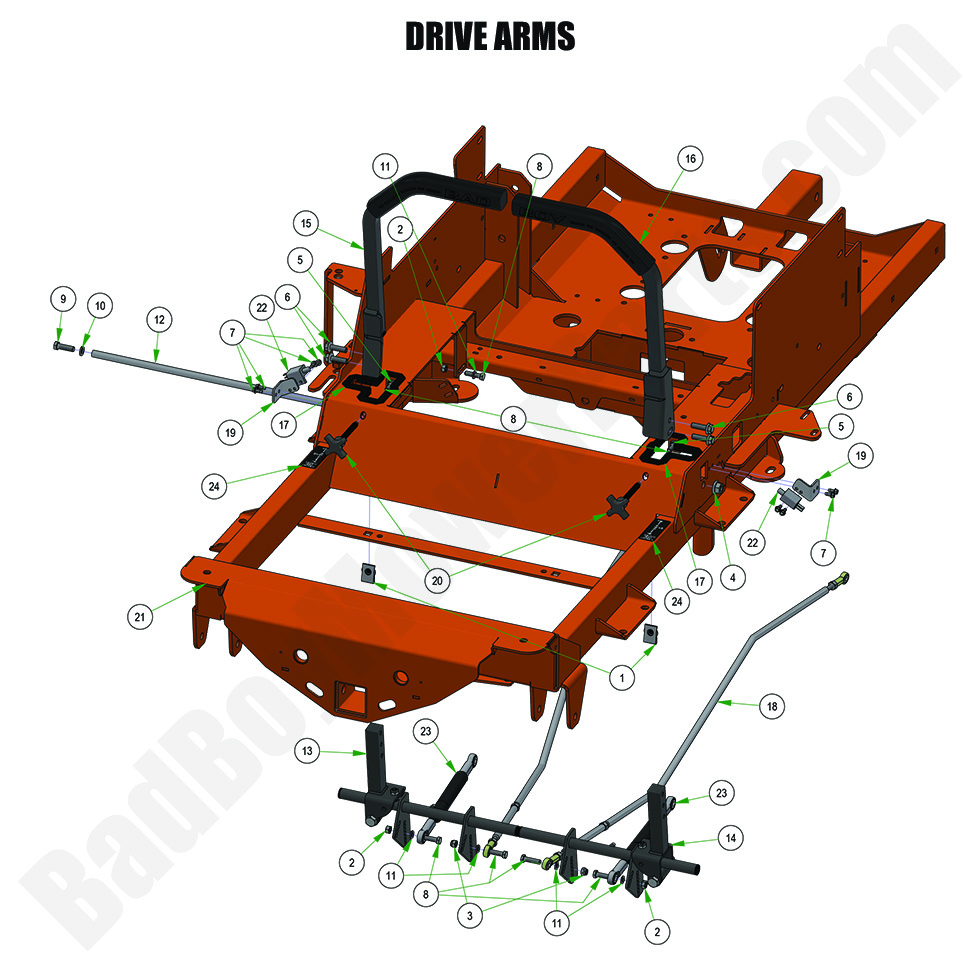

2024 Renegade - Diesel - Drive Arms
  Position Number SKU Product Title Price
1 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
2 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
3 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99

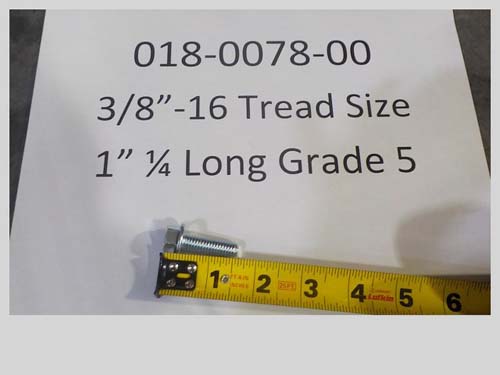

6 018-0078-00 018-0078-00 - 3/8"-16 Thread Size, 1" 1/4 Long
$2.99
7 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
8 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
9 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
12 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
13 031-0030-24 031-0030-24 - 2024 R Series RH Arm Rod Assembly
$96.29
14 031-0031-24 031-0031-24 - 2024 R Series LH Arm Rod Assembly
$96.29

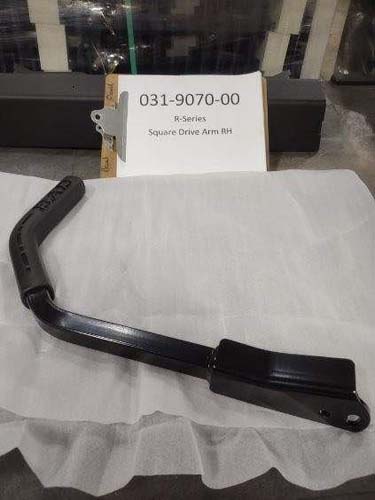

15 031-9070-00 031-9070-00 - R-Series Square Drive Arm RH Assembly
$129.99

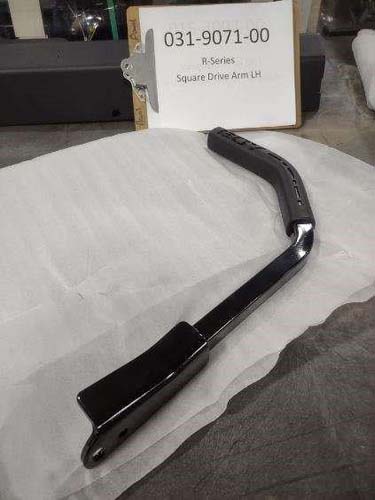

16 031-9071-00 031-9071-00 - R-Series Square Drive Arm LH Assembly
$129.99
17 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55
18 035-0005-00 035-0005-00 - Push Rod Assembly 2019-2025 Renegade
$46.84
19 039-2160-00 039-2160-00 - Arm Switch Bracket (See Models Used On For More Detail)
$13.90
20 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
22 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
23 087-0002-00 087-0002-00 - Steering Rod Damper With Spherical Rod Ends For Renegade/Rogue (See Models Used On For Details)
$62.46
24 091-1114-00 091-1114-00 - 2018-2022 LH/RH Steering Control Decal Roll
$15.60
