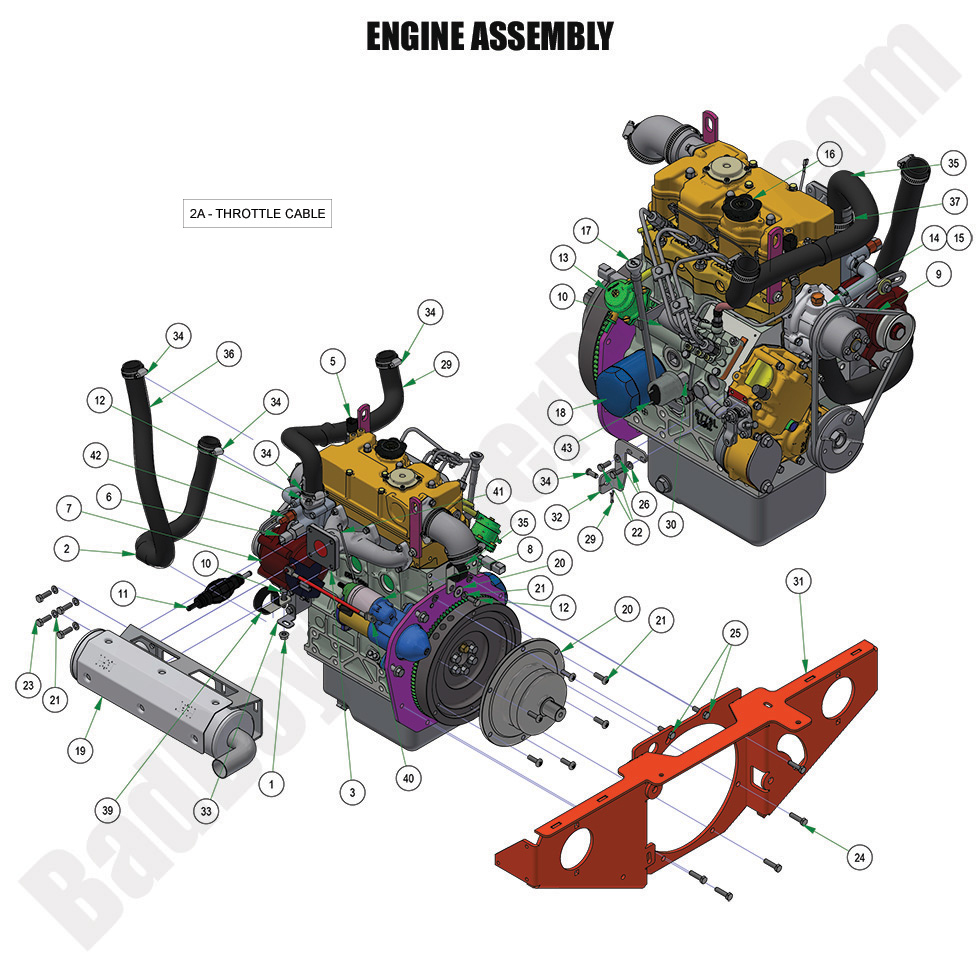

2024 Renegade - Diesel - Engine Assembly

2024 Renegade - Diesel - Engine Assembly

The 2024 Renegade - Diesel Engine Assembly is the heart of your mower, providing the power needed to tackle tough tasks. At BadBoyMowerParts.com, we carry a wide selection of Bad Boy Mower Parts for the 2024 Renegade - Diesel Engine Assembly. Whether you’re in need of a complete engine assembly or individual engine components, we have the right parts for the job. Our Bad Boy Mower Part Diagrams make it easy to locate the exact parts you need for a flawless repair. With a full range of Bad Boy Lawn Mower Parts available, we make it easy to keep your engine running at its peak performance. Shopping Bad Boy Parts Online is simple and fast, so you can get back to mowing in no time. Plus, with Free Shipping On Orders Over $100, you’ll save money while keeping your 2024 Renegade - Diesel running like new.

Bad Boy Mower Parts Lookup

2024 Renegade - Diesel - Engine Assembly
  Position Number SKU Product Title Price
1A 015-0097-00 015-0097-00 - 24.7HP Perkins Engine, 403J-11 No Longer Available
Obsolete.
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2A 055-8018-75 055-8018-75 - Diesel Thottle Cable ONLY
$32.09
2 014-1053-00 014-1053-00 - Plastic Mesh Hose Loom
$9.89
3 015-0010-50 015-0010-50 - 35/28 CAT Muffler Gasket
$17.02
6 015-0096-07 015-0096-07 - Coolant Temperature Sensor for the Perkins 1100cc Diesel
$212.99
7 015-0096-09 015-0096-09 - Alternator for the Perkins 1100cc Diesel
$829.99
8 015-0096-06 015-0096-06 - Oil Pressure Sensor for the Perkins 1100cc Diesel
$125.99
9 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
10 015-0097-03 015-0097-03 - Fuel Shutoff Solenoid for 015-0097-00
$235.99
10 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
11 015-0097-04 015-0097-04 - Fuel Priming Bulb Pump for 015-0097-00
$103.78
12 015-0097-09 015-0097-09 - Water Pump w/Gasket for 015-0097-00
$249.99
12 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
13 015-0097-08 015-0097-08 - Fuel Lift Pump for 015-0097-00
$229.99
16 015-0097-11 015-0097-11 - Oil Filler Cap for 015-0097-00
$21.39
17 015-0097-12 015-0097-12 - Oil Level Dipstick for 015-0097-00
$53.49
18 063-2010-01 063-2010-01 - Perkins Oil Filter
$29.37
19 015-1019-00 015-1019-00 - 2019-2024 Renegade Diesel Muffler Catalytic# MUF1693
$175.99
20 017-3001-00 017-3001-00 - 2019-2024 Renegade Diesel Stub Shaft Double V
$150.99
20 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
21 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29
21 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
23 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99
25 018-5320-00 018-5320-00 - M8 x 1.25 x 30MM Hex Head Bolt
$2.99
26 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
29 020-2000-00 020-2000-00 - 3/32 X 1/2 Cotter Pins Zinc
$2.99
29 051-3003-00 051-3003-00 - Diesel Radiator Hose-Upper
$49.63
30 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
31 026-8050-00 026-8050-00 - 2020 Diesel Pump Plate Weldment
$90.94
32 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49
33 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
34 044-2006-00 044-2006-00 - 1/4 X 5/8 Clevis Pin
$2.99
34 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82
35 072-5000-00 072-5000-00 - Diesel Hydraulic Hose Clamp
$7.28
39 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
40 086-0003-00 086-0003-00 - Alternator to Starter Cable
$7.79
42 086-7003-00 086-7003-00 - Temperature Sender- 2012 Gauge
$31.17
