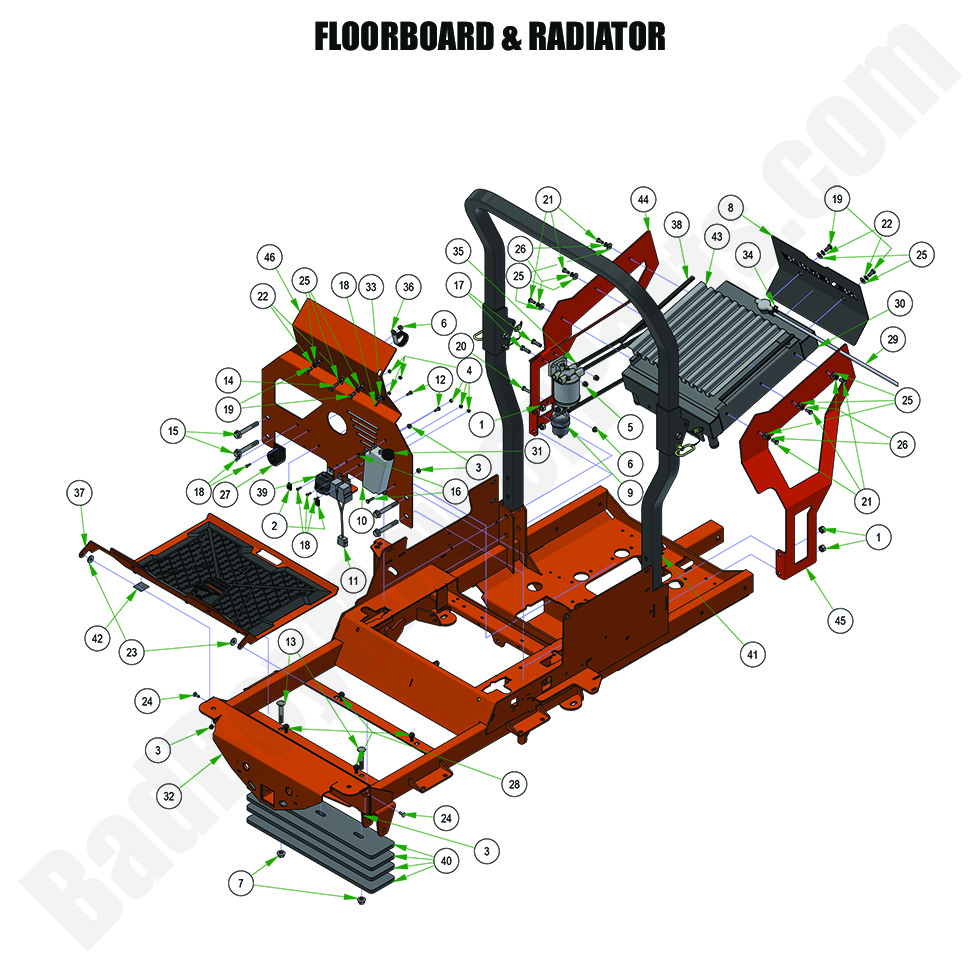

2024 Renegade - Diesel - Floorboard, ROPS & Radiator

2024 Renegade - Diesel - Floorboard, ROPS & Radiator

The 2024 Renegade - Diesel Floorboard, ROPS & Radiator is an essential part of your mower, providing safety and comfort while helping to regulate the engine's temperature. At BadBoyMowerParts.com, we offer a comprehensive selection of Bad Boy Mower Parts for the 2024 Renegade - Diesel Floorboard, ROPS & Radiator, ensuring that you can replace worn or damaged parts with ease. Our Bad Boy Mower Part Diagrams provide clear guidance on locating and identifying the correct parts for your mower model. Whether you're replacing the floorboard or radiator or upgrading the ROPS, we have everything you need. With a variety of Bad Boy Lawn Mower Parts available, you can count on us for durable, high-quality components. Shopping Bad Boy Parts Online is quick and convenient, and with Free Shipping On Orders Over $100, you’ll save money while ensuring your 2024 Renegade - Diesel remains in excellent working condition.

Bad Boy Mower Parts Lookup

2024 Renegade - Diesel - Floorboard, ROPS & Radiator
  Position Number SKU Product Title Price
1 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
2 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
3 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
4 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
5 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 015-0097-00 015-0097-00 - 24.7HP Perkins Engine, 403J-11 No Longer Available
Obsolete.
10 015-0111-00 015-0111-00 - Overflow Reservoir-27 Kaw
$74.89
11 015-0129-00 015-0129-00 - Diesel Relay Auto Shut Down Assembly
$299.99
12 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
13 018-0067-00 018-0067-00 - 1/2-13 x 3 Carriage Bolt
$3.29
14 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
15 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
16 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
17 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
18 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
19 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
20 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
21 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
22 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
23 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
24 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
25 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
26 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
27 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
28 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
30 061-5001-98 061-5001-98 - 2019 Diesel Radiator Kit No Longer Available
Obsolete.
31 066-8075-00 066-8075-00 - Reservoir Tank Cap-Overflow Tank
$6.48
33 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
34 072-8067-00 072-8067-00 - 5/8 Hose Clamp SS
$2.99
35 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
36 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
38 084-4015-00 084-4015-00 - Rubber Trim
$10.99
39 086-0247-20 086-0247-20 - Wiring Harness (See Models Used On For Detail)
$509.41
40 088-1999-00 088-1999-00 - Outlaw Counter Weight (See Models Used On For Details)
$74.99
41 089-0006-00 089-0006-00 - 2019-2024 2x2 R SERIES Outlaw Folding Rops Femco # SIP3980
$836.43
42 091-0020-22 091-0020-22 - Anti-Wobble Patent Decal
$2.99
43 094-5088-00 094-5088-00 - Radiator Screen Diesel
$129.99
44 201-8026-00 201-8026-00 - 2019 Diesel Radiator Mount-Right
$42.79
45 201-8027-00 201-8027-00 - 2019 Diesel Radiator Mount-Left
$43.86
