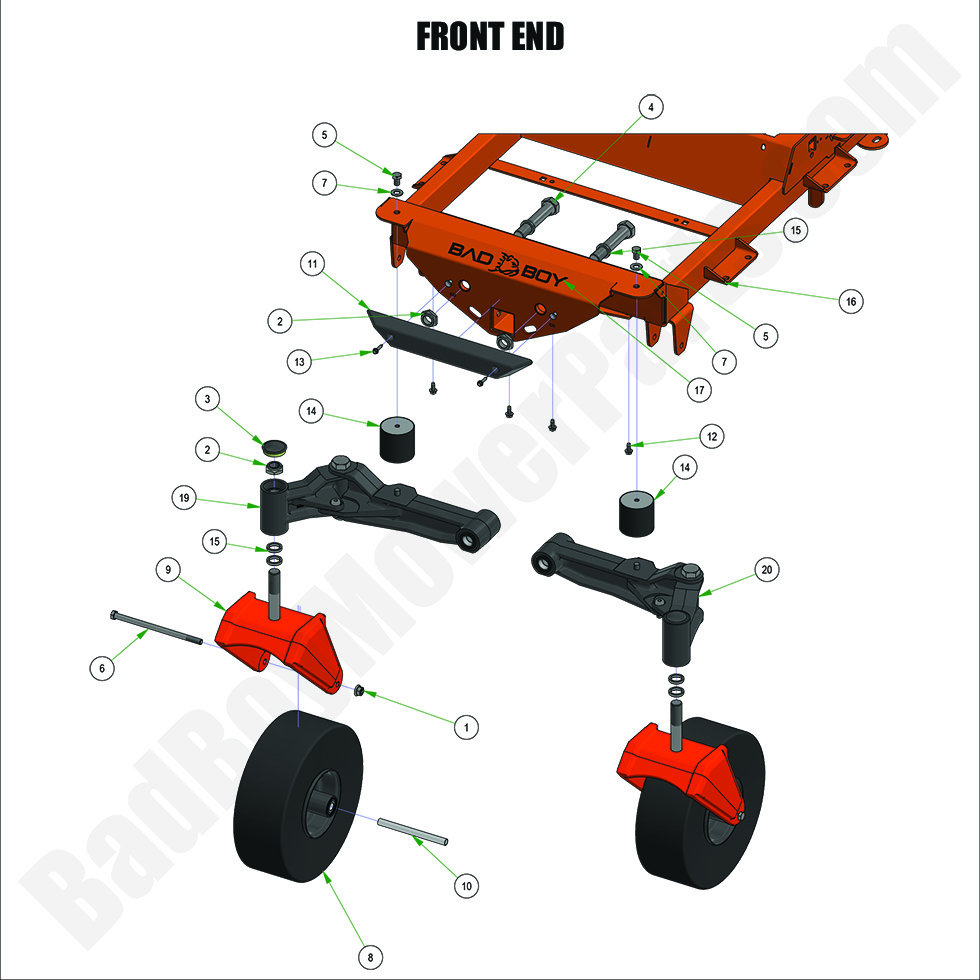

2024 Renegade - Diesel - Front End

2024 Renegade - Diesel - Front End

The 2024 Renegade - Diesel Front End plays a vital role in the mower's maneuverability and stability. At BadBoyMowerParts.com, we stock a wide range of Bad Boy Mower Parts for the 2024 Renegade - Diesel Front End, ensuring you can easily replace or repair any components that need attention. Our detailed Bad Boy Mower Part Diagrams help you identify the exact parts you need to maintain your mower's front end. Whether you're replacing the axle, steering, or other front-end parts, we have the right solution. Our selection of Bad Boy Lawn Mower Parts includes everything necessary to keep your mower operating smoothly. When you shop Bad Boy Parts Online, you can conveniently place orders for all your mower’s needs. Plus, enjoy Free Shipping On Orders Over $100 to make your purchases even more affordable. Keep your 2024 Renegade - Diesel in top condition with the right parts!

Bad Boy Mower Parts Lookup

2024 Renegade - Diesel - Front End
  Position Number SKU Product Title Price
1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
2 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
3 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
4 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
5 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
6 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
7 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
8 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
9 023-0004-20 023-0004-20 2021-2024 R Series Cast Front Fork
$179.99
10 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
11 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
12 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
13 030-7047-00 030-7047-00 - 1/4-14 x 1 1/4 HWA Unslot Tek Screw
$2.99
14 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
15 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
17 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
19 250-0032-03 250-0032-03 - 2022 61/ 72 Rogue/Renagade Front Suspens
$279.99
20 250-0033-03 250-0033-03 - 2022 61/72 Rogue/Renegade Front Suspensi
$279.99
