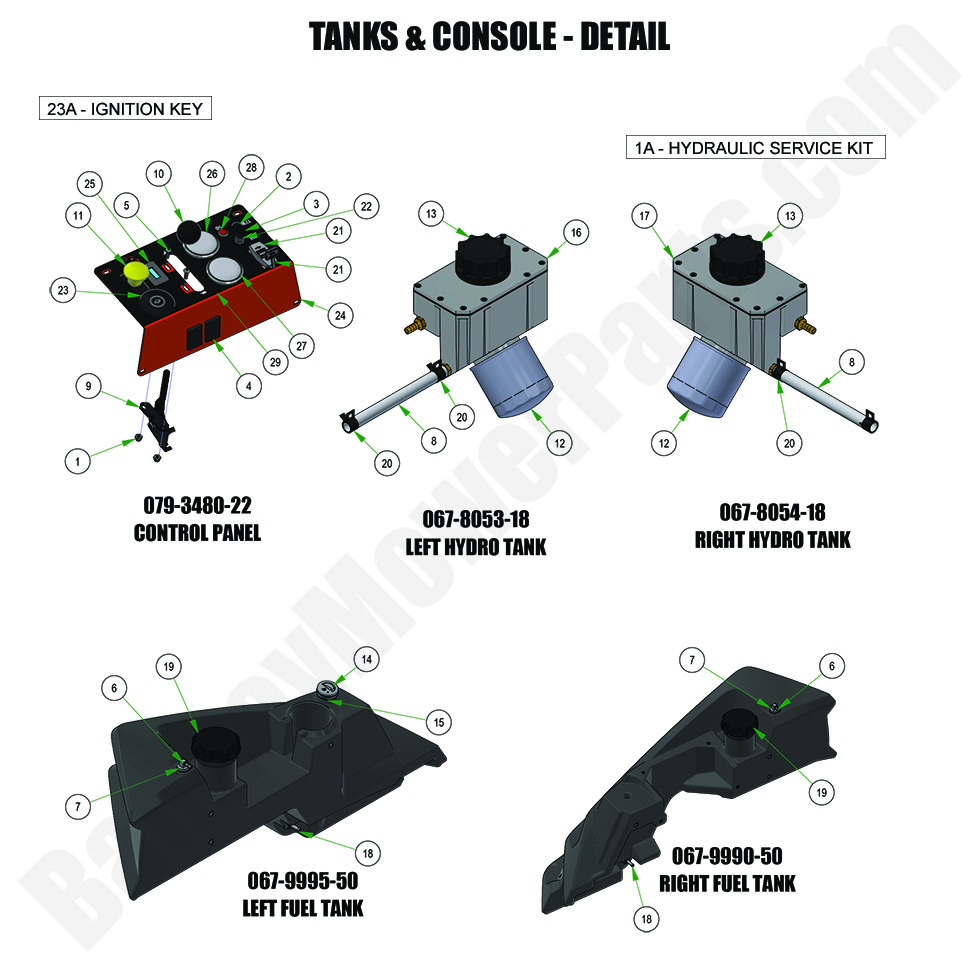

2024 Renegade - Diesel - Tanks & Console - Detail

2024 Renegade - Diesel - Tanks & Console - Detail

The 2024 Renegade - Diesel Tanks & Console - Detail is an important feature of your mower, responsible for both the fuel storage and control systems. At BadBoyMowerParts.com, we carry a wide range of Bad Boy Mower Parts for the 2024 Renegade - Diesel Tanks & Console - Detail, making it simple to replace or repair this essential component. Our Bad Boy Mower Part Diagrams provide detailed visuals that help you locate and identify the parts you need to maintain or fix your mower’s fuel system. Whether you’re replacing the fuel tank or working on the console components, we offer high-quality Bad Boy Lawn Mower Parts that meet or exceed OEM specifications. Shopping Bad Boy Parts Online is straightforward and secure, and with Free Shipping On Orders Over $100, you can save on delivery costs. Keep your 2024 Renegade - Diesel in peak condition with premium parts from our store.

Bad Boy Mower Parts Lookup

2024 Renegade - Diesel - Tanks & Console - Detail
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99

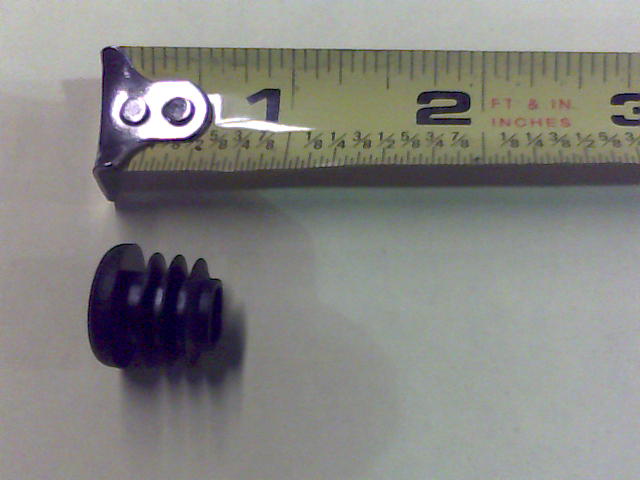

2 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99

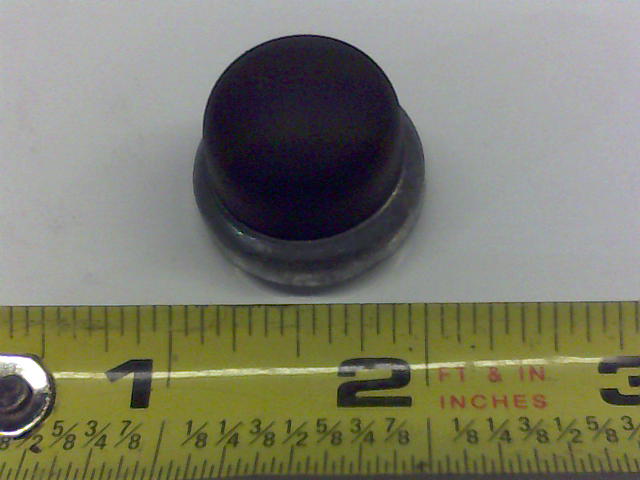

3 014-6000-00 014-6000-00 - Start Switch Boot - Diesel
$6.59
4 018-1040-00 018-1040-00 - Light Plug
$2.99
6.0 067-9995-50 067-9995-50 - Right Outlaw Renegade Diesel Fuel Tank
$261.99
6.1 067-9990-50 067-9990-50 - Left Outlaw Renegade Diesel Fuel Tank
$259.99

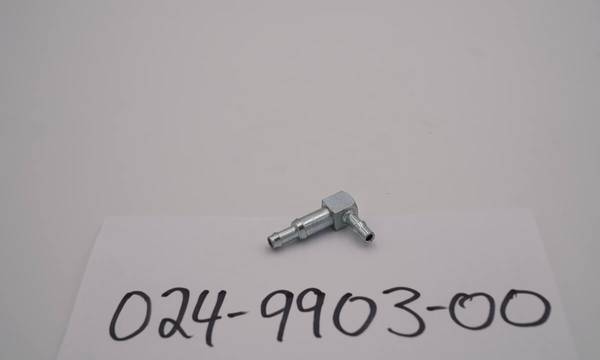

6 024-9903-00 024-9903-00 - 90 Degree Elbow Fitting for 2019-2024 Renegade Diesel Fuel Tank
$8.79

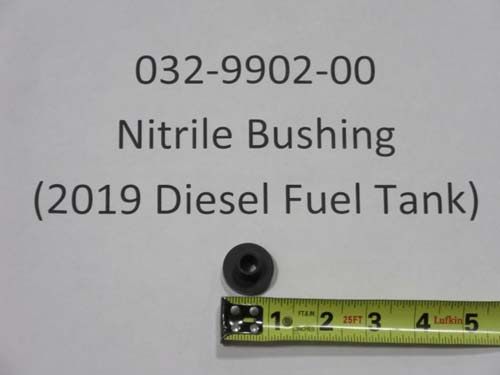

7 032-9902-00 032-9902-00 - Nitrile Bushing for 2019-2024 Renegade Diesel Fuel Tank
$4.39

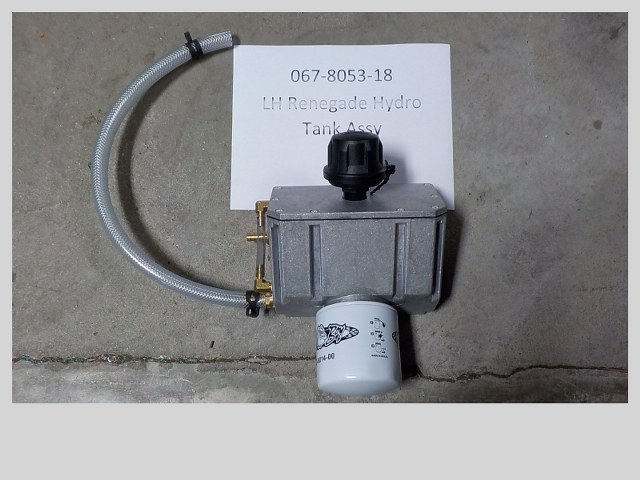

8.0 067-8053-18 067-8053-18 - LH Renegade Hydro Tank Assy
$201.96

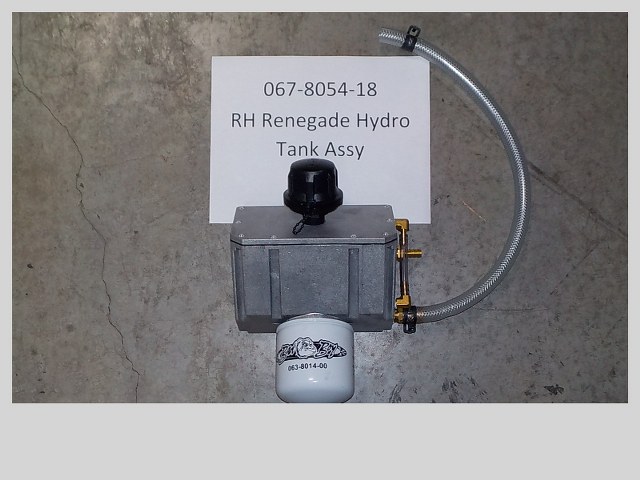

8.1 067-8054-18 067-8054-18 - RH Renegade Hydro Tank Assy
$201.96
8 051-8064-21 051-8064-21 - 21" 1/2 Braided Hose
$11.34
9 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
10 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
11 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
12 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
13 066-8050-22 066-8050-22 - Cap With Dip Stick
$29.95
14 067-4080-00 067-4080-00 - Fuel Gauge (See Models Used On For Details)
$32.09
15 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
16 067-8053-00 067-8053-00 - Hydro Tank LH (See Models Used On For Details)
$150.99
17 067-8054-00 067-8054-00 - Hydro Tank RH 2019-2022 Renegade & Rogue
$149.99
18 067-9901-00 067-9901-00 - Bulkhead Fitting for Fuel Tanks 2019-2025 Rebel, Renegade & Rogue
$22.71
19 067-9905-00 067-9905-00 - Diesel Fuel Tank Cap for 2019 - 2024 Fuel Tank
$32.09
20 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
21 077-2076-00 077-2076-00 - USB Port
$46.84

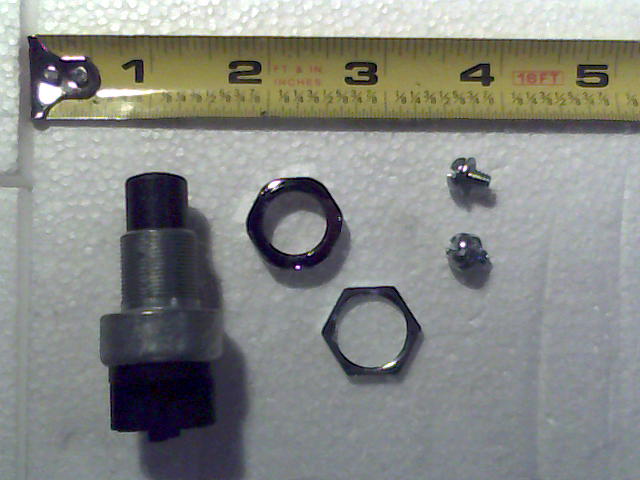

22 077-6000-00 077-6000-00 - Momentary Start Switch Preheat Button for Diesel
$21.39
23A 042-9000-00 042-9000-00 - Ignition Key
$4.06
23 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
24 079-3480-00 079-3480-00 - Control Panel
$10.99
25 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
26 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge (See Models Used On For Details)
$100.71
27 086-7001-00 086-7001-00 - 2" Water Temperature Gauge (See Models Used On For Details)
$100.71
28 089-1000-00 089-1000-00 - Oil Light
$12.63
29 091-4016-22 091-4016-22 - 2022 Renegade(Diesel) Control Panel Deca
$10.88
