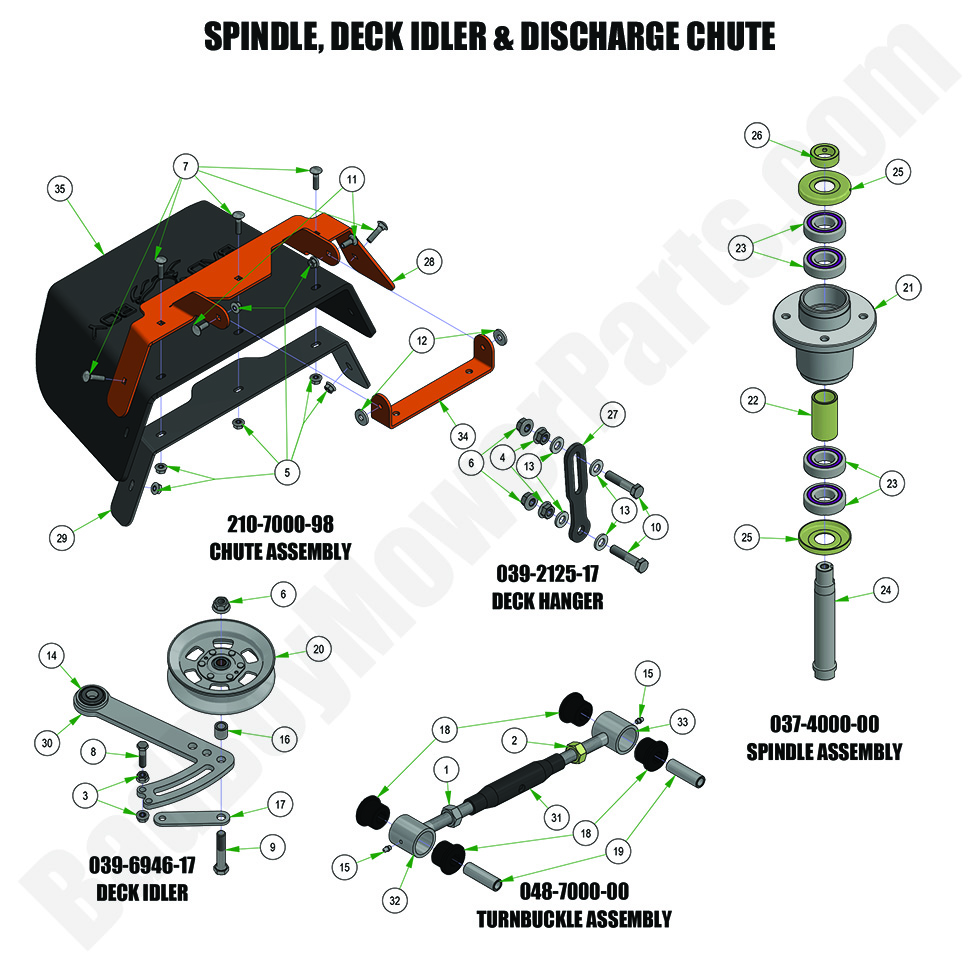

2024 Renegade - Diesel - Spindle, Idler, Turnbuckle & Chute

2024 Renegade - Diesel - Spindle, Idler, Turnbuckle & Chute

The 2024 Renegade - Diesel Spindle, Idler, Turnbuckle & Chute is a critical assembly that ensures the mower deck operates smoothly and efficiently. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts for the 2024 Renegade - Diesel Spindle, Idler, Turnbuckle & Chute, allowing you to replace or repair these important components with ease. Our Bad Boy Mower Part Diagrams provide clear illustrations to help you find the right parts for your mower model. Whether you need to replace the spindle, idler, or chute, we carry high-quality Bad Boy Lawn Mower Parts that ensure reliable performance. Shopping Bad Boy Parts Online is quick and convenient, and with Free Shipping On Orders Over $100, you’ll enjoy significant savings while maintaining your 2024 Renegade - Diesel in top condition. Get all the necessary parts to keep your mower deck running smoothly with our online store.

Bad Boy Mower Parts Lookup

2024 Renegade - Diesel - Spindle, Idler, Turnbuckle & Chute
  Position Number SKU Product Title Price
1.0 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24

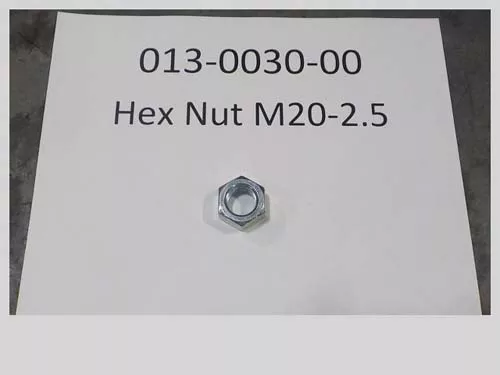

1 013-0030-00 013-0030-00 - Hex Nut M20-2.5 No Longer Available
Obsolete.

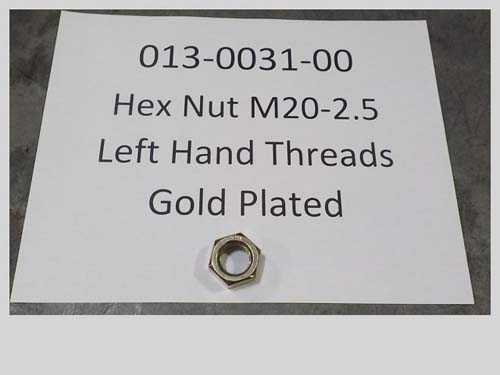

2 013-0031-00 013-0031-00 - Hex Nut M20-2.5 Left Hand Thread No Longer Available
Obsolete.
3.0 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4.0 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
4 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
5.0 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
8 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
9 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
10 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
11 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
12 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
13 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
14 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
15 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
16 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
17 026-0167-00 026-0167-00 - Belt Tensioner Retainer Plate 2019-2022 Rebel, Renegade & Rogue
$26.74
18 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
19 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
20 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
21.0 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
22 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
23 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
24 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
25 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
26 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
27 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
28 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84
29 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72

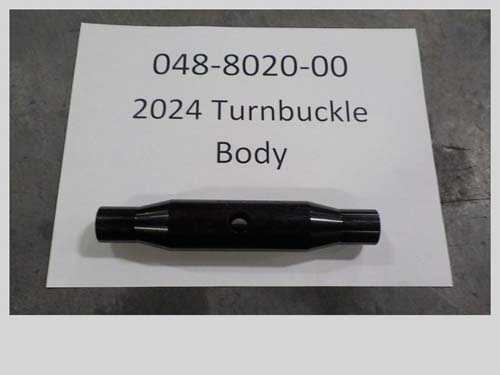

31 048-8020-00 048-8020-00 - 2024 Turnbuckle Body (obsolete)
use part #048-8000-00
$80.24

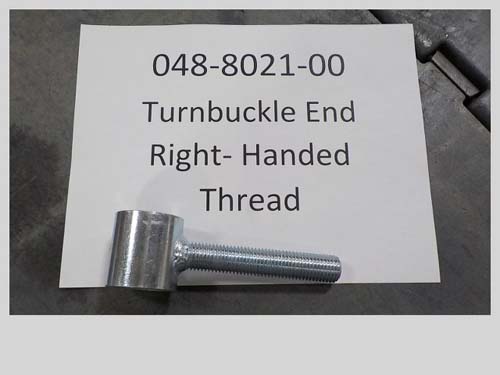

32 048-8021-00 048-8021-00 - Turnbuckle End Right-Handed Thread (obsolete)
use part #048-8000-00
$80.24
33 048-8022-00 048-8022-00 - Turnbuckle End Left-Handed Thread (obsolete)
use part #048-8000-00
$80.24
34 206-6018-00 206-6018-00 - Chute Hanger 2019-2025 Rebel, Revolt, Renegade & Rogue
$9.67
35 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-& Up Rebel, Revolt, Renegade & Rogue
$62.40
