2024 Renegade - Gas - 61" Deck Assembly

2024 Renegade - Gas - 61" Deck Assembly

The 2024 Renegade - Gas 61" Deck Assembly provides the ideal cutting width for large lawns, ensuring a clean, precise cut every time. At BadBoyMowerParts.com, we carry the necessary Bad Boy Mower Parts to maintain or replace components of the 2024 Renegade - Gas 61" Deck Assembly. Our Bad Boy Mower Part Diagrams offer clear illustrations of the deck assembly and all its parts, making it easy to identify what needs replacement. We stock a variety of Bad Boy Lawn Mower Parts, including spindles, pulleys, and belts, designed to fit your mower’s deck. Shopping Bad Boy Parts Online is simple and secure, allowing you to find the exact parts you need with ease. Plus, we offer Free Shipping On Orders Over $100, so you can get your parts quickly and affordably. Keep your 2024 Renegade - Gas cutting edge with our premium deck components.

Bad Boy Mower Parts Lookup

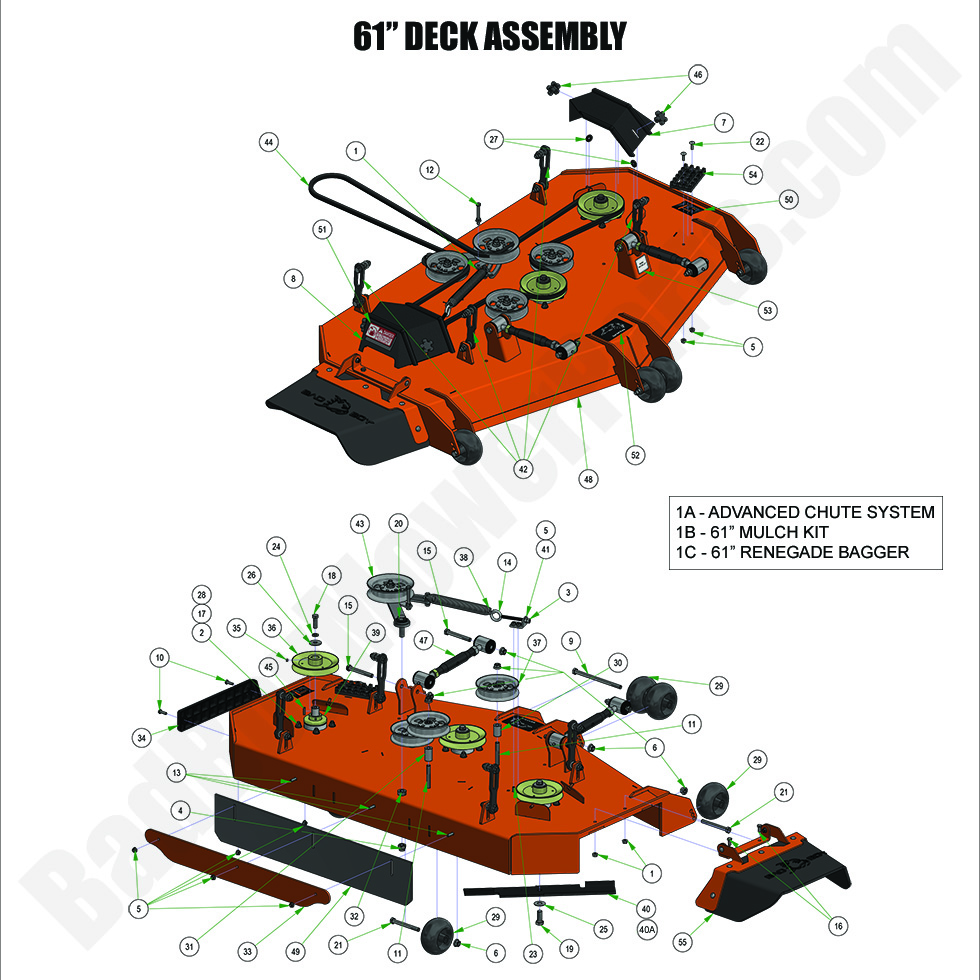

2024 Renegade - Gas - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
1C 092-4008-23 092-4008-23 Top Discharge Bagger (2019-2025 61" Renegade)
$2799.99
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5052-00 014-5052-00 - 61" Left Deck Pulley Cover - Rebel, Renegade & Rogue
$17.86
8 014-5053-00 014-5053-00 - 61" Right Deck Pulley Cover 2019-& Up Rebel, Renegade & Rogue
$17.86
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
13 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
14 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
15 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
16 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
17 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
21 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
22 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
23 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
24 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
27 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
28 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
29 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
30 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
31 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
32 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
33 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
34 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
35 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
36 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
37 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
38 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
39 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
40A 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
40 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
41 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
42 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
43 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
44 041-0222-00 041-0222-00 - B222 Deck Belt for 60" 28hp/1100cc Diesels (Not AOS Diesels) & 61" Renegade Gas/Diesel
$122.06
45 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
46 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
47 048-8000-00 048-8000-00 Turnbuckle Assembly (obsolete)
use part #048-9000-00
$80.24
48 060-6151-19 060-6151-19 - 61" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
49 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
50 091-0506-00 091-0506-00 - MY24 61" Deck Decal
$9.89
51 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
52 091-4033-00 091-4033-00 - 2019-2022 Renegade Deck Belt Route Decal
$9.61
53 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
54 099-7000-00 099-7000-00 - Deck Step Assembly (See Models Used On For Details)
$53.49
55 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
