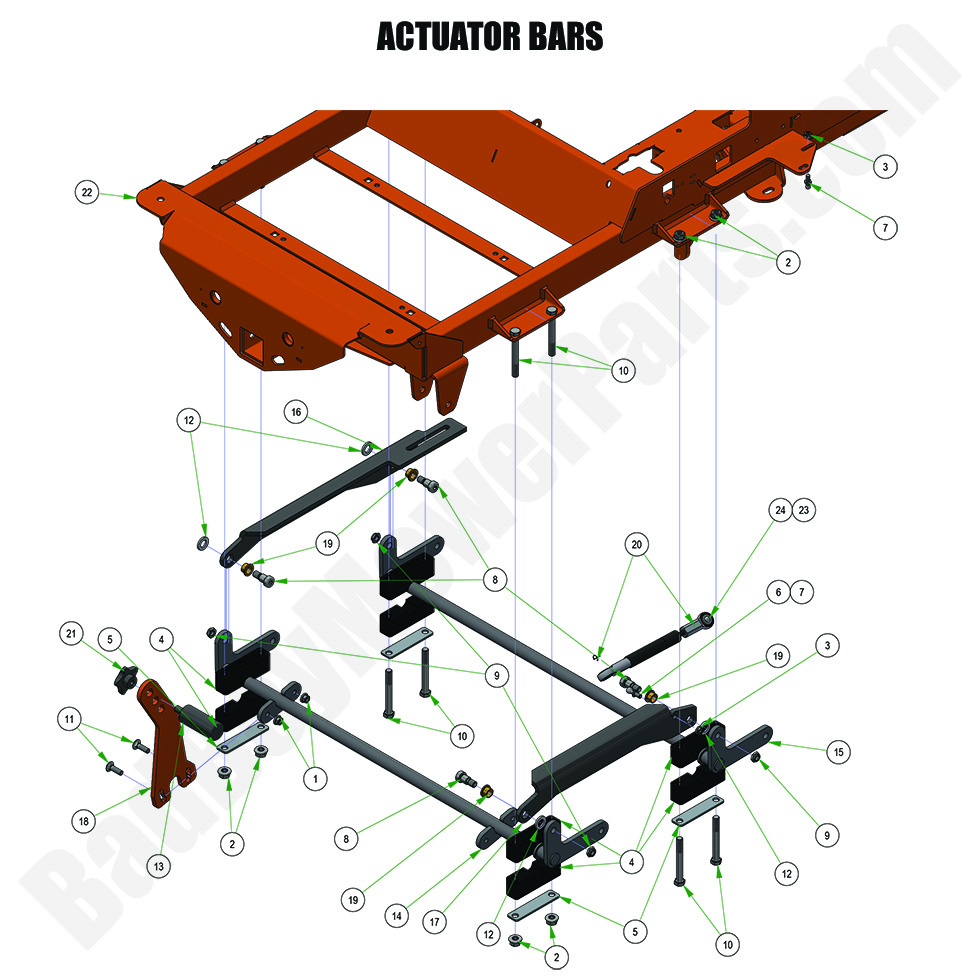

2024 Renegade - Gas - Actuator Bars

2024 Renegade - Gas - Actuator Bars

The 2024 Renegade - Gas Actuator Bars are vital components for controlling deck height adjustments, ensuring smooth and precise operations. At BadBoyMowerParts.com, we provide all the Bad Boy Mower Parts needed for the 2024 Renegade - Gas Actuator Bars, so you can keep your mower running smoothly. Our Bad Boy Mower Part Diagrams provide detailed images to help you identify the specific actuator bar parts you need. From replacements to upgrades, we carry a variety of Bad Boy Lawn Mower Parts that fit your mower’s specifications. With the convenience of shopping Bad Boy Parts Online, you can find the right parts quickly and easily. Plus, with Free Shipping On Orders Over $100, you can save on delivery fees while ensuring your mower is always in top condition. Keep your 2024 Renegade - Gas Actuator Bars functioning like new with high-quality parts from our store.

Bad Boy Mower Parts Lookup

2024 Renegade - Gas - Actuator Bars
  Position Number SKU Product Title Price
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
4 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
5 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
6 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
7 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
8 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
9 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
10 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
11 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
12 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
13 026-0026-00 026-0026-00 - Knurled Foot Pedal
$39.03
14 028-0026-00 028-0026-00 - Front Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$119.41
15 028-0027-00 028-0027-00 - Rear Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$82.38
16 028-6075-22 028-6075-22 - Actuator Linkage-Right
$43.86
18 031-0003-00 031-0003-00 - Foot Lift Upright Lever
$17.11
19 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
20 044-6050-00 044-6050-00 - Security Ring - PC744
$2.99
21 045-6044-00 045-6044-00 - Foot Pedal Knob 1/2-13
$12.48
22 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
23 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
24 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
