2024 Renegade - Gas - Pump & Idler Assembly

2024 Renegade - Gas - Pump & Idler Assembly

The 2024 Renegade - Gas Pump & Idler Assembly is an important system that ensures the efficient operation of your mower’s powertrain. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts to replace or repair the 2024 Renegade - Gas Pump & Idler Assembly. Our detailed Bad Boy Mower Part Diagrams make it easy to locate the right parts for your pump and idler system. We carry only high-quality Bad Boy Lawn Mower Parts that are designed for durability and optimal performance. When you shop Bad Boy Parts Online, you can conveniently find all the parts you need in one place. Don’t forget to take advantage of Free Shipping On Orders Over $100 to get your mower’s 2024 Renegade - Gas Pump & Idler Assembly parts delivered straight to your door without extra shipping charges.

Bad Boy Mower Parts Lookup

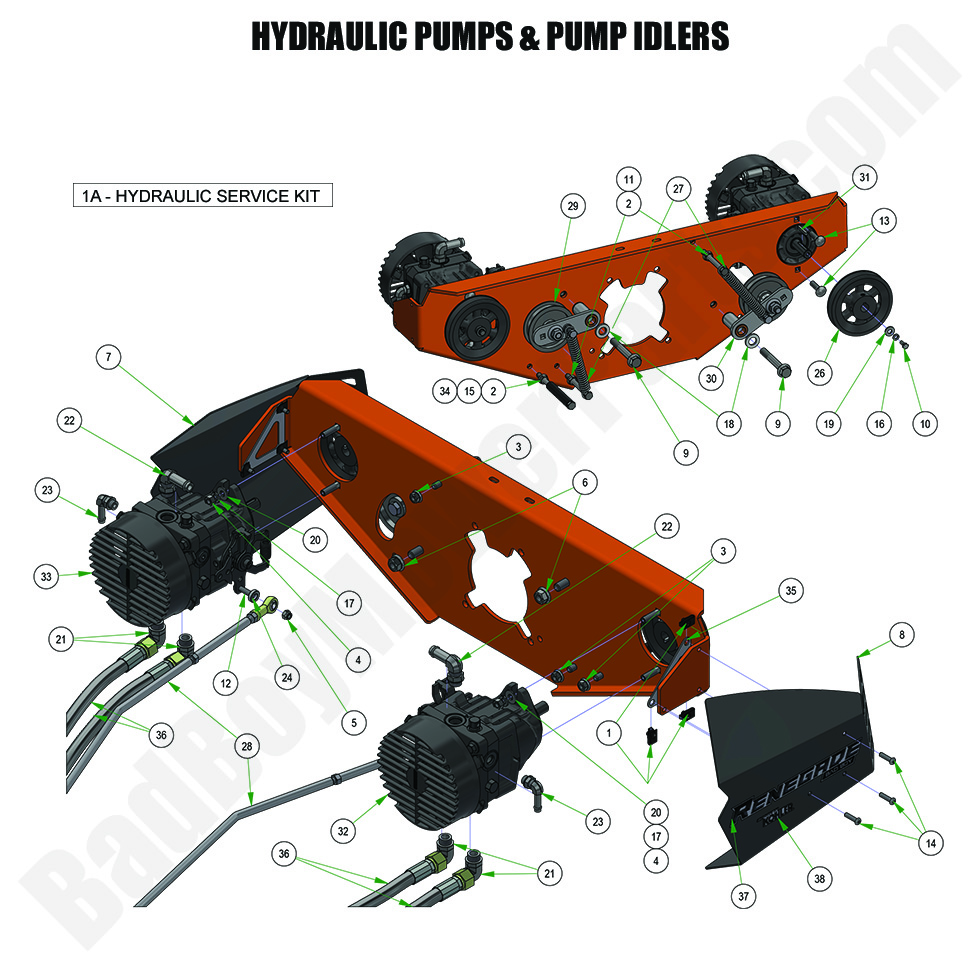

2024 Renegade - Gas - Pump & Idler Assembly
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
5 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

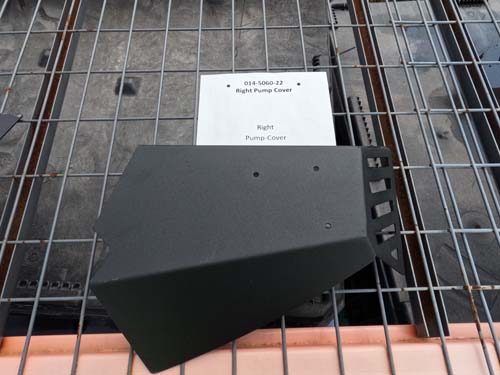

7 014-5060-22 014-5060-22 Pump Cover-RH-Black
$21.39

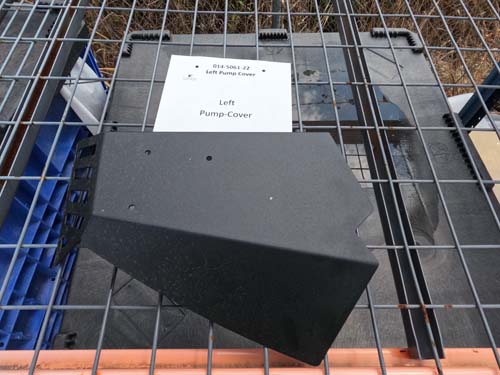

8 014-5061-22 014-5061-22 Pump Cover-LH-Black (See Models Used On For Details)
$32.09
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
11 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
12 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
13 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99

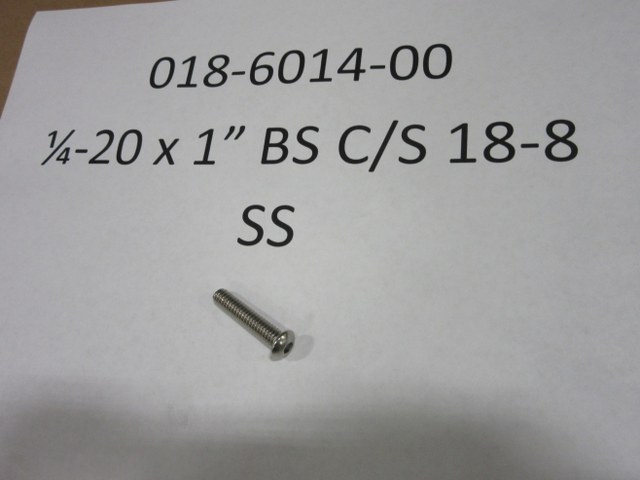

14 018-6014-00 018-6014-00 - 1/4-20 x 1" BS C/S 18-8 SS
$5.82
15 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
16 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
17 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
18 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
19 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
20 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
21 024-2052-00 024-2052-00 - 2019-2022 Renegade Horizontal Pump Fitting 90 Degree # 6801-10-8
$12.48
22 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
23 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
24 025-2001-00 025-2001-00 - ACS Spacer 3/4x3/8x1/4
$15.60
26 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48

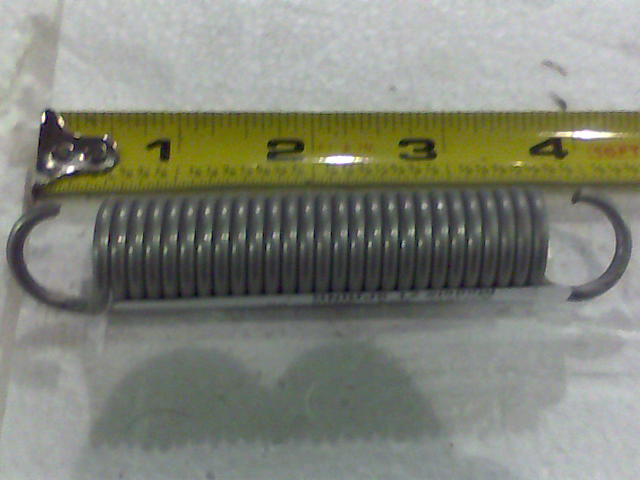

27 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
28 035-0005-00 035-0005-00 - Push Rod Assembly 2019-2025 Renegade
$46.84
29 039-6950-98 039-6950-98 - 2020-2025 Renegade Gas Belt Tensioner LH
$85.17
30 039-6950-99 039-6950-99 - 2020-2022 Renegade Gas Belt Tensioner RH
$85.17

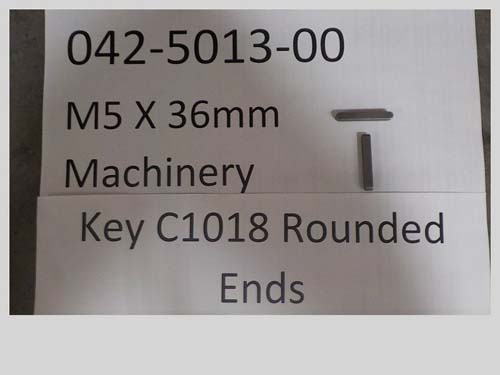

31 042-5013-00 042-5013-00 - M5 X 36MM Square Machinery Key C1018 ROUNDED ENDS
$2.99
32 050-3001-00 050-3001-00 - Rogue/Renegade Left Pump 16cc Hydro-Gear# PR-2KCC-GB1C-XXXX (See Models Used On For Details)
$699.99

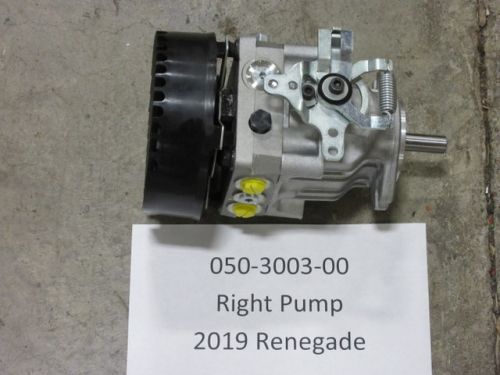

33 050-3003-00 050-3003-00 - 2019-2024 Renegade Right Pump 16cc Hydro-Gear # PR-2HCC-GA1C-XXXX
$649.99

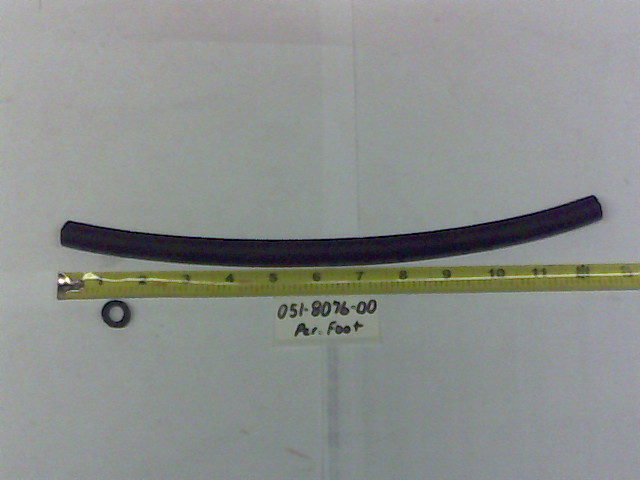

34 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59

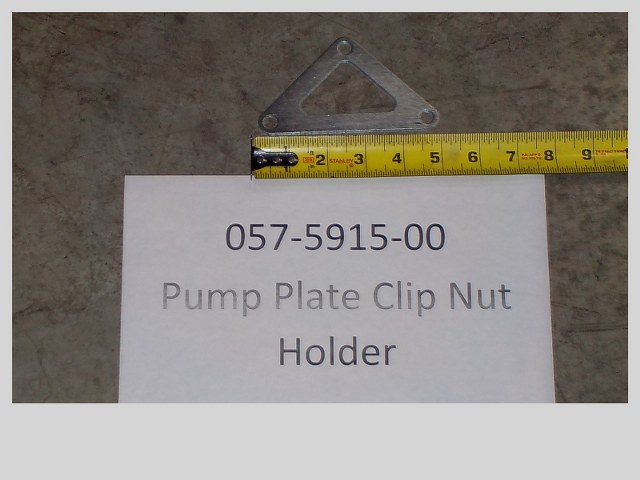

35 057-5915-00 057-5915-00 - Pump Plate Clip Nut Holder
$17.11
36 051-6007-00 051-6007-00 - 2019-& Up Renegade Hydro Hose
$54.64
38 091-4004-22 091-4004-22 - Powered by Kohler Decal
$6.04
