2024 Renegade - Gas - Battery & Rear Cover

2024 Renegade - Gas - Battery & Rear Cover

The 2024 Renegade - Gas Battery & Rear Cover is essential for protecting the battery and ensuring that your mower runs efficiently. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts for the 2024 Renegade - Gas Battery & Rear Cover, helping you keep this crucial system in top shape. Our Bad Boy Mower Part Diagrams give you detailed views of the battery and rear cover assembly, making it easy to locate and replace parts. Whether you need a new battery, rear cover, or other related components, we have everything you need in stock. Our selection of Bad Boy Lawn Mower Parts ensures that all parts meet or exceed OEM standards for quality and durability. Shopping Bad Boy Parts Online is simple and secure, and with Free Shipping On Orders Over $100, you can keep your 2024 Renegade - Gas running smoothly without breaking the bank.

Bad Boy Mower Parts Lookup

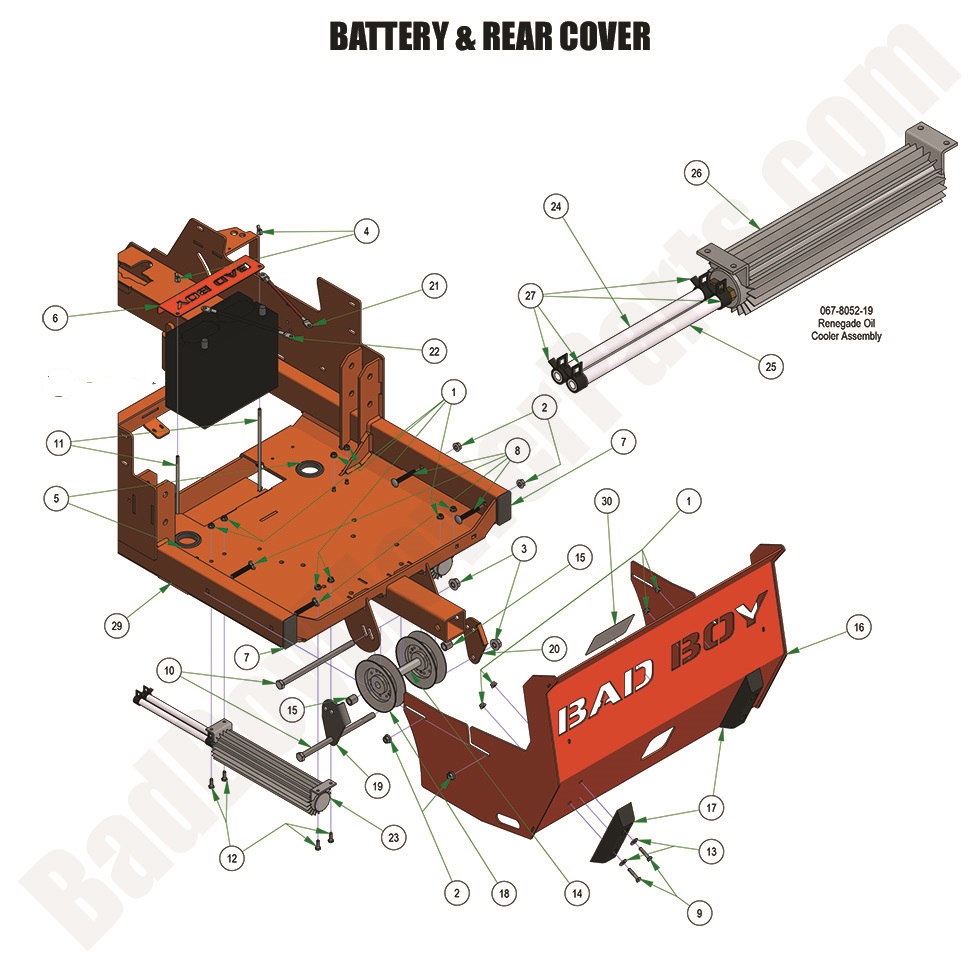

2024 Renegade - Gas - Battery & Rear Cover
  Position Number SKU Product Title Price
1A 067-8052-19 067-8052-19 - Renegade Oil Cooler-Assy
$70.97
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
5 014-2052-00 014-2052-00 - 2 x .25 Rubber Grommet (See Models Used On For Details)
$12.83
6 014-5063-00 014-5063-00 - Battery Hold Down Cover 2019-2025 Renegade
$10.99
7 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
8 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
9 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
10 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
11 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
12 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
13 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
14 025-0028-00 025-0028-00 - Pulley Spacer.75 x 4.375 x.5 ID 2019-2022 Renegade
$9.61
15 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29

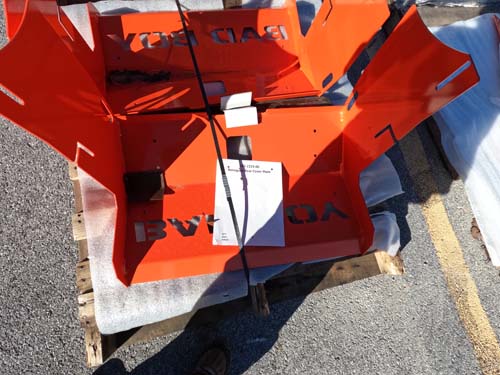

16 026-2224-00 026-2224-00 - Rear Side Cover 2019-2022 Renegade
$199.99
17 029-7038-00 029-7038-00 - 8 Bumper
$28.32
18 033-7027-00 033-7027-00 - Horizontal Rear V Pulley
$46.84

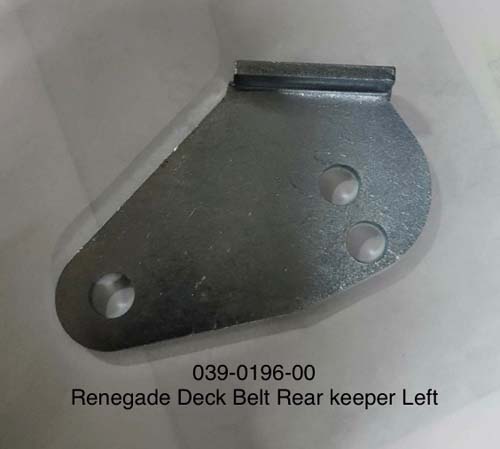

19 039-0196-00 039-0196-00 Rear Deck Belt Keep-LH-Plated
$2.99

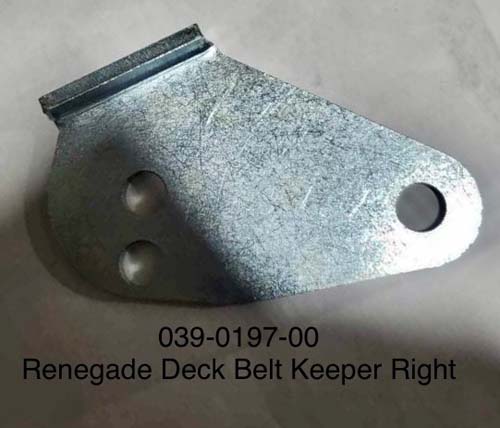

20 039-0197-00 039-0197-00 Rear Deck Belt Keep-RH-Plated
$2.99
21 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
22 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
24 051-8063-14 051-8063-14 - 14" 3/8 Clear Hose No Clamp
$6.04

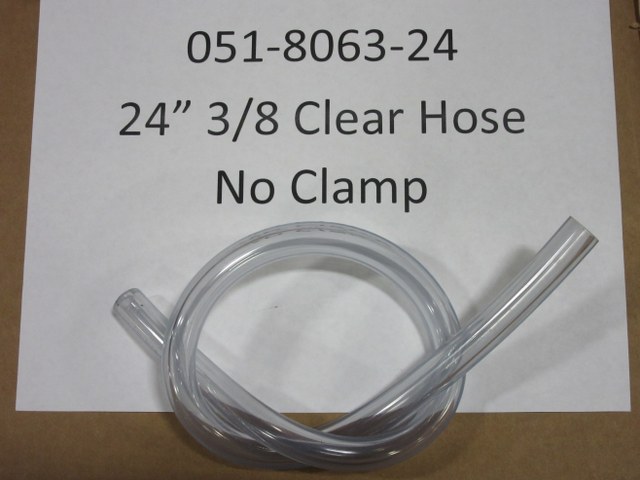

25 051-8063-24 051-8063-24 - 24" 3/8 Clear Hose No Clamps
$12.48
26 067-8052-00 067-8052-00 - 2019-2022 12" Oil Cooler With Fittings (See Models Used On For Details)
$62.46
27 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
29 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
30 091-4032-00 091-4032-00 - 2019-2022 Renegade Pump Belt Route Decal
$7.25
