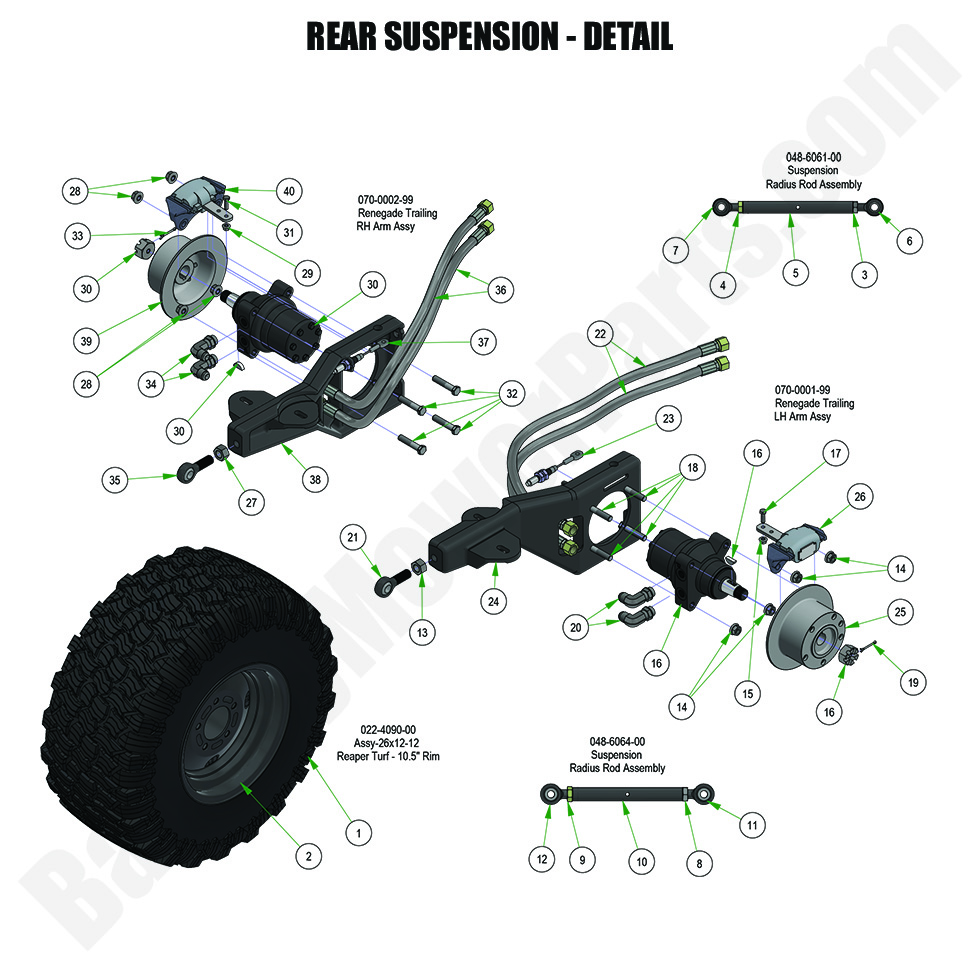

2024 Renegade - Gas - Rear Suspension Detail

2024 Renegade - Gas - Rear Suspension Detail

The 2024 Renegade - Gas Rear Suspension Detail is a critical aspect of your mower’s performance, ensuring a smooth ride and proper weight distribution. At BadBoyMowerParts.com, we offer a wide array of Bad Boy Mower Parts to maintain or replace components in the 2024 Renegade - Gas Rear Suspension Detail. Our Bad Boy Mower Part Diagrams help you navigate the specific parts you need for your suspension system. With Bad Boy Lawn Mower Parts, you can be confident that you are receiving durable, high-quality components designed to withstand daily wear and tear. Shopping Bad Boy Parts Online makes finding your parts fast and convenient, while Free Shipping On Orders Over $100 allows you to get the parts you need delivered at no extra charge, helping you keep your 2024 Renegade - Gas in top condition.

Bad Boy Mower Parts Lookup

2024 Renegade - Gas - Rear Suspension Detail
  Position Number SKU Product Title Price
1B 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
1E 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
1 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
2 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
3 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
4 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
5 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
6 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
7 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
9 013-0028-00 013-0028-00 - 3/4-16 LH Half Nut
$2.99
10 048-0002-00 048-0002-00 - Rear Radius Rod (3/4 Body) [Rogue, Reneg No Longer Available
Obsolete.
11 048-6065-00 048-6065-00 - 3/4 Body 5/8 Hole, Heim RH (See Models Used On For Details)
$42.58
12 048-6066-00 048-6066-00 - 3/4 Body 5/8 Hole, Heim LH (See Models Used On For Details)
$42.58
13 013-0022-00 013-0022-00 - 3/4"-16 Fine Full Nut
$7.36
14 013-6040-00 013-6040-00 - 1/2-13 Centerlock Flange Nut
$2.99
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
16 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
17 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
18 018-6041-00 018-6041-00 - 1/2-13 x 2.75 Gr.8 Hex Head Bolt
$2.99
19 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
20 024-2065-00 024-2065-00 - Rogue/Renegade Wheel Motor 90 Degree Fitting
$18.67
21 048-7001-00 048-7001-00 - 3/4-16 RH Male Rod End for suspension mowers -CMX12
$28.39
22 051-6007-00 051-6007-00 - 2019-& Up Renegade Hydro Hose
$54.64
23 064-8054-00 064-8054-00 - Short Brake Cable-Suspension Models (See Models Used On For Details)
$51.47
24 070-0001-00 070-0001-00 - Left Trailing Arm 2019-2022 Renegade & Rogue
$291.91
25 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
26 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
30 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
37 064-9002-00 064-9002-00 - Long Brake Cable- 2019-2025 Renegade, Rogue
$51.47
38 070-0002-00 070-0002-00 - Right Trailing Arm 2019-2022 Renegade & Rogue
$219.99
40 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
