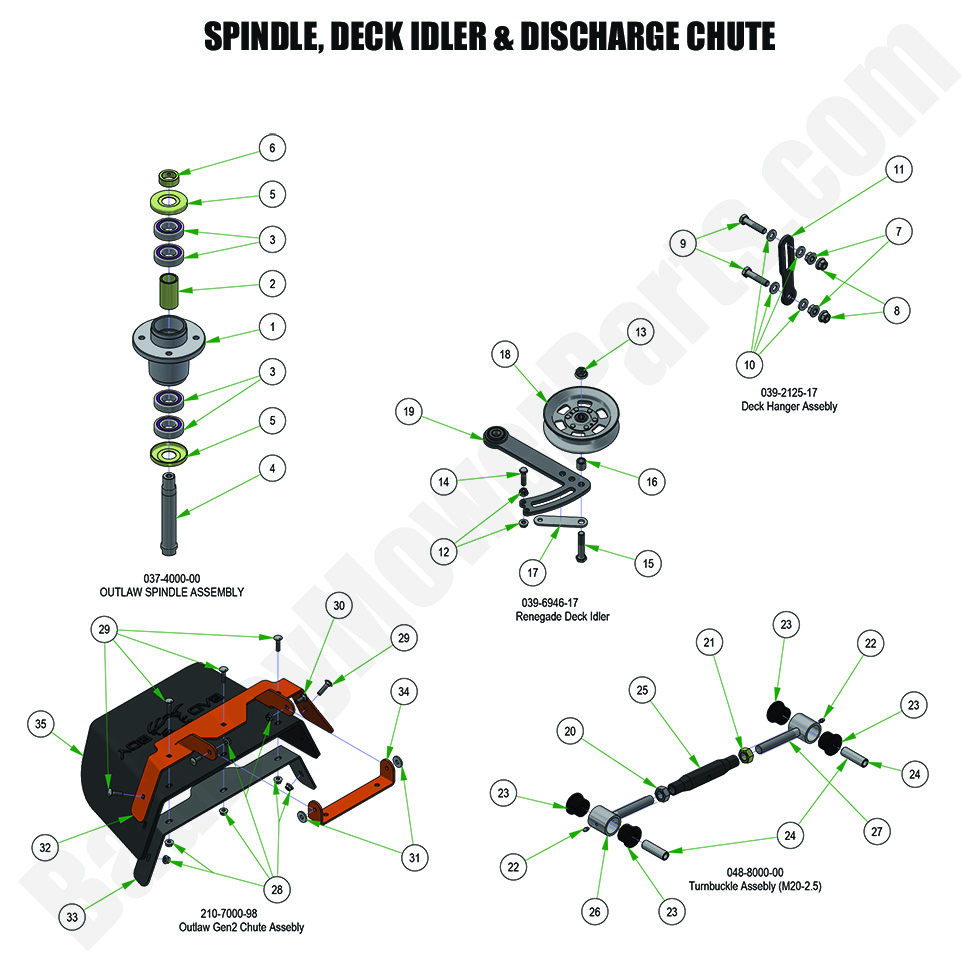

2024 Renegade - Gas - Spindle, Idler, Turnbuckle & Chute

2024 Renegade - Gas - Spindle, Idler, Turnbuckle & Chute

The 2024 Renegade - Gas Spindle, Idler, Turnbuckle & Chute assembly plays an important role in the performance of your mower. At BadBoyMowerParts.com, we provide a variety of Bad Boy Mower Parts to ensure your 2024 Renegade - Gas Spindle, Idler, Turnbuckle & Chute is working as it should. Our Bad Boy Mower Part Diagrams make it easy to identify the exact parts you need for repairs or replacements. With our selection of Bad Boy Lawn Mower Parts, you can trust that each component is made for durability and performance. When you shop Bad Boy Parts Online, you save time and effort, and with Free Shipping On Orders Over $100, you can have the parts delivered directly to your doorstep, keeping your 2024 Renegade - Gas in top condition and ready to work.

Bad Boy Mower Parts Lookup

2024 Renegade - Gas - Spindle, Idler, Turnbuckle & Chute
  Position Number SKU Product Title Price
1A 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
1B 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
1C 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
1D 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
1E 048-8000-00 048-8000-00 Turnbuckle Assembly (obsolete)
use part #048-9000-00
$80.24
2 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
3 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
4 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
5 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
7 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
10 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
11 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
12 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
14 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
15 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
16 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
17 026-0167-00 026-0167-00 - Belt Tensioner Retainer Plate 2019-2022 Rebel, Renegade & Rogue
$26.74
18 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
19 039-6946-00 039-6946-00 - Deck Tensioner 2019-2025 Rebel, Renegade & Rogue
$35.48
20 013-0030-00 013-0030-00 - Hex Nut M20-2.5 No Longer Available
Obsolete.
21 013-0031-00 013-0031-00 - Hex Nut M20-2.5 Left Hand Thread No Longer Available
Obsolete.
22 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
23 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
24 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
25 048-8020-00 048-8020-00 - 2024 Turnbuckle Body (obsolete)
use part #048-8000-00
$80.24
26 048-8021-00 048-8021-00 - Turnbuckle End Right-Handed Thread (obsolete)
use part #048-8000-00
$80.24
27 048-8022-00 048-8022-00 - Turnbuckle End Left-Handed Thread (obsolete)
use part #048-8000-00
$80.24
28 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
29 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
30 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
31 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
32 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84
33 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72
34 206-6018-00 206-6018-00 - Chute Hanger 2019-2025 Rebel, Revolt, Renegade & Rogue
$9.67
35 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-& Up Rebel, Revolt, Renegade & Rogue
$62.40
