2024 Revolt (36" Deck) - 36" Deck Assembly

2024 Revolt (36" Deck) - 36" Deck Assembly

The 2024 Revolt (36" Deck) 36" Deck Assembly is a critical part of your mower’s structure and performance. If you need to replace or repair the deck assembly, Bad Boy Mower Parts has you covered. Our selection of Bad Boy Mower Parts includes everything necessary to maintain or upgrade the 36" deck, from deck shells to individual components. Each part is carefully crafted to ensure durability and long-lasting performance. You can easily find the right parts for your mower by using our Bad Boy Mower Part Diagrams, which provide clear visuals of each deck component. As a leader in Bad Boy Lawn Mower Parts, we offer parts for your 2024 Revolt (36" Deck) along with Bad Boy Parts Online at competitive prices. Plus, enjoy Free Shipping On Orders Over $100, making it even easier to get the parts you need for your mower.

Bad Boy Mower Parts Lookup

2024 Revolt (36" Deck) - 36" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6036-00 088-6036-00 - Advanced Chute System for the Revolt with 36" Decks
$249.00
1B 210-0136-50 210-0136-50 - 36" Mulch Kit w/Wavy Blades Revolt
$318.45
1 033-7026-00 033-7026-00 - 5" V Idler Pulley with 1/2" Bore (See Models Used On For Details)
$35.48
2 039-6952-98 039-6952-98 - 36" Revolt Deck Idler Assembly (See Models Used On For Detail)
$70.61
3 025-0060-00 025-0060-00 - 36" Stand On Deck Spindle Spacer
$6.59

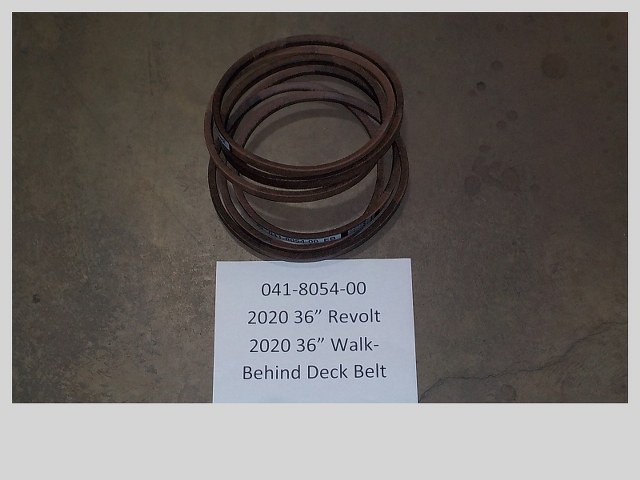

4 041-8054-00 041-8054-00 - Deck Belt 2020-Newer Revolt and Walk Behind (See Models Used On For Details)
$80.24
5 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
8 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
9A 038-5203-00 038-5203-00 - 36" & 52" Gator Mulching Blade
$22.99
9 038-3010-00 038-3010-00 - 36 & 52" High Lift Fusion Blade
$22.99
10 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
11 033-4820-00 033-4820-00 - Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
12 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
13 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
15 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
18 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
19 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
20 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
21 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
22 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
23 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
24 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
25 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
26 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
27 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
28 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
29 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
30 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
31 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
32 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
33 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
34 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
35 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99

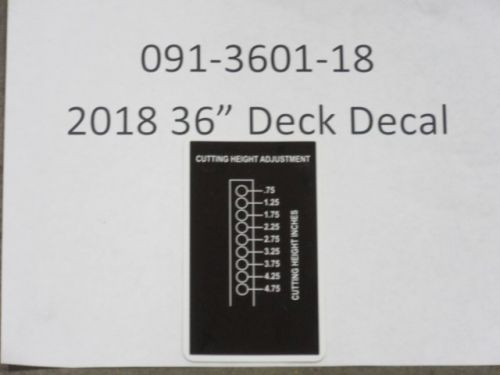

36 091-3601-18 091-3601-18 - 2018-2022 36" Deck Decal
$8.79
37 091-4059-00 091-4059-00 - 36" Revolt Pump Belt Route Decal
$3.29
38 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
39 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
40 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
42 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
43 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
44 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
45 210-6016-98 210-6016-98 - 36" Stand On Chute Assembly
$145.95
