2024 Revolt (36" Deck) - Frame & Fuel Tank

2024 Revolt (36" Deck) - Frame & Fuel Tank

The 2024 Revolt (36" Deck) Frame & Fuel Tank is an integral part of your mower, and at Bad Boy Mower Parts, we offer high-quality replacements for both components. Whether you're repairing a damaged frame or replacing a worn fuel tank, we’ve got the parts you need. Our extensive selection of Bad Boy Mower Parts ensures that you can find the right fit for your mower. To help you identify the correct frame and fuel tank parts, we provide detailed Bad Boy Mower Part Diagrams that make the process easy. As a leader in Bad Boy Lawn Mower Parts, we offer a wide range of parts for your 2024 Revolt (36" Deck). You can easily shop for Bad Boy Parts Online and take advantage of Free Shipping On Orders Over $100, ensuring you get your parts quickly and without any extra shipping costs.

Bad Boy Mower Parts Lookup

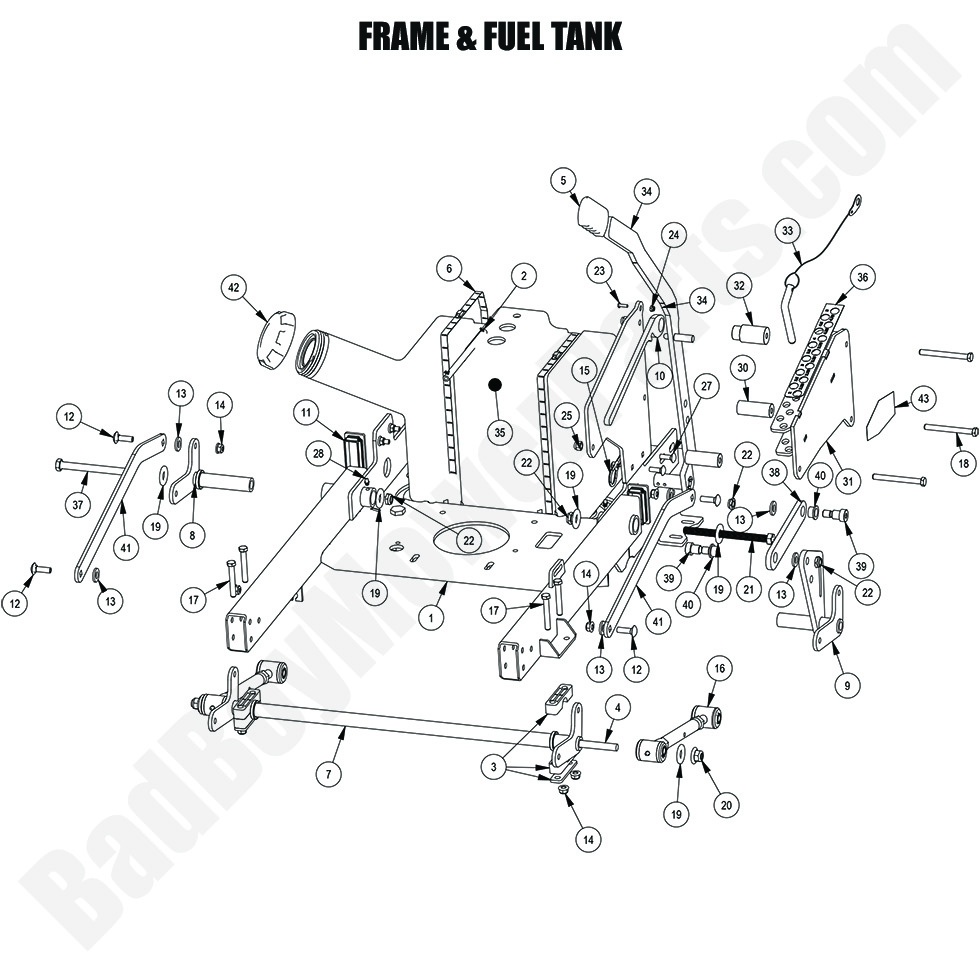

2024 Revolt (36" Deck) - Frame & Fuel Tank
  Position Number SKU Product Title Price

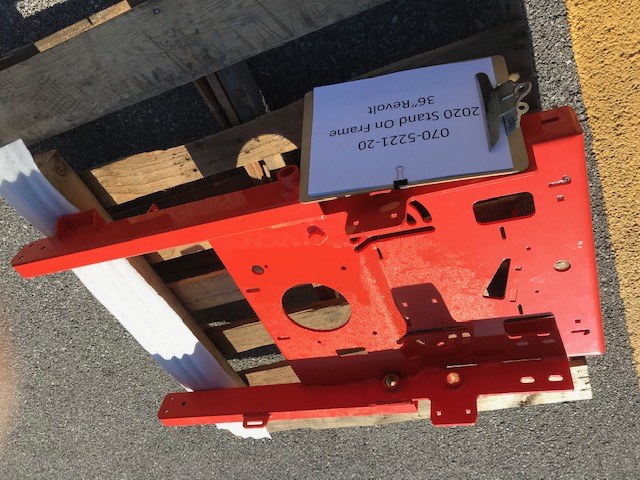

1 070-5221-20 070-5221-20 - 2020 36" Revolt Frame
$1299.99

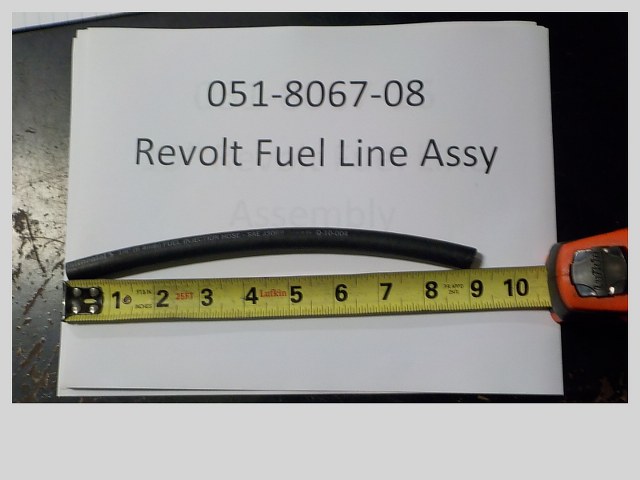

2 051-8067-08 051-8067-08 - Revolt Fuel Line Assy No Longer Available
Obsolete.

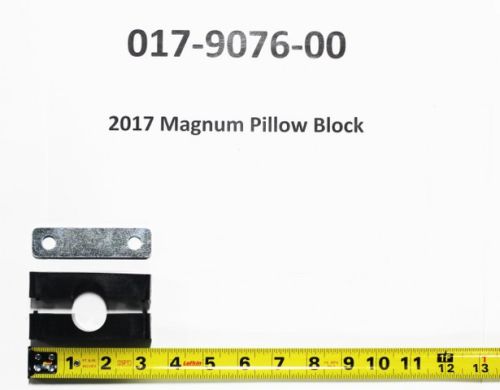

3 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41

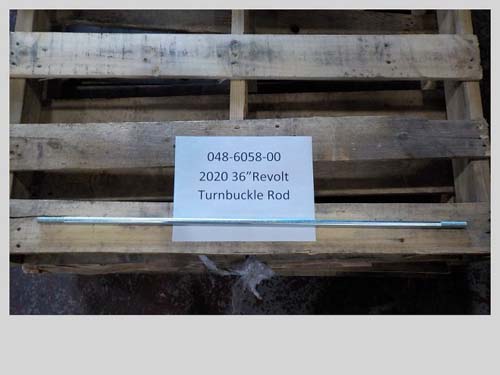

4 048-6058-00 048-6058-00 - 2020-2022 36" Revolt Turnbuckle Rod
$42.79

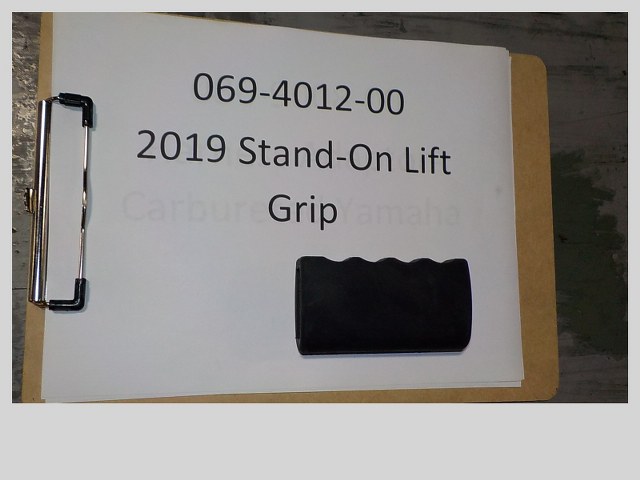

5 069-4012-00 069-4012-00 - Revolt Lift Grip (See Models Used On For Details)
$14.19

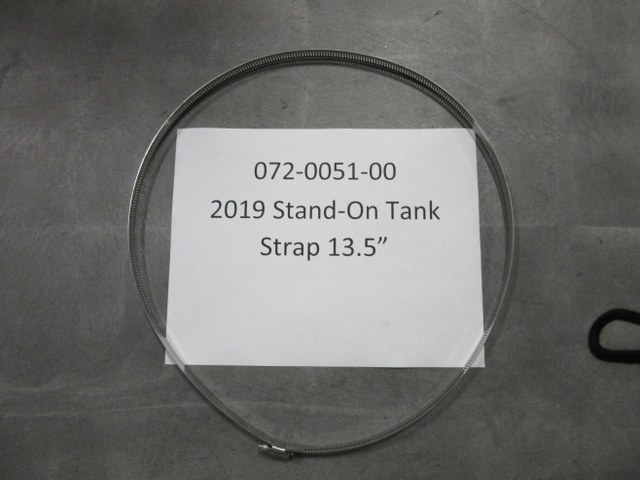

6 072-0051-00 072-0051-00 - Tank Strap 13.5" (See Models Used On For Details)
$11.34

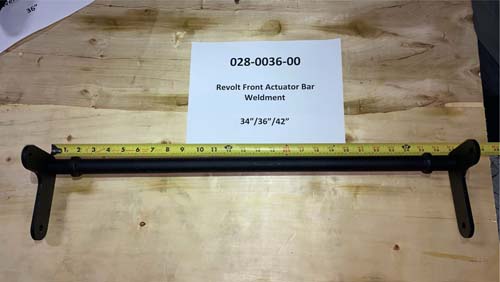

7 028-0036-00 028-0036-00 Revolt Front Actuator Bar Weldment
$74.89

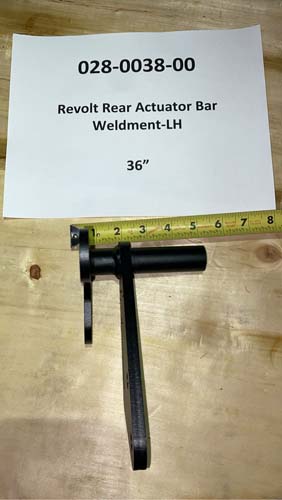

9 028-0038-00 028-0038-00 - Revolt Rear Actuator Bar Weldment-LH No Longer Available
Obsolete.

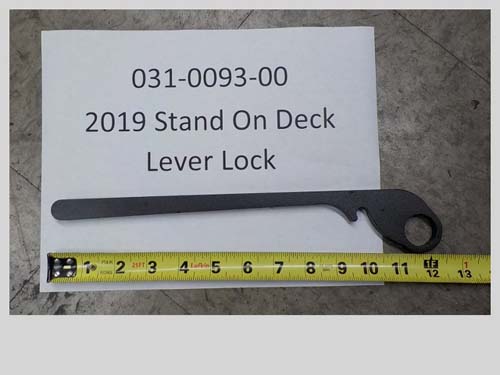

10 031-0093-00 031-0093-00 - 2019-2022 Stand On Deck Lever Lock
$24.12

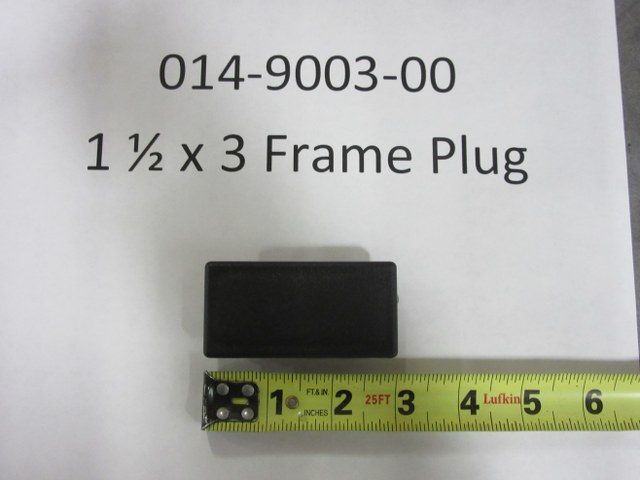

11 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
12 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99

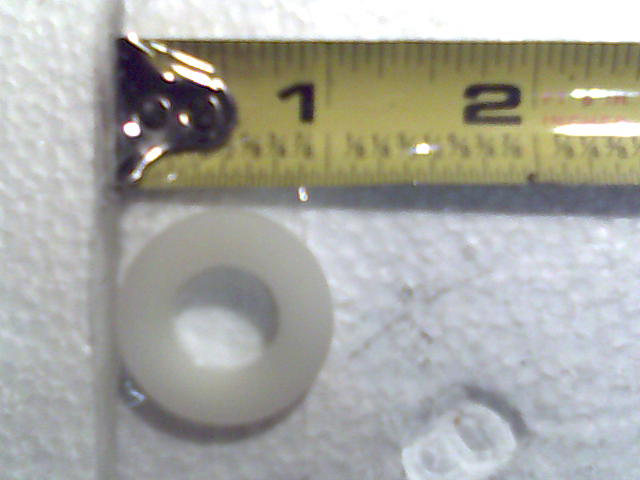

13 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
14 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 020-1001-00 020-1001-00 - Zinc-Plated Steel Reusable Cotter Pin No Longer Available
Obsolete.

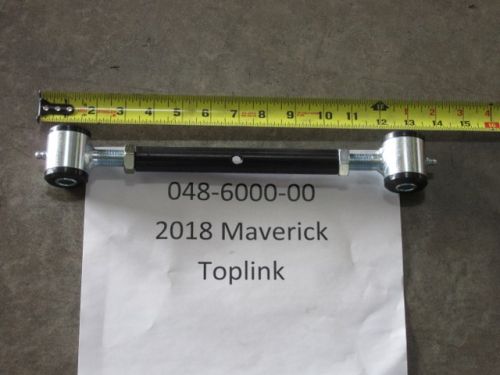

16 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24

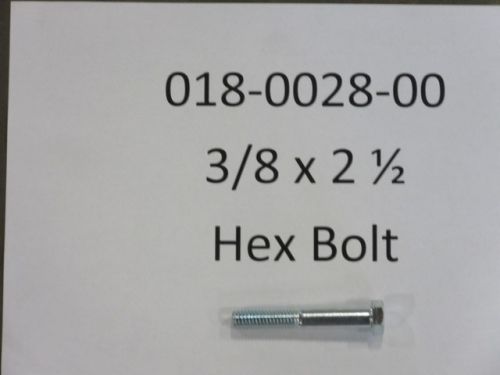

17 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
18 018-0084-00 018-0084-00 - 3/8 -16 x 3 Hex bolt
$2.99

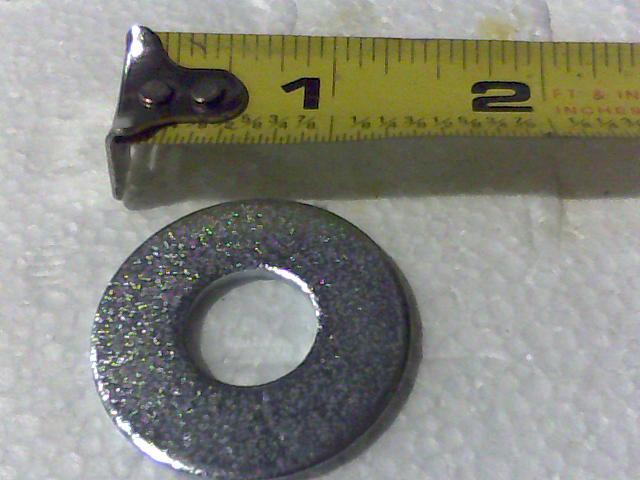

19 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 018-0038-00 018-0038-00 - 1/2-13 x 7" Carriage Bolt
$2.99
22 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99

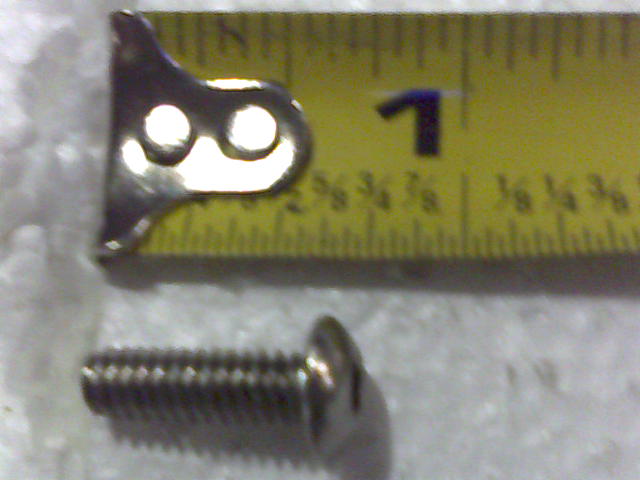

23 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99

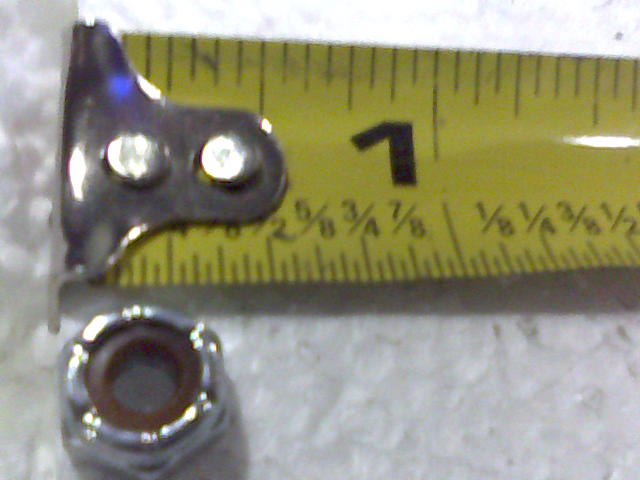

24 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99

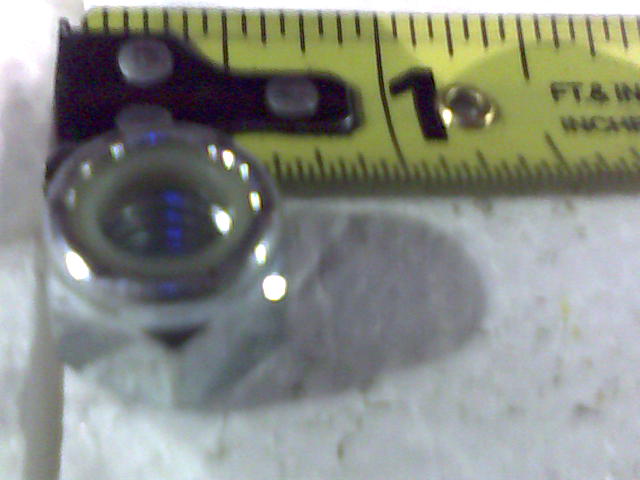

25 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99

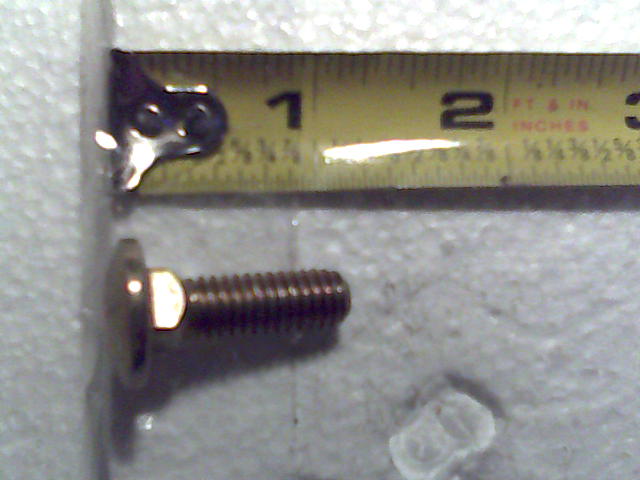

27 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99

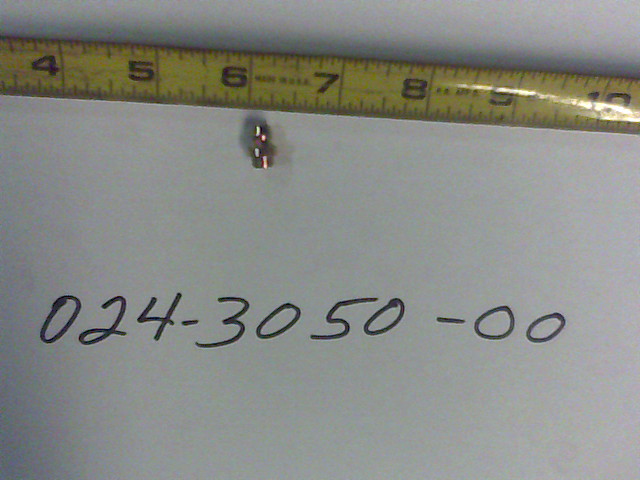

28 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
30 025-5343-00 025-5343-00 - Revolt Spacer 2.5"
$11.01
32 025-0081-00 025-0081-00 - Stand On Spacer 2.5" With Shoulder
$14.97
33 040-4004-00 040-4004-00 - 2023 Revolt Deck Height Pin
$16.04

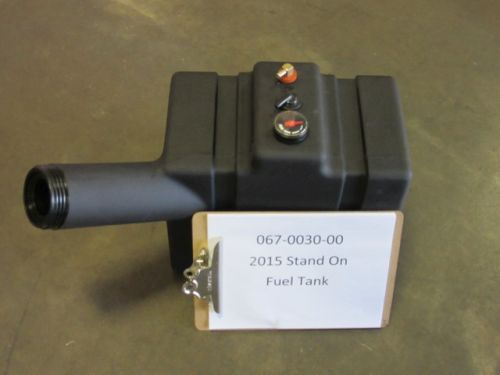

35 067-0030-00 067-0030-00 - 2015-2017 Stand-On & 2019-2022 Revolt Fuel Tank
$261.99
36 091-0025-00 091-0025-00 - Revolt Deck Height Indicator
$16.04

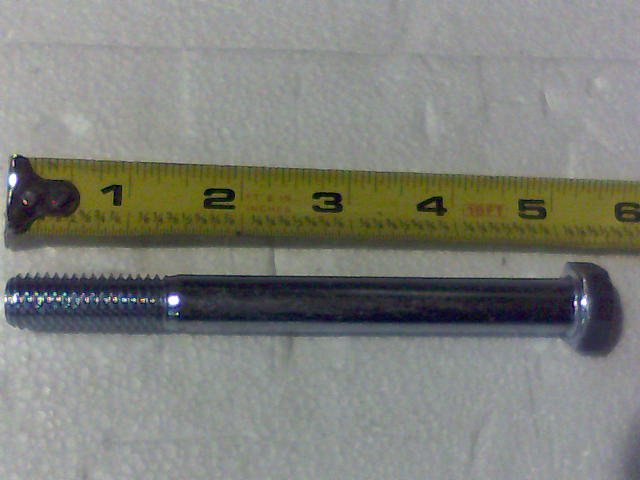

37 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
39 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
40 032-5052-00 032-5052-00 - Bronze Bushing
$4.81

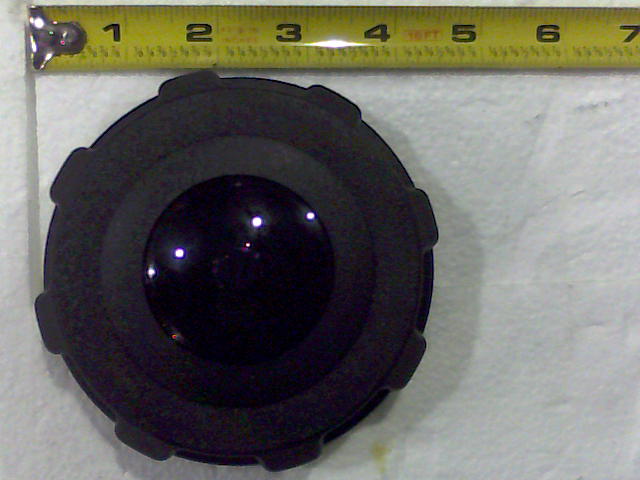

42 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
