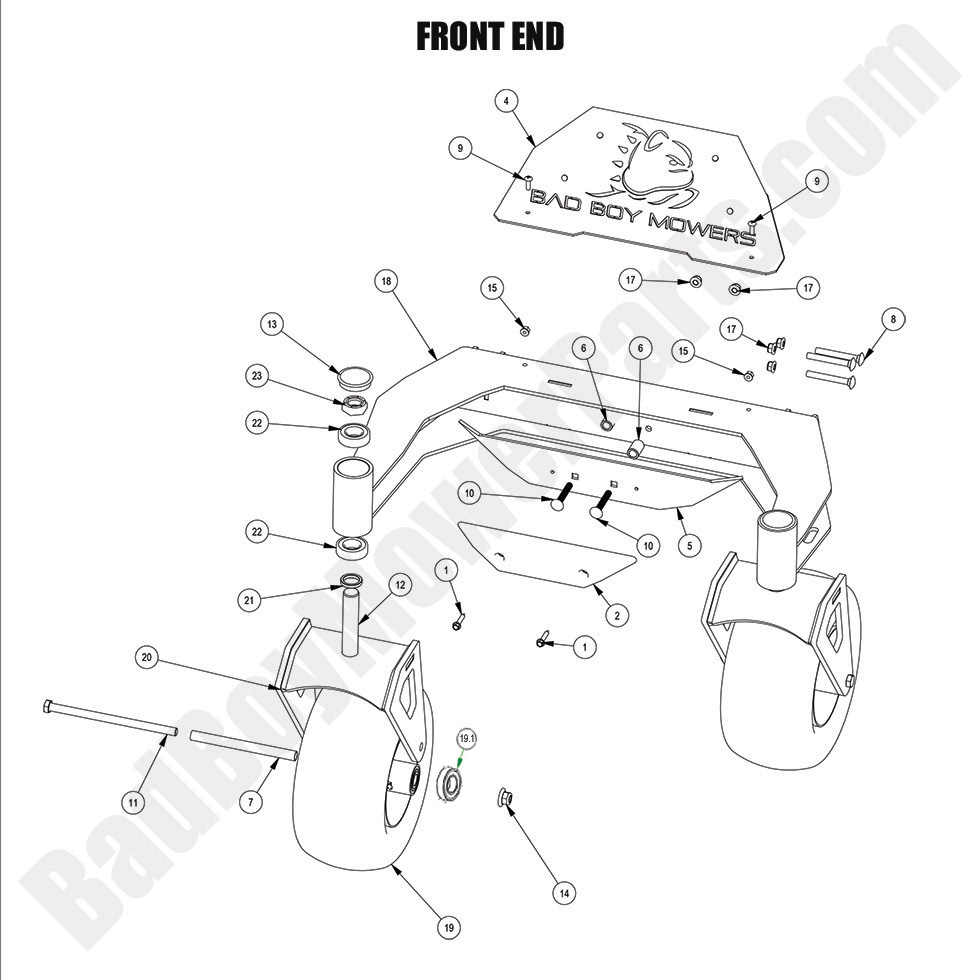

2024 Revolt (36" Deck) - Front End

2024 Revolt (36" Deck) - Front End

The 2024 Revolt (36" Deck) Front End of your mower is essential to its performance and maneuverability. If you need to repair or replace any components of the front end, Bad Boy Mower Parts has a wide range of Bad Boy Mower Parts to keep your machine running smoothly. Whether you're looking for steering components or other front-end parts, we have you covered. Our Bad Boy Mower Part Diagrams provide detailed views of the front end and help you find exactly what you need. Shopping for Bad Boy Lawn Mower Parts is easy at Bad Boy Mower Parts, where we offer a variety of options for your 2024 Revolt (36" Deck). Shop conveniently Bad Boy Parts Online and enjoy the benefit of Free Shipping On Orders Over $100, ensuring your parts are delivered quickly and at no additional cost.

Bad Boy Mower Parts Lookup

2024 Revolt (36" Deck) - Front End
  Position Number SKU Product Title Price
1 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
2 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
4 026-0084-00 026-0084-00 - Exhaust Shield Plate 2019-2022 Revolt
$13.90
5 026-0049-00 026-0049-00 - 2019-2022 Revolt Front Bumper Plate
$26.74
6 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
7 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
8 018-0072-00 018-0072-00 - 3/8-16 x 3 Carriage Bolt Zinc GR5
$2.99
9 018-0058-00 018-0058-00 - 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head No Longer Available
Obsolete.
10 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
11 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
12 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
13 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
15 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
17 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
19.1 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
19 022-3088-00 022-3088-00 - 13x6.50-6 Black No Flat Assy 2015-2019 Outlaw, 2022 - 2025 Maverick, Maverick HD, Rebel (Will Not Work On Renegade & Rogue)
$145.99
20 023-1010-00 023-1010-00 - Front Fork 2019-2022 Revolt, 2021-2022 Maverick
$145.95
21 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
22 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
23 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
