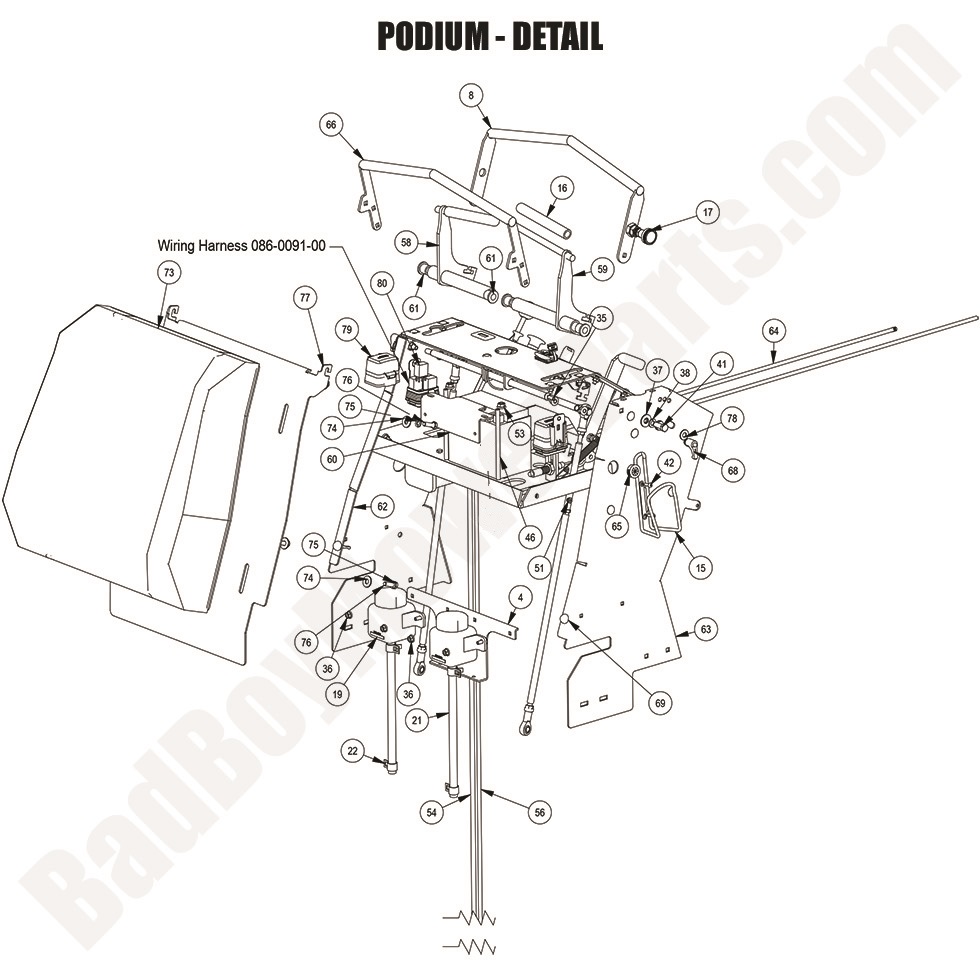

2024 Revolt (36" Deck) - Podium - Detail

2024 Revolt (36" Deck) - Podium - Detail

For those needing the 2024 Revolt (36" Deck) Podium - Detail, Bad Boy Mower Parts offers detailed replacement parts designed specifically for the 2024 Revolt. The podium detail plays a crucial role in maintaining your mower's structural integrity and performance. We carry a complete inventory of Bad Boy Mower Parts that includes all necessary components for this section. To assist you in your repair or replacement, we provide Bad Boy Mower Part Diagrams that showcase the detailed parts, ensuring you get exactly what you need. Whether it’s for general maintenance or fixing a specific issue, our store has a wide variety of Bad Boy Lawn Mower Parts. When you shop for Bad Boy Parts Online, you can take advantage of Free Shipping On Orders Over $100, ensuring your parts are delivered quickly and affordably.

Bad Boy Mower Parts Lookup

2024 Revolt (36" Deck) - Podium - Detail
  Position Number SKU Product Title Price
1 086-0091-00 086-0091-00 - 2019 - 2025 Revolt Wiring Harness
$363.44
4 026-0157-00 026-0157-00 - 36" Hydrotank Carrier Plate
$26.74
8 031-0034-00 031-0034-00 - 36" Front Control Arm Stop Weldment--Bla
$32.05
15 071-6005-00 071-6005-00 - Revolt Cup Holder (See Models Used On For Details)
$22.71
16 069-2014-00 069-2014-00 - 2019-2022 Cushioned Grip (See Models Used On For Details)
$8.01
17 069-0002-00 069-0002-00 - Retractable Spring Plunger Black Steel 5/8-11
$84.52
19 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
21 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
22 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
35 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
36 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
37 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
38 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
41 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
42 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
46 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
51 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
53 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
54 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
56 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
60 026-0264-00 026-0264-00 - 2023-2025 Stand on Battery Hold Down
$16.04
61 032-0005-00 032-0005-00 - 2023 Revolt Drive Arm Bushings
$2.99
62 026-0280-00 026-0280-00 - 2023 Podium Panel Left--Orange
$42.79
63 026-0270-00 026-0270-00 - 2023 Podium Panel Right--Orange
$42.79
64 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
65 024-0016-00 024-0016-00 - 2023 Expandable Locking Grommet No Longer Available
Obsolete.
68 045-0001-00 045-0001-00 - 2023 Revolt Platform Plastic Knobs
$16.04
69 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
73 071-6006-22 071-6006-22 - 2022 36 revolt seat pad
$264.99
74 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
75 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
76 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
78 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
79 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
80 086-1202-19 086-1202-19 - Relay Terminal
$24.97
