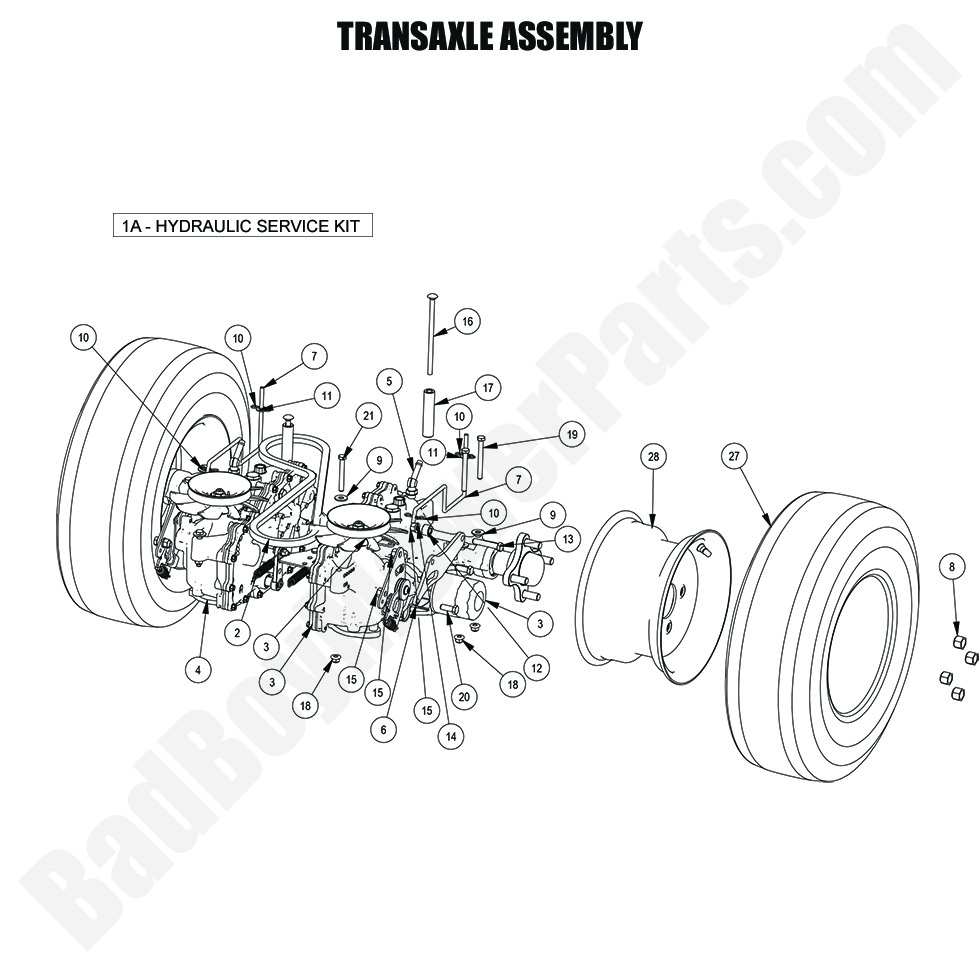

2024 Revolt (36" Deck) - Transaxle Assembly

2024 Revolt (36" Deck) - Transaxle Assembly

The 2024 Revolt (36" Deck) Transaxle Assembly is an essential component for your mower’s operation, and replacing or servicing it is made simple with Bad Boy Mower Parts. The transaxle assembly ensures the efficient transmission of power from the engine to the wheels. At Bad Boy Mower Parts, we carry a full range of Bad Boy Mower Parts for the 2024 Revolt, including transaxle assemblies designed for high performance. With the help of our Bad Boy Mower Part Diagrams, you can easily identify and install the correct transaxle assembly for your mower. Whether you’re performing a routine maintenance check or replacing a malfunctioning part, our extensive selection of Bad Boy Lawn Mower Parts ensures you’ll find what you need. Plus, enjoy Free Shipping On Orders Over $100 when you shop Bad Boy Parts Online, ensuring you get your parts quickly and without any extra shipping costs.

Bad Boy Mower Parts Lookup

2024 Revolt (36" Deck) - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74

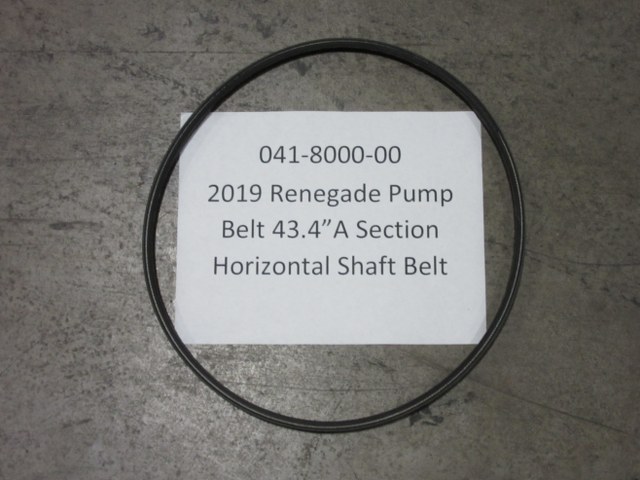

2 041-8000-00 041-8000-00 - Pump Belt (See Models Used On For Detail)
$80.24

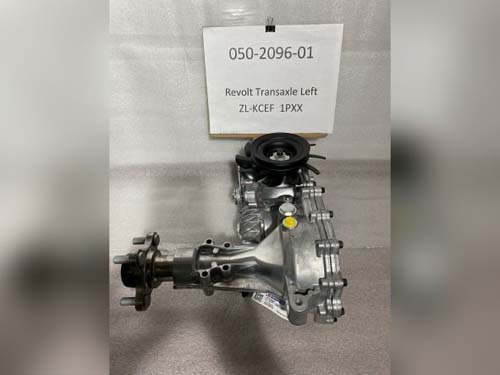

3 050-2096-01 050-2096-01 - Left ZT Transaxle & 36" 2020-2022 Revolt
$729.99

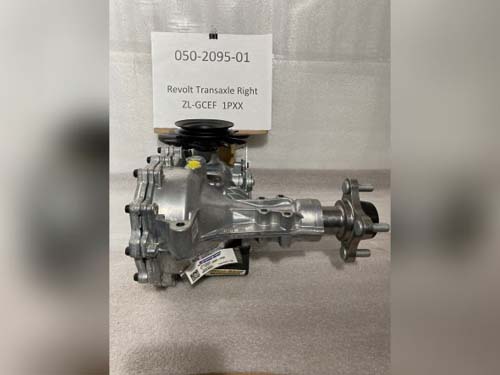

4 050-2095-01 050-2095-01 - Right ZT Transaxle & 36" 2020-2022 Revolt
$729.99
5 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93

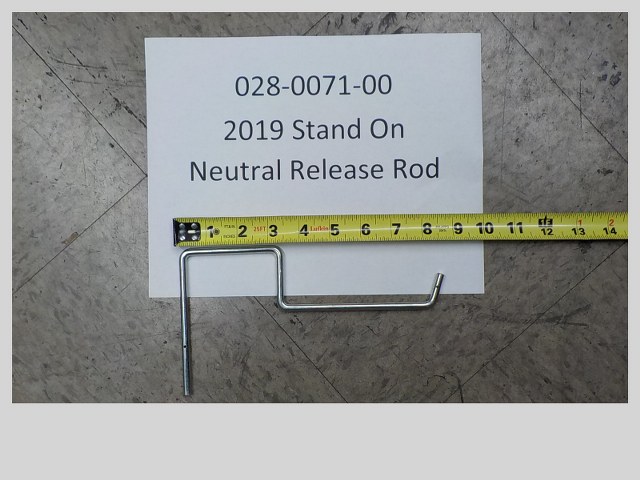

7 028-0071-00 028-0071-00 - Neutral Release Rod 2019-2024 Revolt
$29.95
8 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 044-2004-00 044-2004-00 - Bow Pin
$2.99
11 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
12 025-2004-00 025-2004-00 - ACS Spacer 3/4x3/8x1/2
$15.60
13 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
14 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
15 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
16 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
17 024-0070-00 024-0070-00 - 8mm x 1/8 mpt Adaptor - All Di esel Models
$50.28
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
20 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99

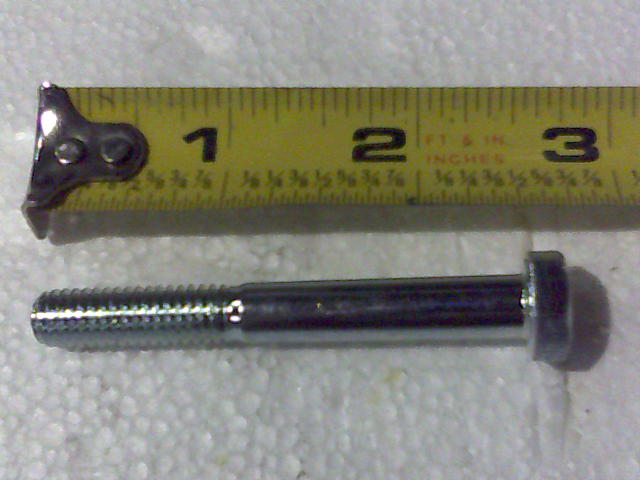

21 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99

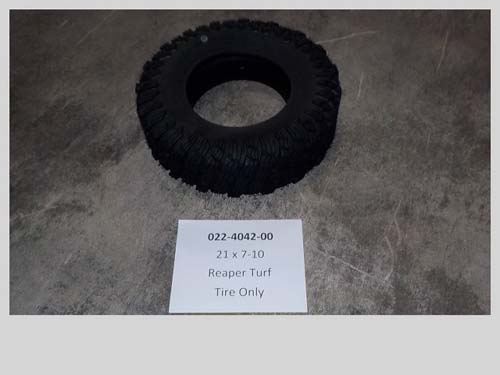

27 022-4042-00 022-4042-00 - 21x7-10 Reaper Turf Tire Only
$122.99

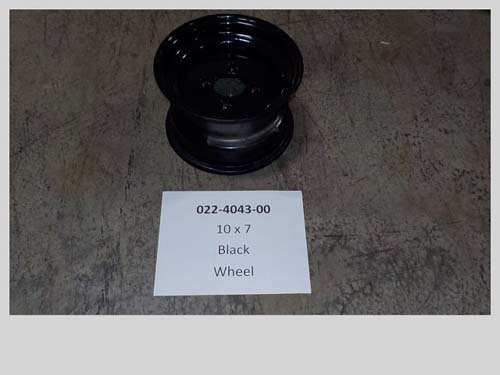

28 022-4043-00 022-4043-00 - 10 x 7 Black Wheel
$105.99
