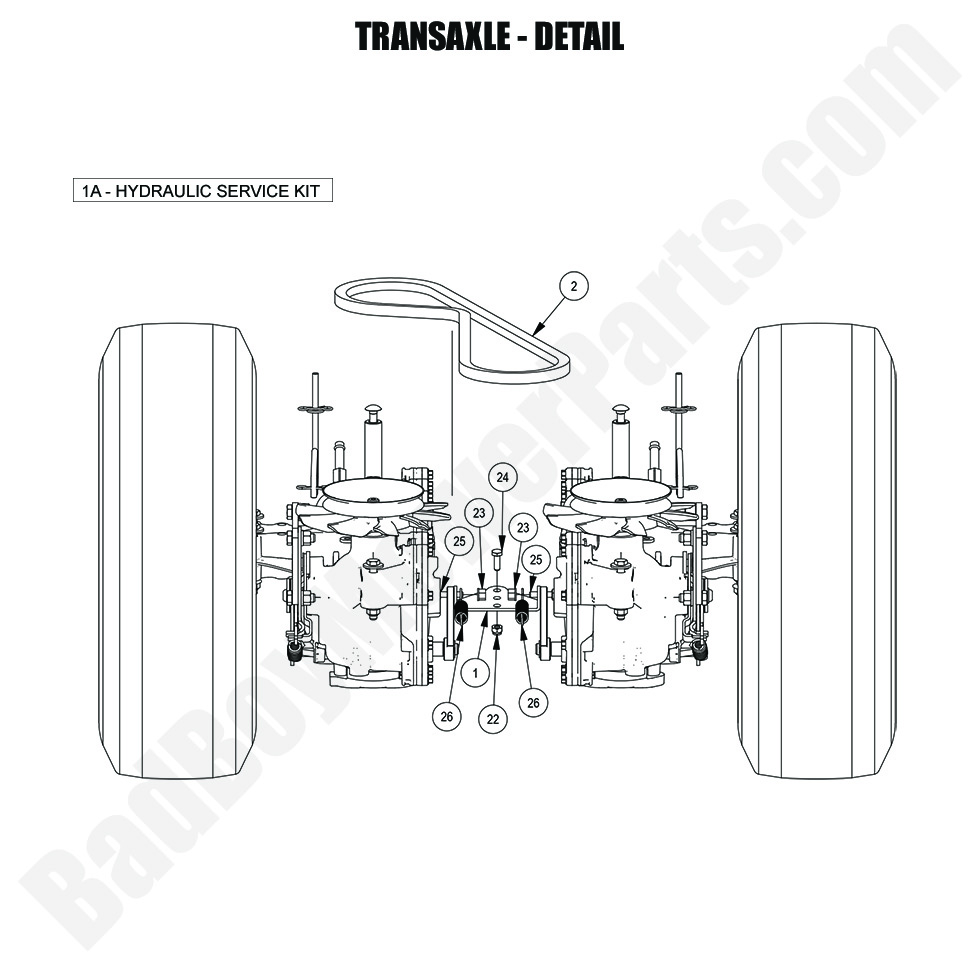

2024 Revolt (36" Deck) - Transaxle - Detail

2024 Revolt (36" Deck) - Transaxle - Detail

The 2024 Revolt (36" Deck) Transaxle - Detail is a crucial part of your mower's drive system, and at Bad Boy Mower Parts, we provide high-quality transaxle components for your 2024 Revolt (36" Deck). Whether you're replacing a worn-out transaxle or upgrading to a more efficient one, we have you covered. Our selection of Bad Boy Mower Parts includes everything you need for the transaxle assembly, ensuring a perfect fit and long-lasting performance. Bad Boy Mower Part Diagrams help you easily find and identify the right parts for your mower’s transaxle. As a leader in Bad Boy Lawn Mower Parts, we offer a wide variety of options to choose from. When you shop Bad Boy Parts Online, you can rest assured knowing that we offer Free Shipping On Orders Over $100, making your purchase convenient and cost-effective.

Bad Boy Mower Parts Lookup

2024 Revolt (36" Deck) - Transaxle - Detail
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 039-0151-00 039-0151-00 - 2020 36" Brake Bracket--Black
$14.11
2 041-8000-00 041-8000-00 - Pump Belt (See Models Used On For Detail)
$80.24
22 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
23 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
24 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
25 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
26 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
