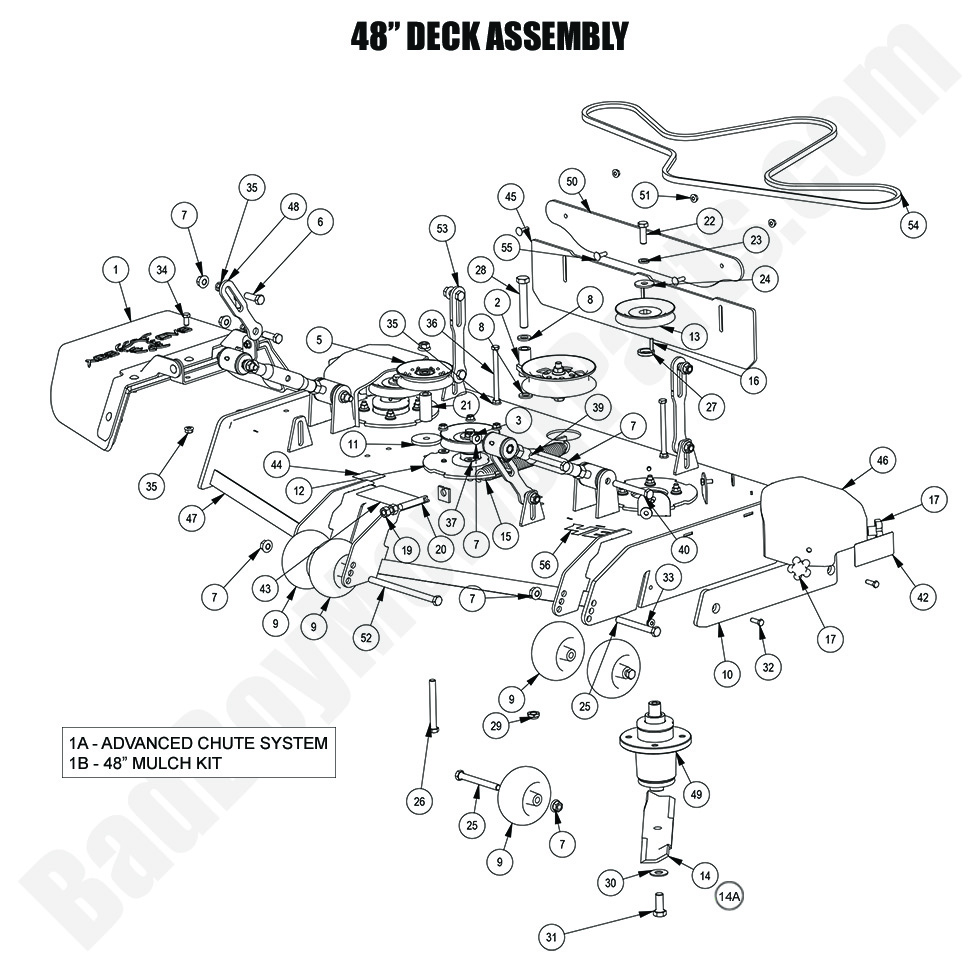

2024 Revolt (48"-61" Decks) - 48" Deck Assembly

2024 Revolt (48"-61" Decks) - 48" Deck Assembly

For anyone needing the 2024 Revolt (48"-61" Decks) 48" Deck Assembly, Bad Boy Mower Parts has high-quality, reliable components to keep your mower in great working condition. Our selection of Bad Boy Mower Parts includes everything you need for your 48" deck, from deck shells to pulleys and blades. Our Bad Boy Mower Part Diagrams help you identify and replace the right parts with ease, ensuring a perfect fit every time. Whether you're repairing or upgrading, we carry only the best Bad Boy Lawn Mower Parts for your 2024 Revolt. Bad Boy Parts Online makes shopping easy, and with Free Shipping On Orders Over $100, you can save on shipping costs and have your parts delivered directly to your door. Keep your mower performing like new with our premium 48" deck assembly parts.

Bad Boy Mower Parts Lookup

2024 Revolt (48"-61" Decks) - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt 48", 54", and 61" Decks
$249.00
1B 210-0349-00 210-0349-00 - Revolt 48" Mulch Kit w/Blades
$318.45
1 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
2 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
6 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
9 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
10 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
11 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
12 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
13 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
14A 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
14 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
15 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
16 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
17 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
19 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
20 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
21 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
22 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
23 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
24 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
25 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
26 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
27 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
28 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
29 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
30 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
31 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
32 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
33 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
34 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
35 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
36 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
37 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
39 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
40 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
42 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
43 091-4019-00 091-4019-00 - 2019-2022 Revolt Deck Belt Route Decal
$6.04
44 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
45 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
46 014-4006-00 014-4006-00 - 2023 Revolt Pulley Covers
$21.39
47 060-2326-00 060-2326-00 - 2023 48" Revolt Deck--Painted
$1399.99
48 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
49 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
50 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
51 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
52 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
53 039-0245-00 039-0245-00 - 48"/54" Rear Deck Hanger--Black
$21.39
54 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT)
$80.24
55 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
56 091-0503-00 091-0503-00 - MY24 48" Deck Decal
$10.99
