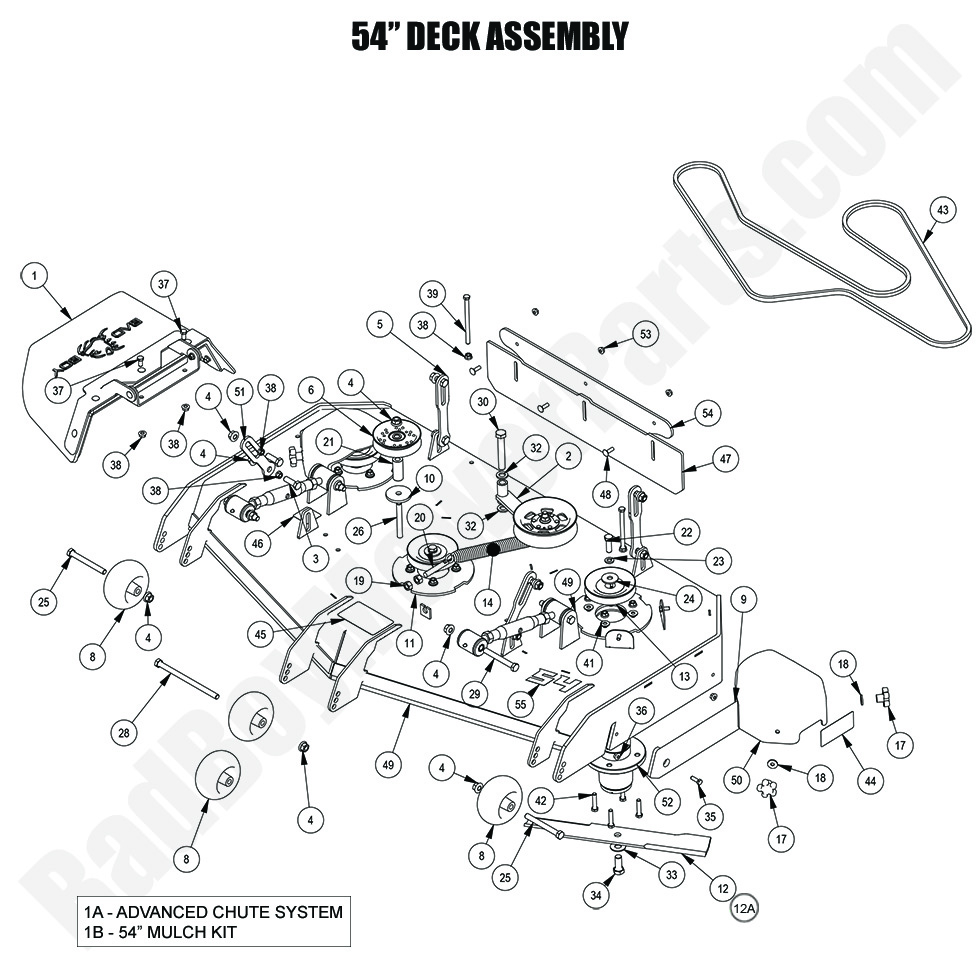

2024 Revolt (48"-61" Decks) - 54" Deck Assembly

2024 Revolt (48"-61" Decks) - 54" Deck Assembly

The 2024 Revolt (48"-61" Decks) 54" Deck Assembly is another essential component for your mower, and Bad Boy Mower Parts offers a wide range of quality parts for this deck size. We know that a durable, well-functioning deck is vital for achieving the perfect cut, and our selection of Bad Boy Mower Parts is designed to keep your 54" deck performing at its best. To help with the installation process, we provide Bad Boy Mower Part Diagrams that guide you through identifying the right parts. As your trusted source for Bad Boy Lawn Mower Parts, we offer everything from complete deck assemblies to individual components. Shop conveniently for Bad Boy Parts Online, and take advantage of Free Shipping On Orders Over $100, so your mower is ready for use without the extra shipping costs.

Bad Boy Mower Parts Lookup

2024 Revolt (48"-61" Decks) - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt 48", 54", and 61" Decks
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
2 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
3 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 039-0245-00 039-0245-00 - 48"/54" Rear Deck Hanger--Black
$21.39
6 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
8 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
9 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
10 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
11 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
12A 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
12 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
13 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
14 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
17 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
18 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
19 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
20 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
21 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
22 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
23 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
24 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
25 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
26 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
28 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
29 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
30 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
32 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
33 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
34 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
35 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
36 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
37 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
38 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
39 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
41 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
42 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
43 041-0120-00 041-0120-00 - Deck Belt (See Models Used On For More Details - Not for 54" MZ)
$88.80
44 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
45 091-4019-00 091-4019-00 - 2019-2022 Revolt Deck Belt Route Decal
$6.04
46 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
47 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
48 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
49 060-2327-00 060-2327-00 - 2023 54" Revolt Deck--Painted
$1399.99
50 014-4006-00 014-4006-00 - 2023 Revolt Pulley Covers
$21.39
51 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
52 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
53 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
54 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
55 091-0504-00 091-0504-00 - MY24 54" Deck Decal
$10.99
