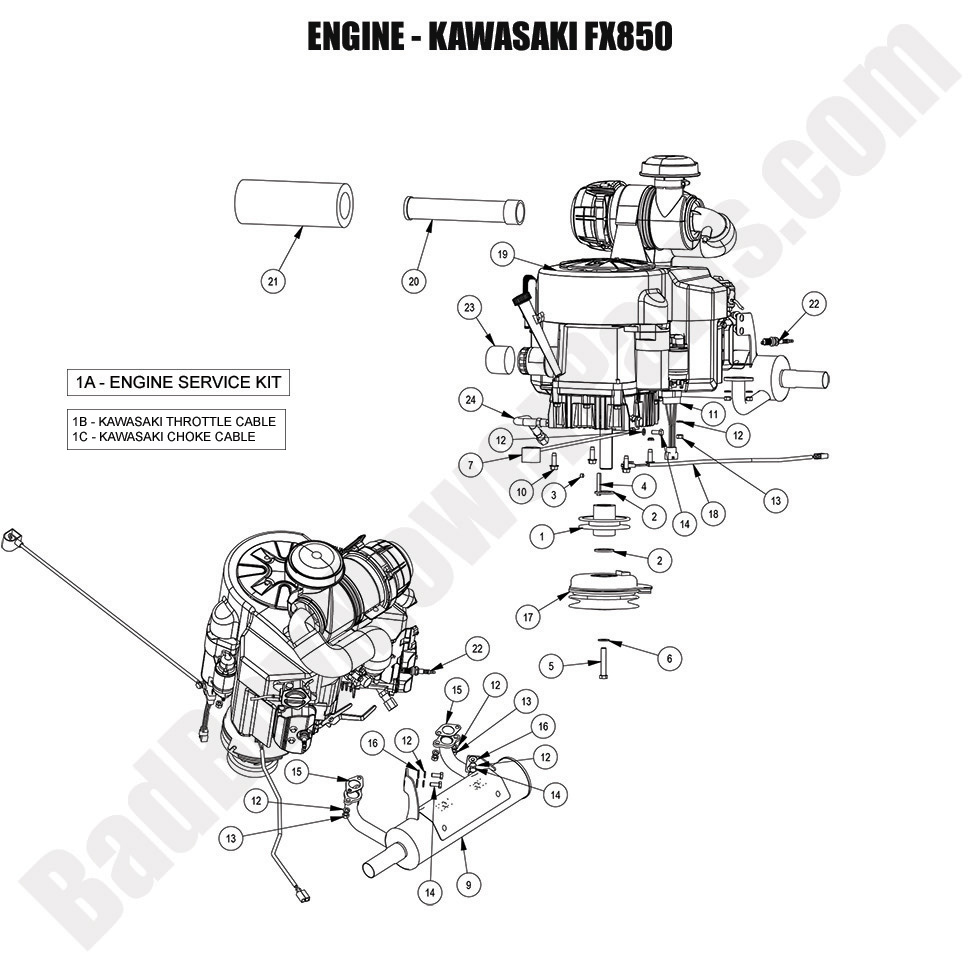

2024 Revolt (48"-61" Decks) - Engine - Kawasaki FX850

2024 Revolt (48"-61" Decks) - Engine - Kawasaki FX850

For 2024 Revolt (48"-61" Decks) Engine - Kawasaki FX850 parts, Bad Boy Mower Parts is the go-to source for all the necessary components. The Kawasaki FX850 engine is designed for durability and power, and we have the parts to keep it running efficiently. Whether you need to replace the air filter, spark plugs, or fuel system components, we offer a wide selection of Bad Boy Mower Parts for this engine. Our Bad Boy Mower Part Diagrams provide easy-to-follow illustrations to ensure you find the right parts for your 2024 Revolt (48"-61" Decks). As a leading supplier of Bad Boy Lawn Mower Parts, we guarantee high-quality replacements. Shop Bad Boy Parts Online, and enjoy the added benefit of Free Shipping On Orders Over $100, ensuring your parts arrive quickly and without additional shipping costs.

Bad Boy Mower Parts Lookup

2024 Revolt (48"-61" Decks) - Engine - Kawasaki FX850
  Position Number SKU Product Title Price
1A 063-2000-02 063-2000-02 - Kawasaki FX850 Engine Service Kit
$124.74
1B 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
1C 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
1D 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
1 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
2 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
3 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
4 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
5 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
6 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
7 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
9 015-1022-00 015-1022-00 - Revolt Kawasaki FX850 Exhaust
$163.90
10 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
11 086-9002-19 086-9002-19 - Wiring Harness Adaptor-All Kawasaki FX (See Models Used On For Details)
$20.29
12 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
13 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
14 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
15 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
16 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
17 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
18 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
19 015-0031-00 015-0031-00 - Kaw Engine FX-850V-AS15R
$3395.00
20 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
21 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
22 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
23 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
24 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
