2024 Revolt (48"-61" Decks) - Engine - Vanguard EFI

2024 Revolt (48"-61" Decks) - Engine - Vanguard EFI

For those with the 2024 Revolt (48"-61" Decks) Engine - Vanguard EFI, Bad Boy Mower Parts offers a wide selection of high-quality components to maintain or repair your engine. The Vanguard EFI engine provides exceptional power and efficiency, and our inventory of Bad Boy Mower Parts ensures that you can keep it in top working order. We offer a range of parts for this engine, including filters, gaskets, and more. With our Bad Boy Mower Part Diagrams, it’s easy to find the specific parts you need for a hassle-free installation. As a trusted supplier of Bad Boy Lawn Mower Parts, we prioritize quality and durability. When you shop Bad Boy Parts Online, you can also take advantage of Free Shipping On Orders Over $100, making it convenient to get the parts you need delivered directly to you.

Bad Boy Mower Parts Lookup

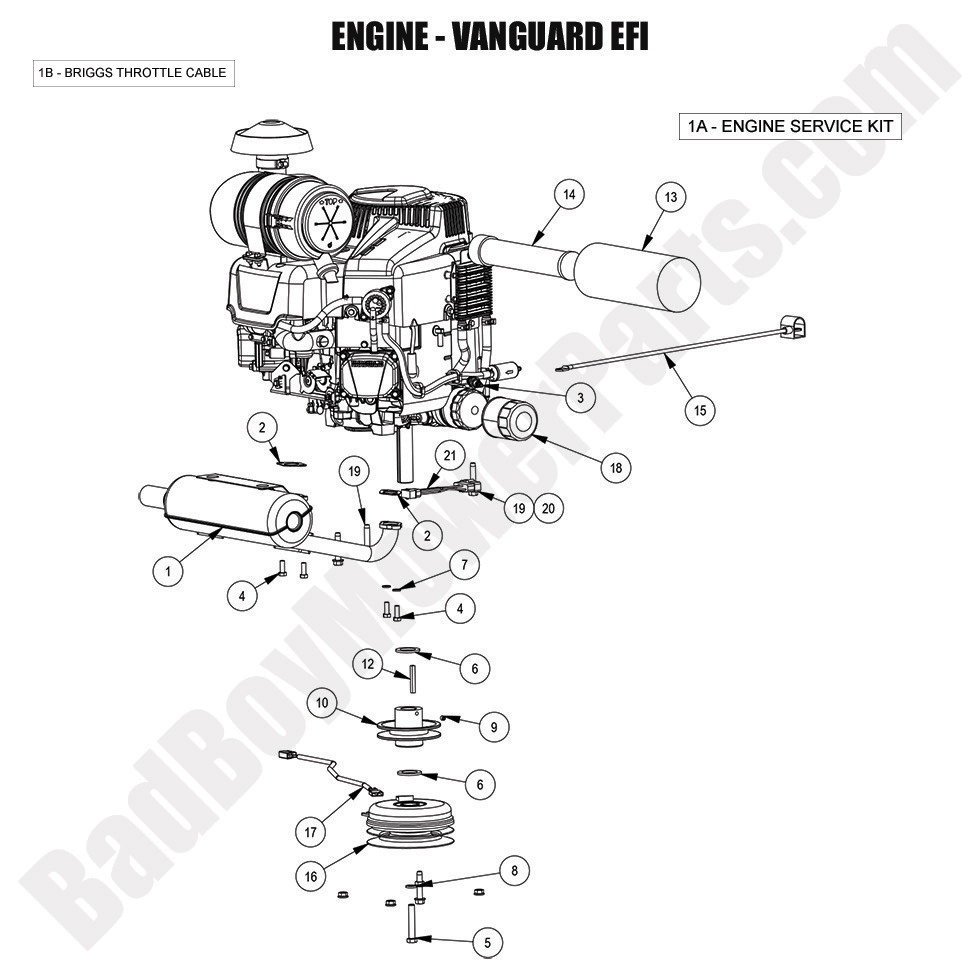

2024 Revolt (48"-61" Decks) - Engine - Vanguard EFI
  Position Number SKU Product Title Price
1A 063-2000-22 063-2000-22 - Engine Service Kit - Briggs Vanguard 810/993/999cc (EFI Models Only)
$127.15
1B 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
1C 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19

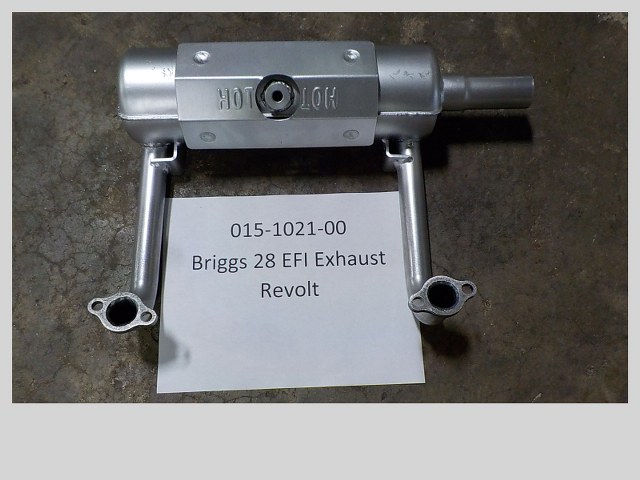

1 015-1021-00 015-1021-00 - Briggs 28 EFI Exhaust Revolt
$209.99
2 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
3 015-8000-03 015-8000-03 - Spark Plug for Vanguard 37hp EFI and 28hp EFI (Not for Non-EFI)
$7.69
4 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
5 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
6 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
7 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
8 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
9 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
10 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
12 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
13 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
14 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
15 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
16 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
17 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
18 063-8018-00 063-8018-00 - Oil Filter
$21.39
19 018-0061-00 018-0061-00 - 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
$5.93
20 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
21 086-9015-21 086-9015-21 2021-2024 28 Briggs EFI Pigtail
$21.39
