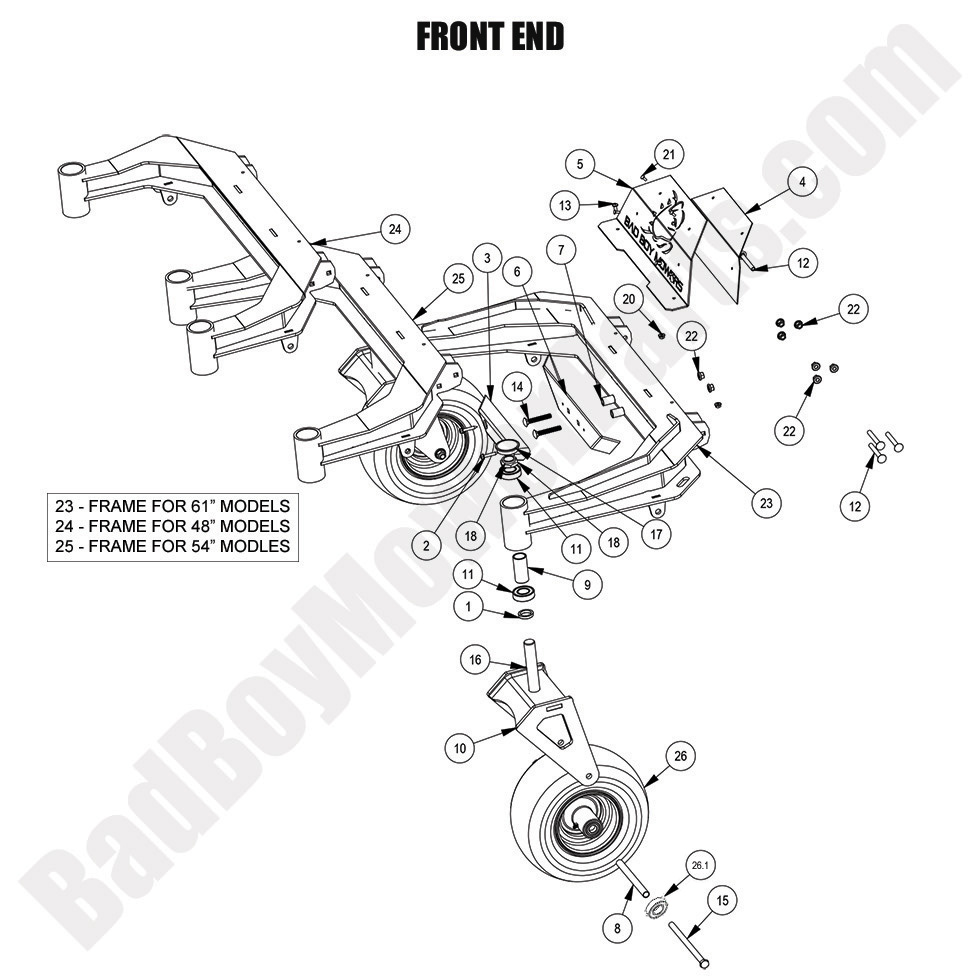

2024 Revolt (48"-61" Decks) - Front End

2024 Revolt (48"-61" Decks) - Front End

For the 2024 Revolt (48"-61" Decks) Front End, Bad Boy Mower Parts offers a full range of replacement parts to keep your mower running smoothly. The front end is a critical component for your mower's steering and stability, and ensuring its optimal condition is key to long-lasting performance. We carry high-quality Bad Boy Mower Parts for your 2024 Revolt, including front end assemblies, bearings, and related components. To assist you in finding the right parts, we offer detailed Bad Boy Mower Part Diagrams that help you easily locate each piece. As a leading provider of Bad Boy Lawn Mower Parts, we guarantee that all of our parts are built to withstand the toughest tasks. Shop for Bad Boy Parts Online and take advantage of Free Shipping On Orders Over $100, so you can get your front end parts delivered directly to your door without extra cost.

Bad Boy Mower Parts Lookup

2024 Revolt (48"-61" Decks) - Front End
  Position Number SKU Product Title Price
1 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
2 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
3 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
4 026-0085-00 026-0085-00 - Exhaust Backer Plate
$16.04
5 026-0084-00 026-0084-00 - Exhaust Shield Plate 2019-2022 Revolt
$13.90
6 026-0049-00 026-0049-00 - 2019-2022 Revolt Front Bumper Plate
$26.74
7 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
8 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
9 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
10 023-1010-00 023-1010-00 - Front Fork 2019-2022 Revolt, 2021-2022 Maverick
$145.95
11 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
12 018-0072-00 018-0072-00 - 3/8-16 x 3 Carriage Bolt Zinc GR5
$2.99
13 018-0058-00 018-0058-00 - 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head No Longer Available
Obsolete.
14 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
15 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
16 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
17 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
18 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
20 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
21 013-0026-00 013-0026-00 - 3/16" Diameter, for 0.1260"-0.25" Material
$3.29
22 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
23 070-9062-00 070-9062-00 - 61" Stand On Front End--Orange
$229.99
25 070-9055-00 070-9055-00 - 54" Stand On Front End--Orange
$159.99
26.1 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
26 022-3088-00 022-3088-00 - 13x6.50-6 Black No Flat Assy 2015-2019 Outlaw, 2022 - 2025 Maverick, Maverick HD, Rebel (Will Not Work On Renegade & Rogue)
$145.99
