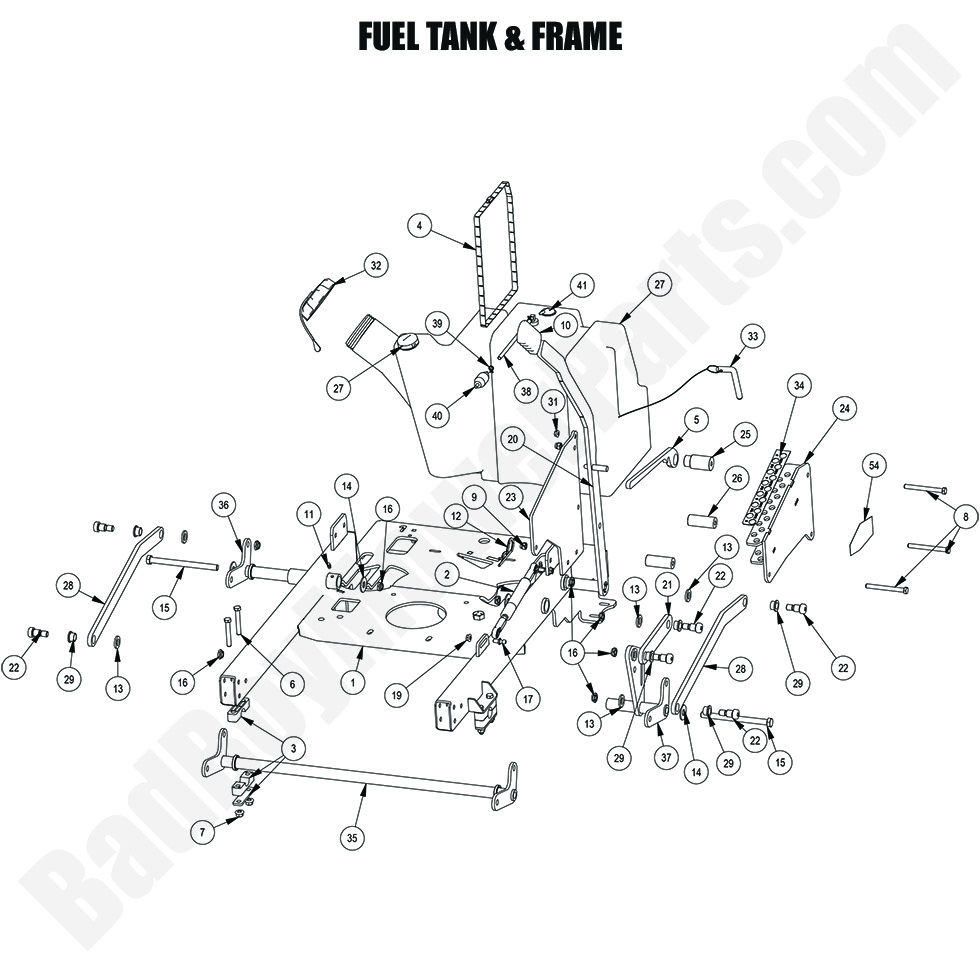

2024 Revolt (48"-61" Decks) - Fuel Tank & Frame

2024 Revolt (48"-61" Decks) - Fuel Tank & Frame

The 2024 Revolt (48"-61" Decks) Fuel Tank & Frame is an essential part of your mower, and Bad Boy Mower Parts provides a wide selection of high-quality components for this section. A well-maintained fuel tank and frame are crucial for the overall performance of your mower. Whether you need to replace the fuel tank itself or any of the frame components, our inventory of Bad Boy Mower Parts has you covered. We provide Bad Boy Mower Part Diagrams to help you easily identify the correct parts needed for replacement or repair. As your trusted supplier of Bad Boy Lawn Mower Parts, we ensure that all parts are of the highest quality. Browse Bad Boy Parts Online for all your fuel tank and frame needs, and enjoy Free Shipping On Orders Over $100, making it easier to get your mower back in action without added shipping costs.

Bad Boy Mower Parts Lookup

2024 Revolt (48"-61" Decks) - Fuel Tank & Frame
  Position Number SKU Product Title Price
1 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
2 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
3 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
4 072-0051-00 072-0051-00 - Tank Strap 13.5" (See Models Used On For Details)
$11.34
5 031-0093-00 031-0093-00 - 2019-2022 Stand On Deck Lever Lock
$24.12
6 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
7 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
8 018-0084-00 018-0084-00 - 3/8 -16 x 3 Hex bolt
$2.99
9 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
10 069-4012-00 069-4012-00 - Revolt Lift Grip (See Models Used On For Details)
$14.19
11 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
12 020-1001-00 020-1001-00 - Zinc-Plated Steel Reusable Cotter Pin No Longer Available
Obsolete.
13 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
14 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
15 018-0038-00 018-0038-00 - 1/2-13 x 7" Carriage Bolt
$2.99
16 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
17 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
19 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99

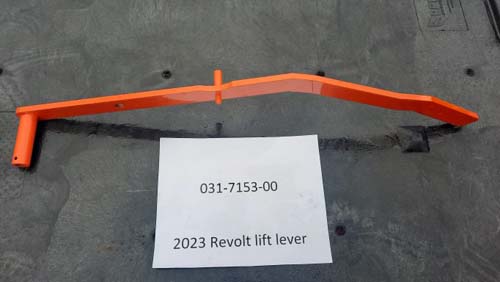

20 031-7153-00 031-7153-00 - 2023 Revolt Lift Lever--Orange
$74.85
22 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
25 025-0081-00 025-0081-00 - Stand On Spacer 2.5" With Shoulder
$14.97
26 025-5343-00 025-5343-00 - Revolt Spacer 2.5"
$11.01
27 067-0030-23 067-0030-23 - 2023 Revolt Tank 48,54,61 DECKS ONLY
$484.99
29 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
31 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
32 066-8070-00 066-8070-00 - Revolt fuel cap (See Models Used On For Details)
$32.09
33 040-4004-00 040-4004-00 - 2023 Revolt Deck Height Pin
$16.04
34 091-0025-00 091-0025-00 - Revolt Deck Height Indicator
$16.04

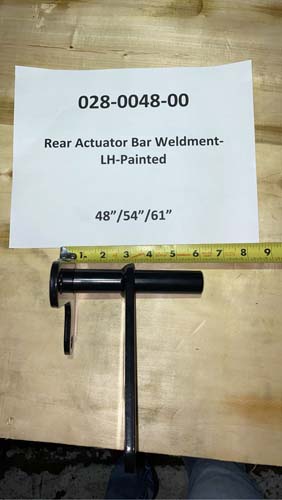

37 028-0048-00 028-0048-00 - Rear Actuator Bar Weldment-LH--Black
$64.19
38 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
39 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
40 015-0200-00 015-0200-00 - USE 063-6000-00 (obsolete)
use part #063-6000-00
$14.19
41 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
