2024 Revolt (48"-61" Decks) - Podium Assembly

2024 Revolt (48"-61" Decks) - Podium Assembly

The 2024 Revolt (48"-61" Decks) Podium Assembly is an essential part of your mower's design, and Bad Boy Mower Parts offers complete assemblies to replace or upgrade the existing one. The podium assembly is vital for controlling your mower and ensuring smooth operation, and we carry a full selection of Bad Boy Mower Parts to maintain it. Our Bad Boy Mower Part Diagrams make it easy to identify each part, whether you're looking for specific components or need a complete assembly. As a provider of Bad Boy Lawn Mower Parts, we ensure that all podium parts meet the highest standards of quality and durability. Shop for Bad Boy Parts Online and take advantage of Free Shipping On Orders Over $100, so you can get your podium assembly quickly and without the added cost of shipping.

Bad Boy Mower Parts Lookup

2024 Revolt (48"-61" Decks) - Podium Assembly
  Position Number SKU Product Title Price
1A 086-0091-00 086-0091-00 - 2019 - 2025 Revolt Wiring Harness
$363.44
2 035-0006-19 035-0006-19 - Push-Rod Assembly
$46.84
4 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99

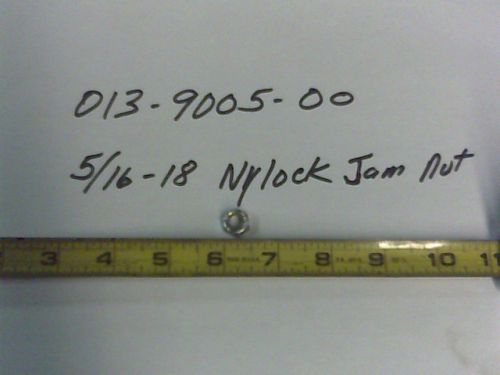

5 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
6 045-0001-00 045-0001-00 - 2023 Revolt Platform Plastic Knobs
$16.04
7 071-6004-22 071-6004-22 - 2022 48, 54, 61 Revolt seat pad
$210.99

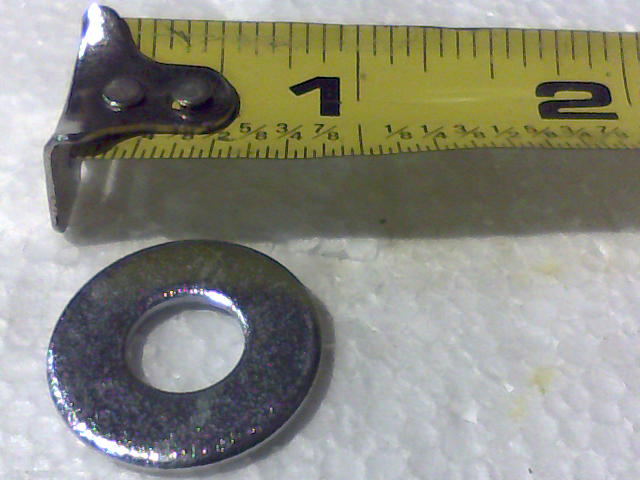

8 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99

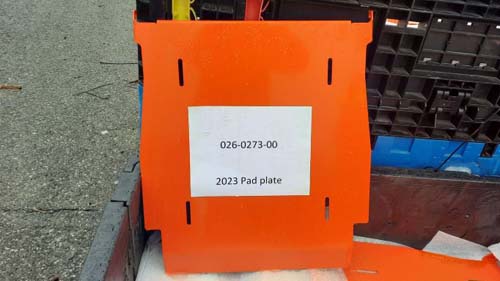

10 026-0273-00 026-0273-00 - 2023 Pad Plate--Orange
$106.99
11 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99

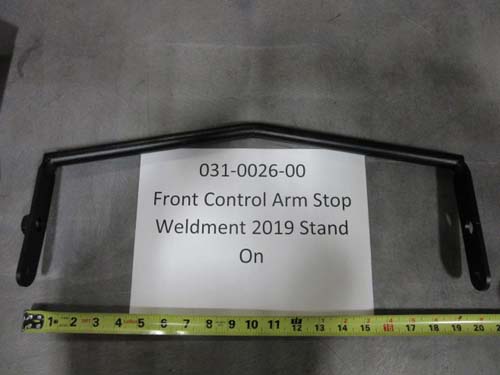

13 031-0026-00 031-0026-00 - Front Control Arm Stop 2019-2022 Revolt
$61.09
20 071-6005-00 071-6005-00 - Revolt Cup Holder (See Models Used On For Details)
$22.71

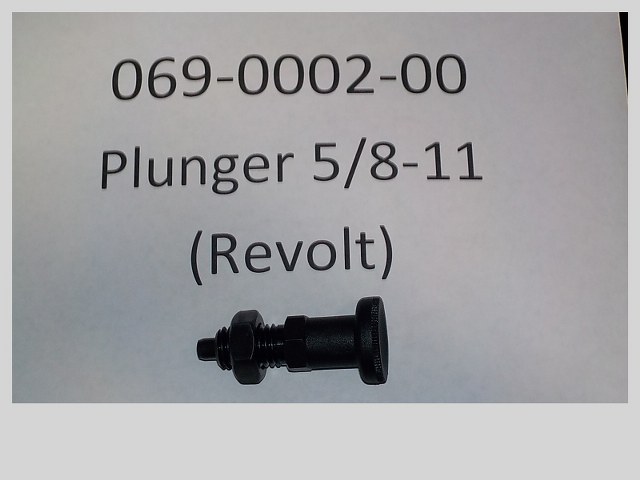

22 069-0002-00 069-0002-00 - Retractable Spring Plunger Black Steel 5/8-11
$84.52
37 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
38 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
41 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99

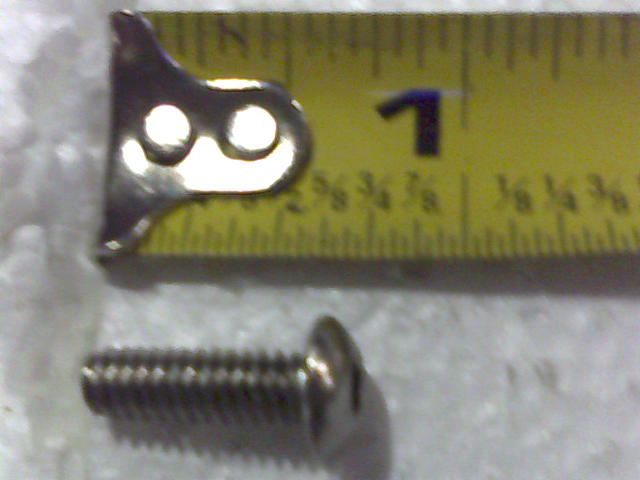

42 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99

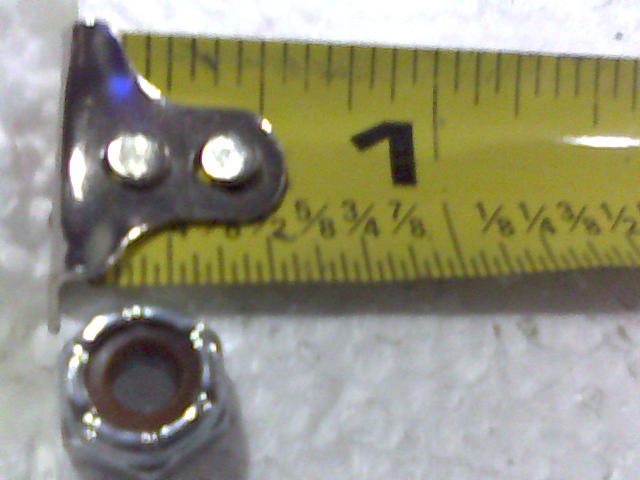

51 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
52 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
53 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
54 026-0270-00 026-0270-00 - 2023 Podium Panel Right--Orange
$42.79
55 024-0016-00 024-0016-00 - 2023 Expandable Locking Grommet No Longer Available
Obsolete.

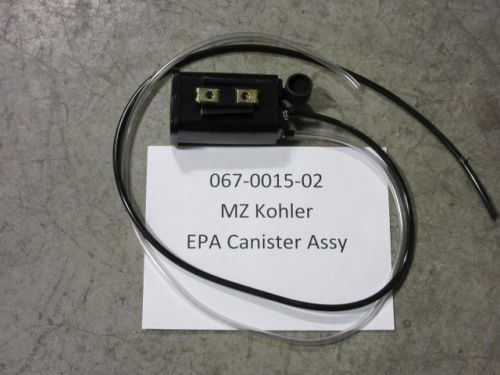

62 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
64 026-0280-00 026-0280-00 - 2023 Podium Panel Left--Orange
$42.79

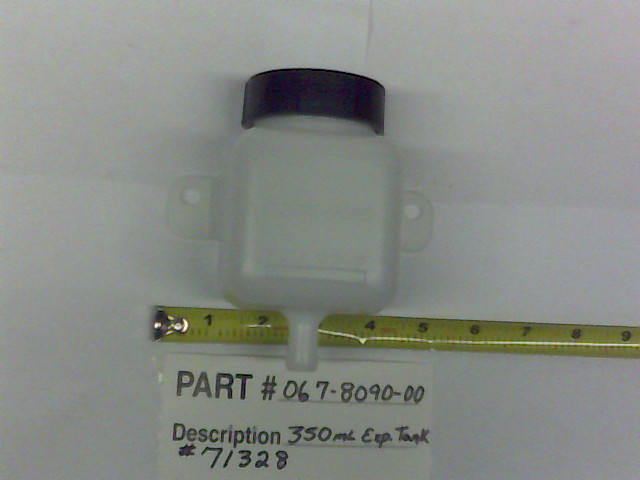

67 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
69 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
70 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
72 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
73 086-1202-19 086-1202-19 - Relay Terminal
$24.97
