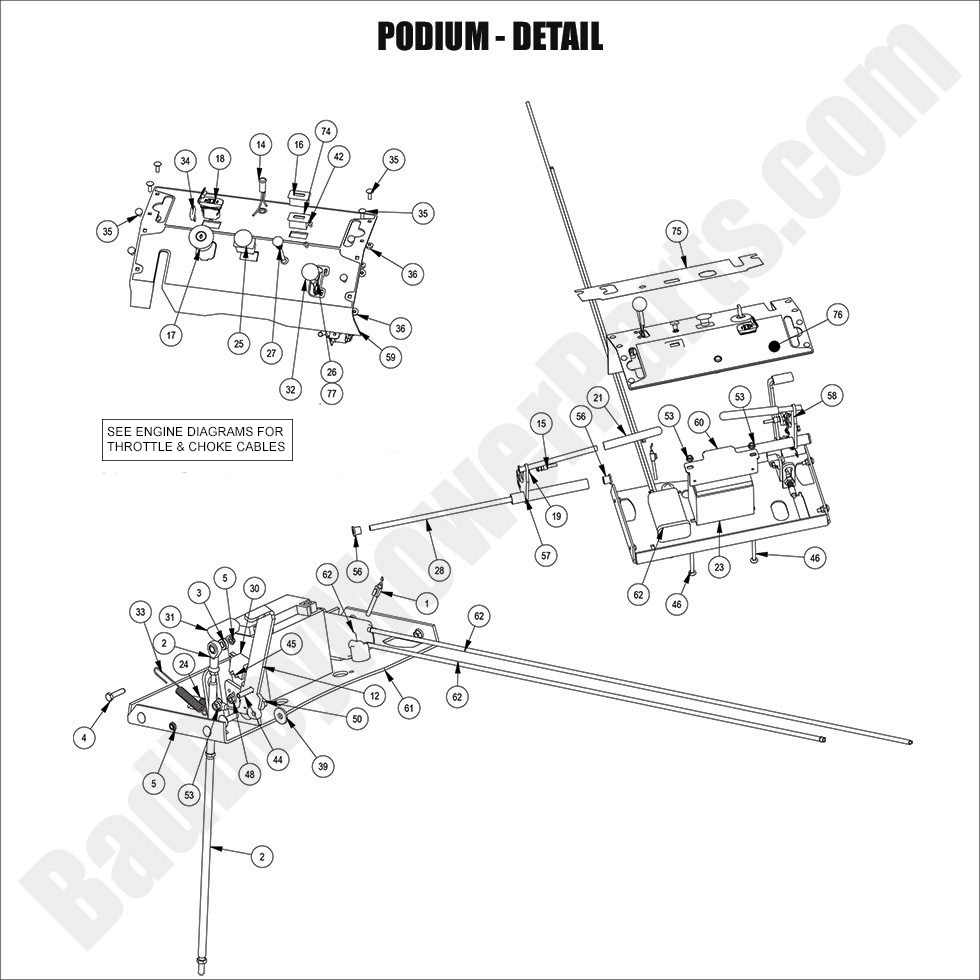

2024 Revolt (48"-61" Decks) - Podium - Detail

2024 Revolt (48"-61" Decks) - Podium - Detail

The 2024 Revolt (48"-61" Decks) Podium - Detail is a crucial part of the overall design of your mower. At Bad Boy Mower Parts, we provide the high-quality parts necessary to maintain and repair the podium on your 2024 Revolt (48"-61" Decks). From the podium controls to the structural components, our selection of Bad Boy Mower Parts ensures a smooth operation and long-lasting performance. We also offer Bad Boy Mower Part Diagrams to assist you in identifying and replacing any part on the podium. As a trusted provider of Bad Boy Lawn Mower Parts, we prioritize quality and reliability, ensuring that your podium parts stand the test of time. Shopping for Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can have your podium parts delivered directly to you without additional shipping charges.

Bad Boy Mower Parts Lookup

2024 Revolt (48"-61" Decks) - Podium - Detail
  Position Number SKU Product Title Price
2 035-0006-19 035-0006-19 - Push-Rod Assembly
$46.84
3 025-2001-00 025-2001-00 - ACS Spacer 3/4x3/8x1/4
$15.60
4 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
5 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
12 069-2013-00 069-2013-00 - 2019 Revolt Brake Handle
$109.99
14 089-1000-00 089-1000-00 - Oil Light
$12.63
15 086-0015-00 086-0015-00 - Safety Switch Harness
$70.27
16 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
17 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
18 077-2076-00 077-2076-00 - USB Port
$46.84
19 077-1000-00 077-1000-00 - Magnet-Steering Arm
$14.97
21 069-2014-00 069-2014-00 - 2019-2022 Cushioned Grip (See Models Used On For Details)
$8.01
24 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
25 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
26 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54

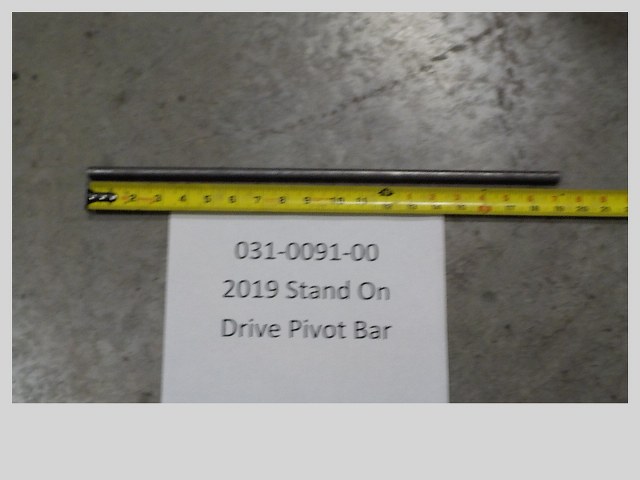

28 031-0091-00 031-0091-00 - Drive Pivot Bar 2020-2022 Revolt
$35.48
30 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99

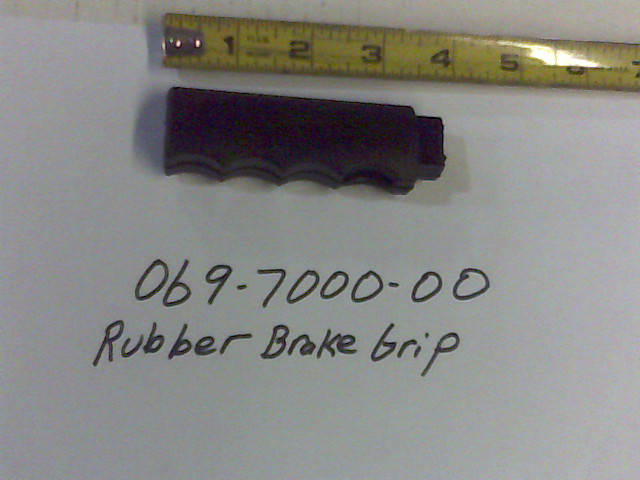

31 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
32 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
33 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
34 042-9000-00 042-9000-00 - Ignition Key
$4.06
35 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
36 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
39 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
42 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
44 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
45 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
46 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
48 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
50 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
53 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
56 032-0005-00 032-0005-00 - 2023 Revolt Drive Arm Bushings
$2.99

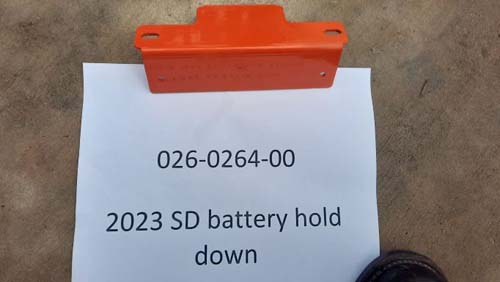

60 026-0264-00 026-0264-00 - 2023-2025 Stand on Battery Hold Down
$16.04
62 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
74 083-4050-00 083-4050-00 - Tachometer For Briggs/Kohler/Yamaha EFI Units (See Models Used On For Details)
$80.24
