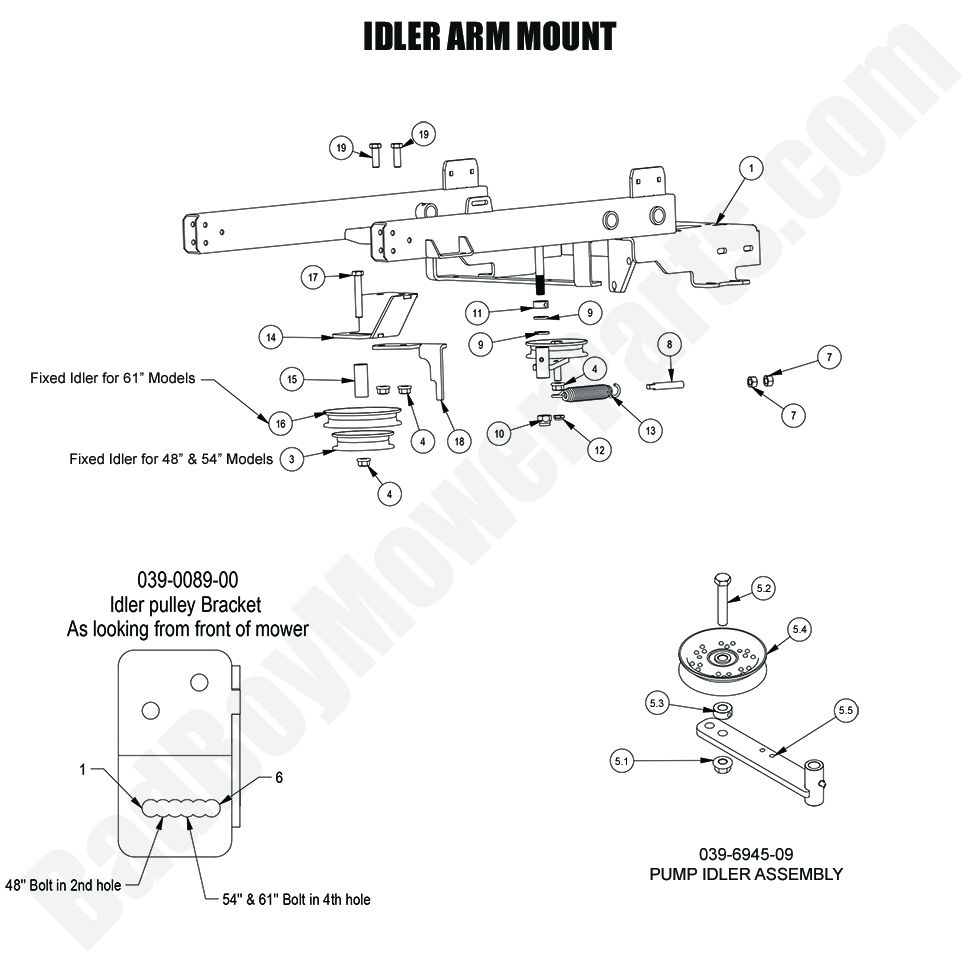

2024 Revolt (48"-61" Decks) - Idler Arm Mount

2024 Revolt (48"-61" Decks) - Idler Arm Mount

For the 2024 Revolt (48"-61" Decks) Idler Arm Mount, Bad Boy Mower Parts offers top-quality replacement components to ensure your mower operates efficiently. The idler arm mount plays a vital role in the mower’s deck and drive system, and if it becomes worn or damaged, it can affect performance. We carry a range of Bad Boy Mower Parts designed specifically for your 2024 Revolt (48"-61" Decks). Our Bad Boy Mower Part Diagrams make it easy to identify and install the correct parts for your mower's idler arm system. With our extensive inventory of Bad Boy Lawn Mower Parts, you can be confident in the quality and durability of each component. Shop Bad Boy Parts Online, and enjoy Free Shipping On Orders Over $100, ensuring your parts arrive quickly and at no extra cost, so your mower is back in top condition in no time.

Bad Boy Mower Parts Lookup

2024 Revolt (48"-61" Decks) - Idler Arm Mount
  Position Number SKU Product Title Price
1 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
3 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5.0 039-6945-09 039-6945-09 - Pump Idler Assembly
$58.84
5.2 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
5.3 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
5.5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
7 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
8 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
11 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
12 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
13 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
14 039-0089-00 039-0089-00 - Idler Pulley Bracket Weldment 2019-2022 Revolt
$28.39
15 025-5343-00 025-5343-00 - Revolt Spacer 2.5"
$11.01
16 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
17 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
18 039-0119-00 039-0119-00 - Clutch Stop Bracket 2019-2022 Revolt
$10.21
19 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
