2024 Revolt (48"-61" Decks) - Spindle & Deck Idlers

2024 Revolt (48"-61" Decks) - Spindle & Deck Idlers

The 2024 Revolt (48"-61" Decks) Spindle & Deck Idlers are key components for your mower’s deck, and Bad Boy Mower Parts carries everything you need to keep them in top condition. The spindles and deck idlers ensure smooth blade rotation, and if either component fails, it can lead to a poor mowing experience. We offer a full range of Bad Boy Mower Parts designed for the 2024 Revolt (48"-61" Decks), including replacement spindles and deck idlers. To simplify the part replacement process, we provide Bad Boy Mower Part Diagrams that help you find the right components. As a leading provider of Bad Boy Lawn Mower Parts, we ensure that each part is made with durability in mind. Shop Bad Boy Parts Online, and take advantage of Free Shipping On Orders Over $100, so you can keep your mower performing at its best.

Bad Boy Mower Parts Lookup

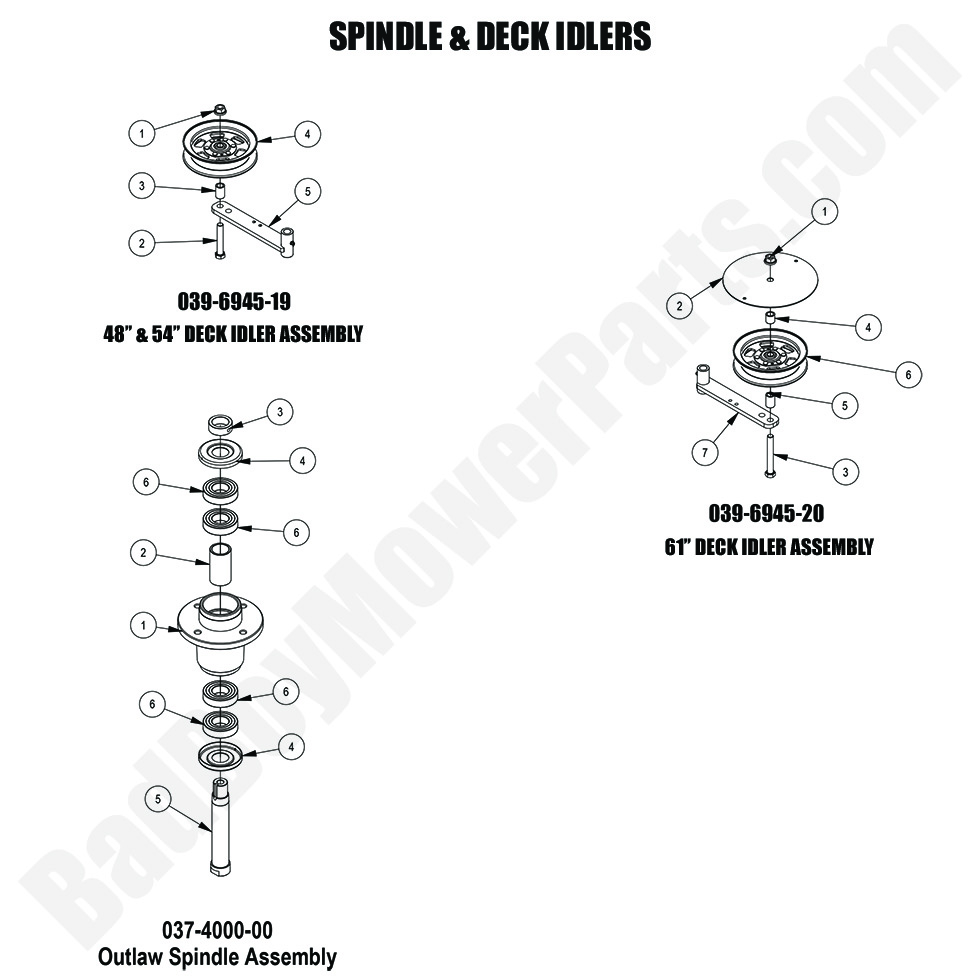

2024 Revolt (48"-61" Decks) - Spindle & Deck Idlers
  Position Number SKU Product Title Price
1.0 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
1.1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
1.2 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
1.3 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
1.4 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
1.5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
2.0 039-6945-20 039-6945-20 - Idler Assembly (61" Deck)
$58.84
2.2 014-4005-00 014-4005-00 - 61" Revolt Idler Pulley Cover
$21.39
2.3 018-0051-00 018-0051-00 - 1/2-13 X 3.75 Hex Bolt-
$2.99
2.4 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
3.0 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
3.2 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
3.3 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
3.4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
3.5 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
3.6 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
