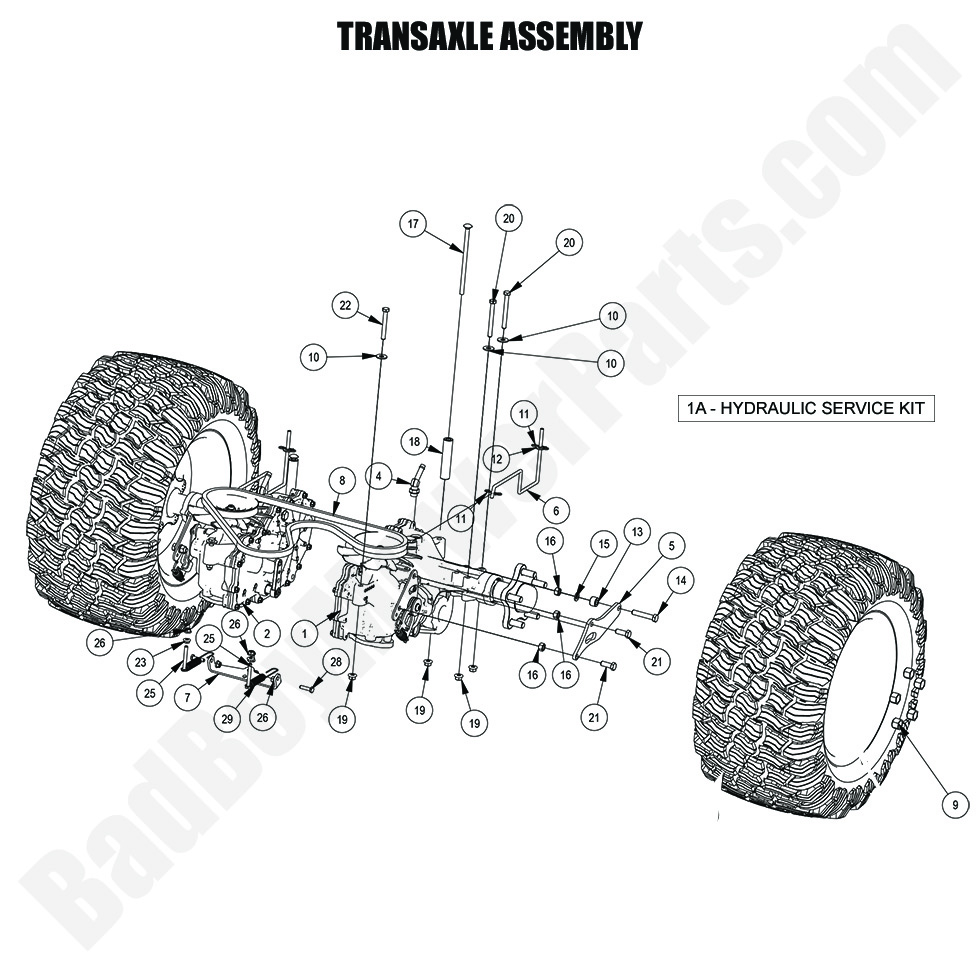

2024 Revolt (48"-61" Decks) - Transaxle Assembly

2024 Revolt (48"-61" Decks) - Transaxle Assembly

For the 2024 Revolt (48"-61" Decks) Transaxle Assembly, Bad Boy Mower Parts provides high-quality replacement components that ensure your mower operates smoothly. The transaxle assembly is a crucial part of the drivetrain, responsible for transferring power from the engine to the wheels. If your transaxle is worn out or malfunctioning, it can affect your mower’s performance and maneuverability. We offer a variety of Bad Boy Mower Parts designed to fit the 2024 Revolt (48"-61" Decks). Our Bad Boy Mower Part Diagrams help you easily locate the parts you need for an accurate replacement. As a trusted source for Bad Boy Lawn Mower Parts, we make sure all parts meet the highest standards of quality. Shopping for Bad Boy Parts Online is simple and efficient, and with Free Shipping On Orders Over $100, you can have your transaxle assembly delivered straight to your door at no extra cost.

Bad Boy Mower Parts Lookup

2024 Revolt (48"-61" Decks) - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74

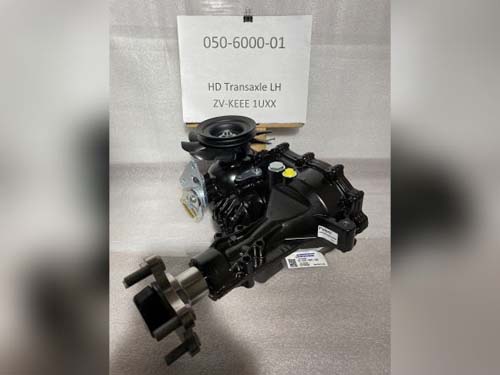

1 050-6000-01 050-6000-01 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-02
$819.99

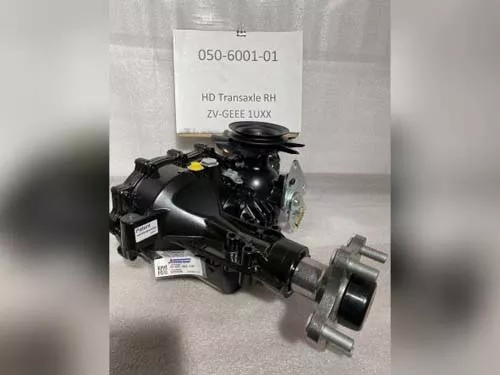

2 050-6001-01 050-6001-01 - ZT3400 Transaxle Right (obsolete)
use part #050-6001-02
$819.99
4 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
6 028-0071-00 028-0071-00 - Neutral Release Rod 2019-2024 Revolt
$29.95
7 039-0212-00 039-0212-00 - Brake Bracket (See Models Used On For Details)
$25.54
8 041-8052-00 041-8052-00 - 2019-2025 Revolt Drive Belt, 48", 54", 61" Decks Only
$80.24
9 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
10 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
11 044-2004-00 044-2004-00 - Bow Pin
$2.99
12 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
13 025-2004-00 025-2004-00 - ACS Spacer 3/4x3/8x1/2
$15.60
14 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
15 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
16 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
18 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
20 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
21 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
22 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
23 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99

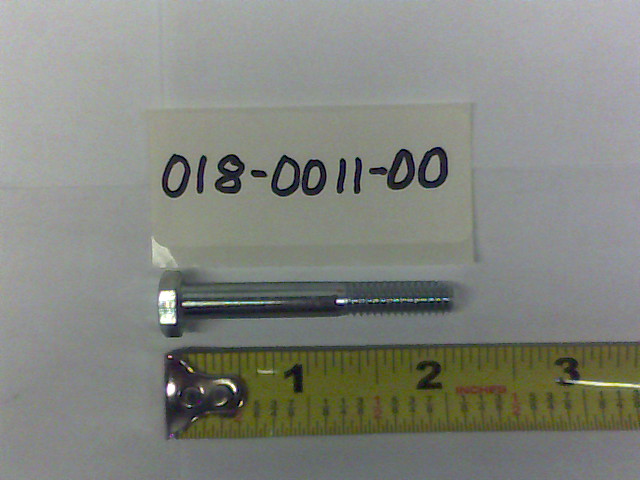

25 018-0011-00 018-0011-00 - 1/4-20 x 2 Hex Bolt
$2.99
26 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
28 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
29 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
