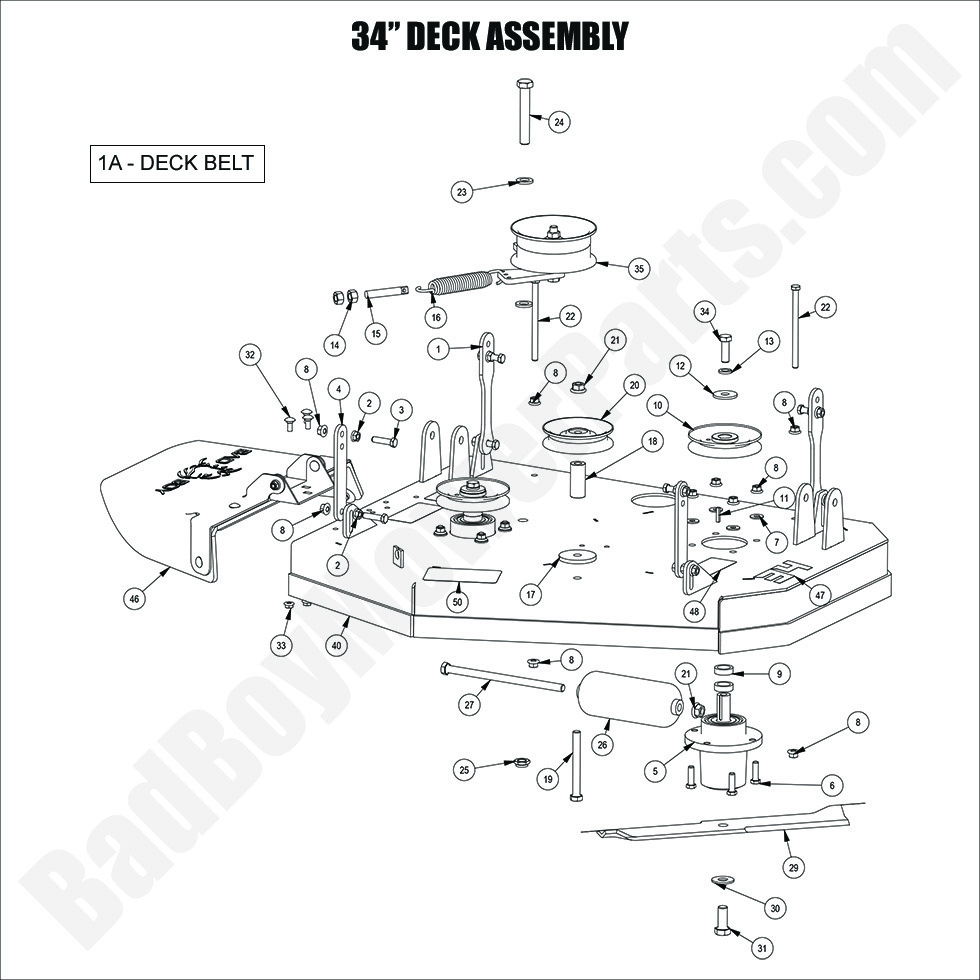

2024 Revolt SD - 34" Deck Assembly

2024 Revolt SD - 34" Deck Assembly

For the 2024 Revolt SD 34" Deck Assembly, Bad Boy Mower Parts has all the components you need to maintain or replace your mower's deck. The 34" deck assembly plays a crucial role in the cutting performance of your mower, and we offer durable parts that ensure a precise and efficient cut every time. Our Bad Boy Mower Parts catalog includes replacement deck assemblies, blades, and pulleys specifically designed for your 2024 Revolt SD. We provide detailed Bad Boy Mower Part Diagrams, making it easy to locate and replace each part. As a trusted supplier of Bad Boy Lawn Mower Parts, we prioritize high-quality materials that stand the test of time. Shopping for Bad Boy Parts Online is quick and simple, and with Free Shipping On Orders Over $100, you can have your deck assembly delivered directly to you without paying extra shipping costs.

Bad Boy Mower Parts Lookup

2024 Revolt SD - 34" Deck Assembly
  Position Number SKU Product Title Price
1A 041-4024-00 041-4024-00 - 34" Revolt SD Deck Belt
$72.75
1B 210-3450-00 210-3450-00 - Revolt SD 34" Mulch Kit Assembly
$318.45
1C 088-3642-00 088-3642-00 - 34"/42" Revolt SD ACS Kit
$249.00
1 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
4 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
5 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
6 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
9 025-0060-00 025-0060-00 - 36" Stand On Deck Spindle Spacer
$6.59
10 033-4820-00 033-4820-00 - Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
11 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
12 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
13 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
14 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
16 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
17 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
18 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
19 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
20 033-7026-00 033-7026-00 - 5" V Idler Pulley with 1/2" Bore (See Models Used On For Details)
$35.48
21 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
23 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
24 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
25 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
26 822-2055-00 822-2055-00 - Revolt SD Deck Roller
$42.75
27 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
29 038-0036-00 038-0036-00 Revolt 34" Deck Blade
$22.99
30 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
31 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
32 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
33 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
34 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
35 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
46 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
48 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
50 091-4058-00 091-4058-00 - 36" Revolt Deck Belt Route Decal No Longer Available
Obsolete.
