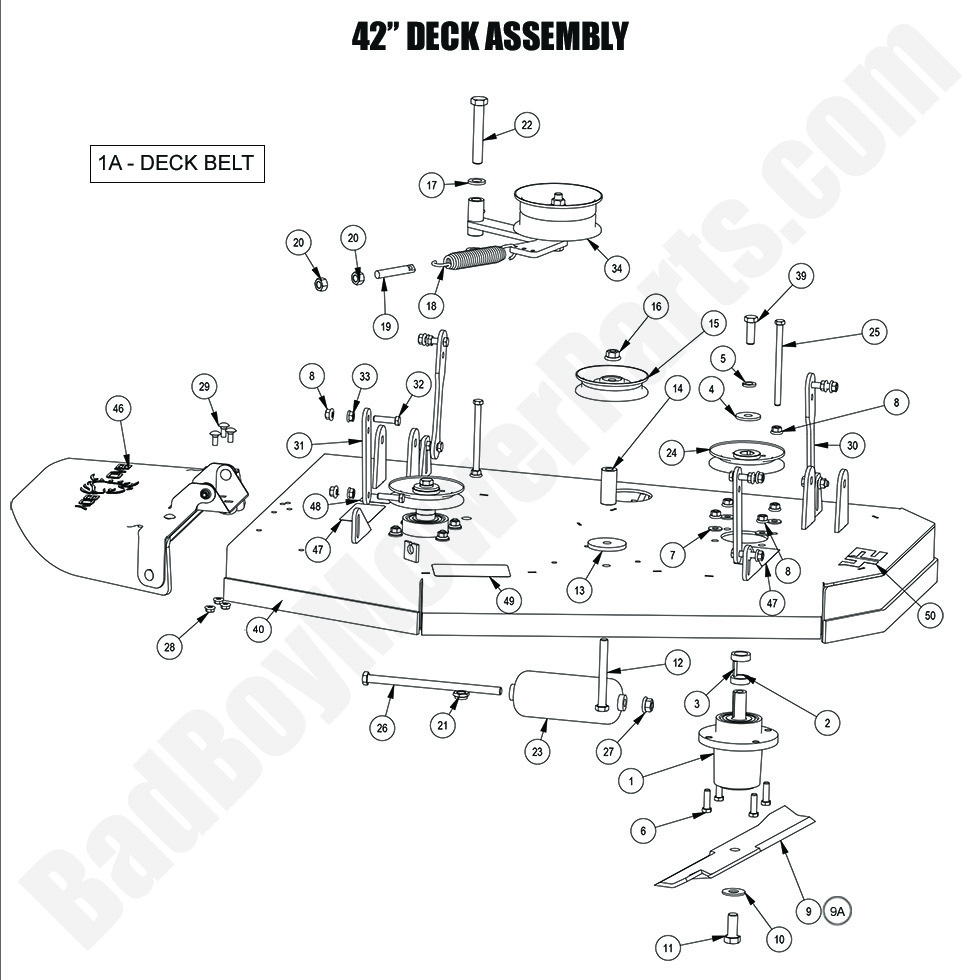

2024 Revolt SD - 42" Deck Assembly

2024 Revolt SD - 42" Deck Assembly

The 2024 Revolt SD 42" Deck Assembly is available at Bad Boy Mower Parts, providing everything you need to ensure your mower's deck is performing optimally. The 42" deck is an essential part of your mower's cutting system, and we offer a full range of Bad Boy Mower Parts to help with maintenance and repairs. Whether you're replacing the entire deck assembly or individual parts like spindles or blades, we have you covered. Our Bad Boy Mower Part Diagrams make it simple to find and install the parts you need. As a provider of Bad Boy Lawn Mower Parts, we guarantee that all parts are built for durability and reliability. Shop Bad Boy Parts Online for your 42" deck assembly and enjoy Free Shipping On Orders Over $100, so you can get your mower back in action without additional shipping costs.

Bad Boy Mower Parts Lookup

2024 Revolt SD - 42" Deck Assembly
  Position Number SKU Product Title Price
1A 041-4023-00 041-4023-00 - 42" Deck Belt
$78.01
1B 210-4244-00 210-4244-00 - 42" SD Mulch Kit Assembly
$318.45
1C 088-3642-00 088-3642-00 - 34"/42" Revolt SD ACS Kit
$249.00
1 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
2 025-0060-00 025-0060-00 - 36" Stand On Deck Spindle Spacer
$6.59
3 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
4 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
5 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
6 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
9A 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
9 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
10 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
11 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
12 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
13 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
14 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
15 033-7026-00 033-7026-00 - 5" V Idler Pulley with 1/2" Bore (See Models Used On For Details)
$35.48
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
18 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
19 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
20 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
21 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
22 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
23 822-2055-00 822-2055-00 - Revolt SD Deck Roller
$42.75
24 033-4301-00 033-4301-00 - Spindle Pulley
$42.58
25 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
26 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
27 013-0010-00 013-0010-00 - 1/2-13 Mechanical Lock Nut
$2.99
28 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
29 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
30 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
31 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
32 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
33 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
34 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
39 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
46 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
47 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
48 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
49 091-4058-00 091-4058-00 - 36" Revolt Deck Belt Route Decal No Longer Available
Obsolete.
