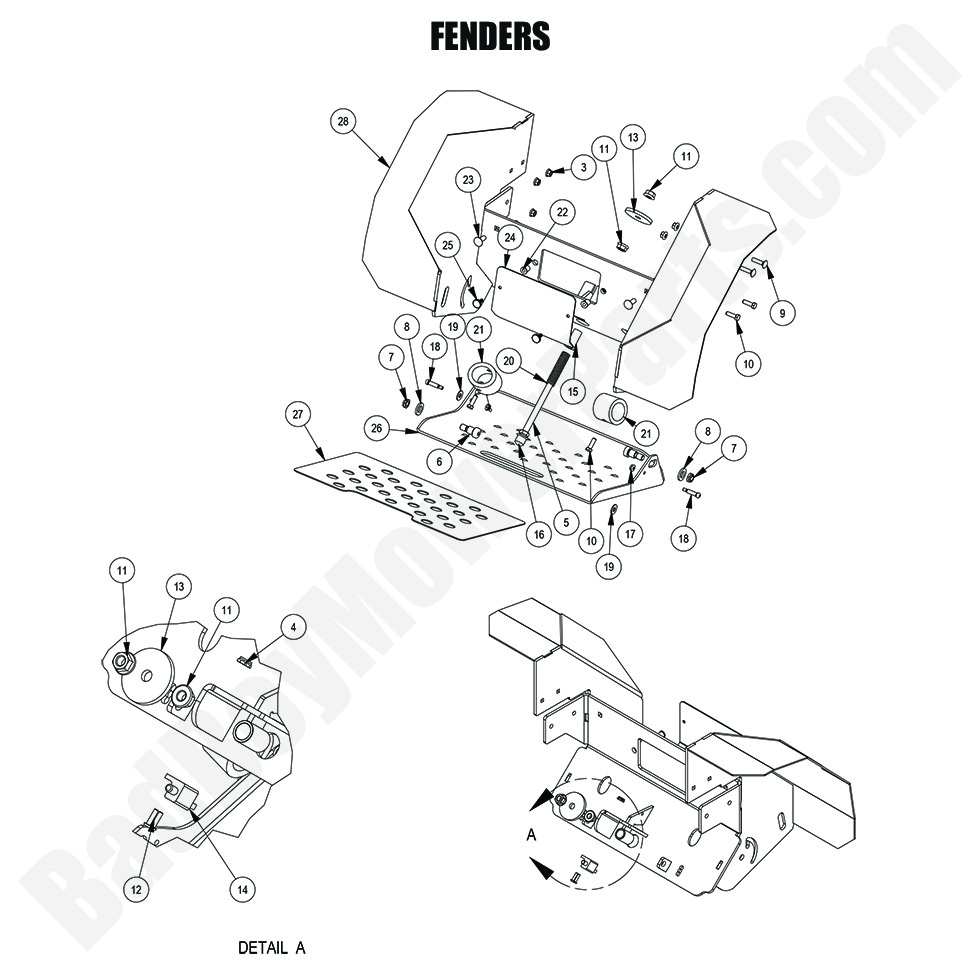

2024 Revolt SD - Fenders

2024 Revolt SD - Fenders

The 2024 Revolt SD Fenders are important components that protect your mower from debris and keep it looking sharp. At Bad Boy Mower Parts, we offer durable, high-quality fenders specifically designed for the 2024 Revolt SD. Whether you’re replacing damaged fenders or upgrading for better protection, we have what you need. Our Bad Boy Mower Parts catalog includes a variety of fender options, ensuring a perfect fit for your mower. For easy part identification, we also provide Bad Boy Mower Part Diagrams that show where each part fits on your 2024 Revolt SD. As a trusted provider of Bad Boy Lawn Mower Parts, we guarantee that all parts are built to last and withstand tough conditions. Shop Bad Boy Parts Online, and enjoy Free Shipping On Orders Over $100, so you can get your fenders delivered to you with no additional shipping fees.

Bad Boy Mower Parts Lookup

2024 Revolt SD - Fenders
  Position Number SKU Product Title Price
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
5 018-0062-00 018-0062-00 - 1/2-13 X 6 Hex Head Bolt Gr5
$3.29
6 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
7 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
8 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
9 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
12 018-8057-00 018-8057-00 - 10-24 X 3/4 Button Screw
$2.99
13 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
14 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
15 032-0006-00 032-0006-00 - Nylon 6 6 Sleeve Washer
$19.25
16 013-0029-00 013-0029-00 - Hex Nut Cap
$5.49
17 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
18 018-0059-00 018-0059-00 - Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
$4.39
19 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
20 034-1001-00 034-1001-00 - 3-1/8" x 0.75 OD x 0.568 ID Compression Spring
$12.83
21 087-0003-00 087-0003-00 - 2019-2022 Revolt Platform Dampener
$85.17
22 013-0057-00 013-0057-00 - Wellnut 1/4-20 x 5/8
$4.39
23 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
24 026-0063-00 026-0063-00 - 2019-2022 Revolt Access Panel Plate
$35.48
25 030-0015-00 030-0015-00 - 1/4-20 x 3/4 Knurled Thumb Screw
$16.04
26 026-0158-00 026-0158-00 - 36" Revolt Platform Plate (Not for 48"-61" Models)
$113.99
27 088-0051-00 088-0051-00 - Grip Tape for 026-0158-00
$25.67
