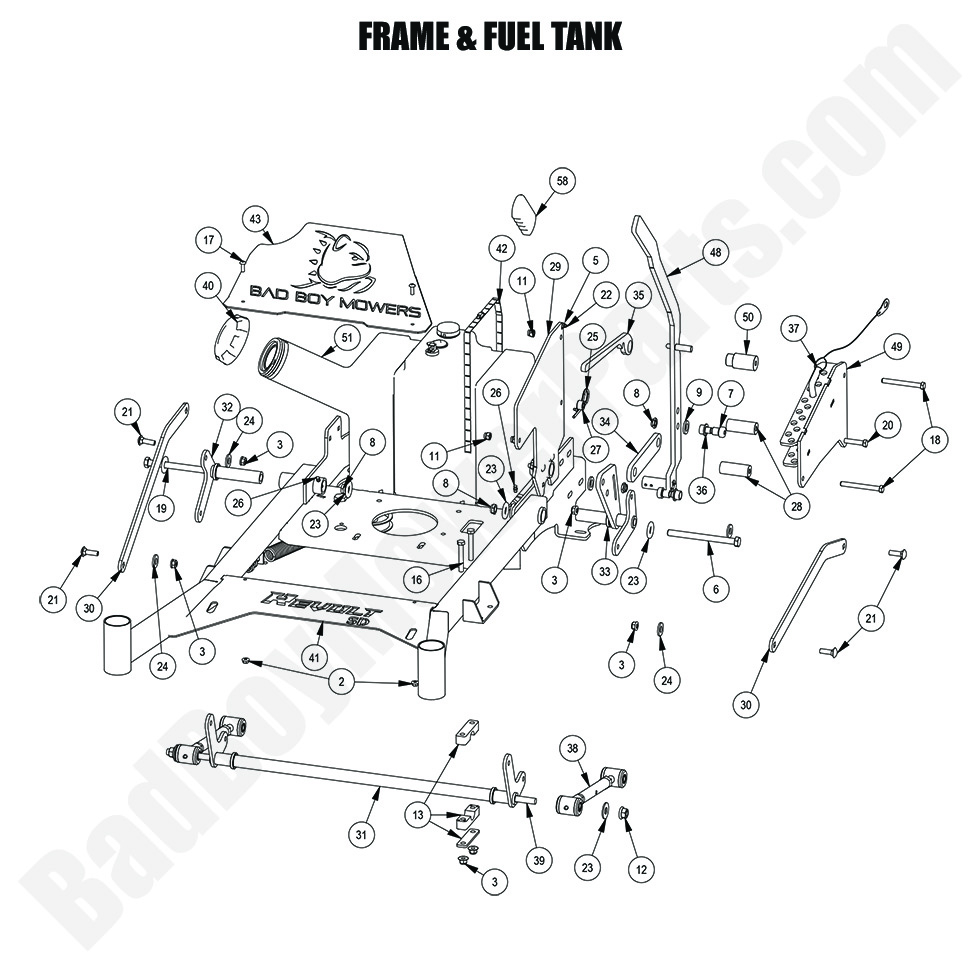

2024 Revolt SD - Frame & Fuel Tank

2024 Revolt SD - Frame & Fuel Tank

The 2024 Revolt SD Frame & Fuel Tank are critical components of your mower’s structure and power system. Bad Boy Mower Parts offers high-quality frames and fuel tanks designed for the 2024 Revolt SD. If you're experiencing issues with your frame or fuel tank, replacing these parts with genuine Bad Boy Mower Parts ensures your mower stays strong and reliable. Our Bad Boy Mower Part Diagrams help you easily find the right frame and fuel tank components for your mower. As a trusted source for Bad Boy Lawn Mower Parts, we offer parts that meet or exceed OEM specifications, ensuring durability and proper fitment. Shopping for Bad Boy Parts Online is fast and easy, and with Free Shipping On Orders Over $100, you can have the frame and fuel tank delivered to you without paying any extra shipping charges.

Bad Boy Mower Parts Lookup

2024 Revolt SD - Frame & Fuel Tank
  Position Number SKU Product Title Price
2 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
6 018-0062-00 018-0062-00 - 1/2-13 X 6 Hex Head Bolt Gr5
$3.29
7 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
8 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
12 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
13 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
16 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
17 018-0058-00 018-0058-00 - 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head No Longer Available
Obsolete.
18 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
19 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
20 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
21 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
22 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
23 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
24 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
25 020-1001-00 020-1001-00 - Zinc-Plated Steel Reusable Cotter Pin No Longer Available
Obsolete.
26 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
27 025-2004-00 025-2004-00 - ACS Spacer 3/4x3/8x1/2
$15.60
28 025-5343-00 025-5343-00 - Revolt Spacer 2.5"
$11.01
31 028-0036-00 028-0036-00 Revolt Front Actuator Bar Weldment
$74.89
35 031-0093-00 031-0093-00 - 2019-2022 Stand On Deck Lever Lock
$24.12
36 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
37 040-4004-00 040-4004-00 - 2023 Revolt Deck Height Pin
$16.04
38 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
39 048-6058-00 048-6058-00 - 2020-2022 36" Revolt Turnbuckle Rod
$42.79
40 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
41 070-5223-00 070-5223-00 - 2023-Newer Revolt SD Frame Weldment--Orange
$1299.99
42 072-0051-00 072-0051-00 - Tank Strap 13.5" (See Models Used On For Details)
$11.34
50 025-0081-00 025-0081-00 - Stand On Spacer 2.5" With Shoulder
$14.97
51 067-0030-00 067-0030-00 - 2015-2017 Stand-On & 2019-2022 Revolt Fuel Tank
$261.99
58 069-4012-00 069-4012-00 - Revolt Lift Grip (See Models Used On For Details)
$14.19
