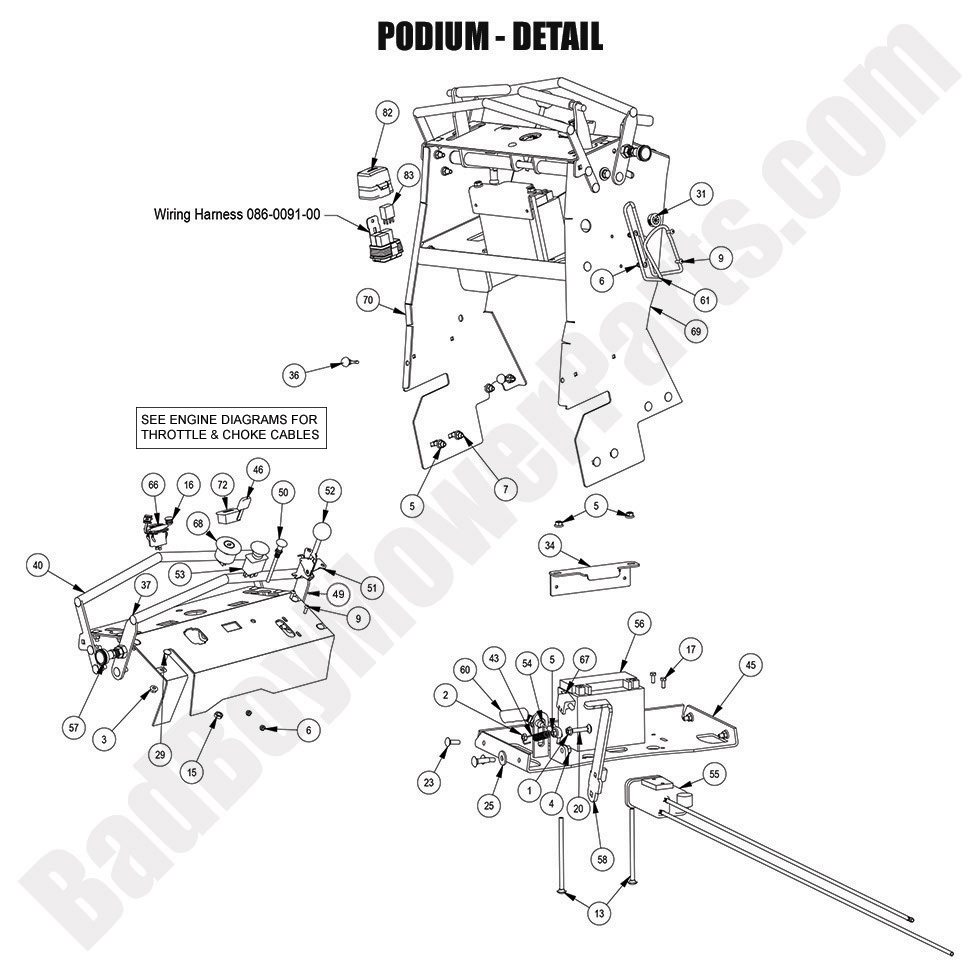

2024 Revolt SD - Podium - Detail

2024 Revolt SD - Podium - Detail

For the 2024 Revolt SD Podium - Detail, Bad Boy Mower Parts provides the detailed components necessary to keep your podium in top condition. The podium is a vital part of your mower, and our parts ensure it remains functional and ergonomic. Whether you’re looking for individual podium components or the complete assembly, we offer a wide range of Bad Boy Mower Parts specifically designed for your 2024 Revolt SD. To help you make accurate replacements, we offer Bad Boy Mower Part Diagrams that break down each part of the podium. As a trusted provider of Bad Boy Lawn Mower Parts, we prioritize quality and reliability. Shopping for Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can get the podium parts you need delivered directly to your door without paying extra shipping fees.

Bad Boy Mower Parts Lookup

2024 Revolt SD - Podium - Detail
  Position Number SKU Product Title Price
1A 086-0091-00 086-0091-00 - 2019 - 2025 Revolt Wiring Harness
$363.44
1 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
2 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
3 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
7 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
9 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
13 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
15 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
16 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
17 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
20 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
23 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
25 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
29 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
31 024-0016-00 024-0016-00 - 2023 Expandable Locking Grommet No Longer Available
Obsolete.
34 026-0264-00 026-0264-00 - 2023-2025 Stand on Battery Hold Down
$16.04
36 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
37 031-0034-00 031-0034-00 - 36" Front Control Arm Stop Weldment--Bla
$32.05
43 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
46 042-9000-00 042-9000-00 - Ignition Key
$4.06
51 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
52 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
53 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
54 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
55 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
57 069-0002-00 069-0002-00 - Retractable Spring Plunger Black Steel 5/8-11
$84.52
58 069-2013-00 069-2013-00 - 2019 Revolt Brake Handle
$109.99
60 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
61 071-6005-00 071-6005-00 - Revolt Cup Holder (See Models Used On For Details)
$22.71
66 077-2076-00 077-2076-00 - USB Port
$46.84
67 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
68 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
72 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
82 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
83 086-1202-19 086-1202-19 - Relay Terminal
$24.97
