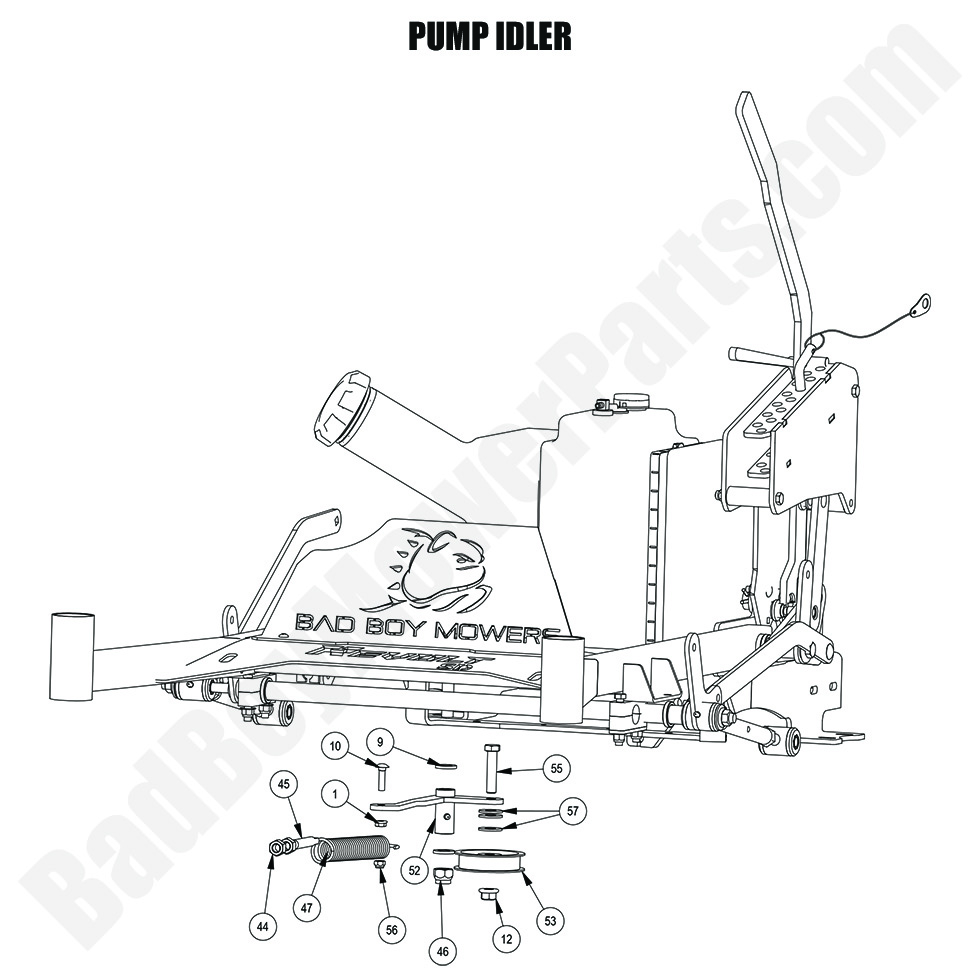

Click Image to Change Diagram
For the 2024 Revolt SD Pump Idler, Bad Boy Mower Parts offers high-quality idler components designed to keep your mower running smoothly. The pump idler plays an important role in maintaining proper tension on the belt system, ensuring that the mower operates efficiently. If your pump idler is worn or damaged, we provide reliable replacement parts that fit the 2024 Revolt SD. Our Bad Boy Mower Parts catalog includes all the necessary components for your pump idler, and Bad Boy Mower Part Diagrams make it easy to identify the right parts. As a trusted supplier of Bad Boy Lawn Mower Parts, we offer parts that are durable and built to last. Shopping for Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can get your pump idler components delivered to you quickly and without additional shipping charges.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 013-9002-00 | 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations |
$2.99
|
||
9 | 019-6017-00 | 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon |
$2.99
|
||
10 | 018-4703-00 | 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt |
$2.99
|
||
12 | 013-8050-00 | 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon |
$2.99
|
||
44 | 013-7018-00 | 013-7018-00 - 1/2-13 Hex Nuts Zinc |
$2.99
|
||
45 | 018-2004-50 | 018-2004-50 - All Thread (See Models Used On For Details) |
$12.94
|
||
47 | 034-9050-00 | 034-9050-00 - Pump Idler Spring - Big Diameter |
$17.11
|
||
52 | 039-6947-00 | 039-6947-00 - 2020-2022 36" Pump Idler Weldment |
$32.09
|
||
53 | 033-1876-00 | 033-1876-00 - Horizontal Pump Pulley |
$28.39
|
||
55 | 018-6037-00 | 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt |
$2.99
|
||
56 | 013-8047-00 | 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc |
$2.99
|
||
57 | 019-5010-00 | 019-5010-00 -.565x1.25x.095 Washer Brass |
$2.99
|
