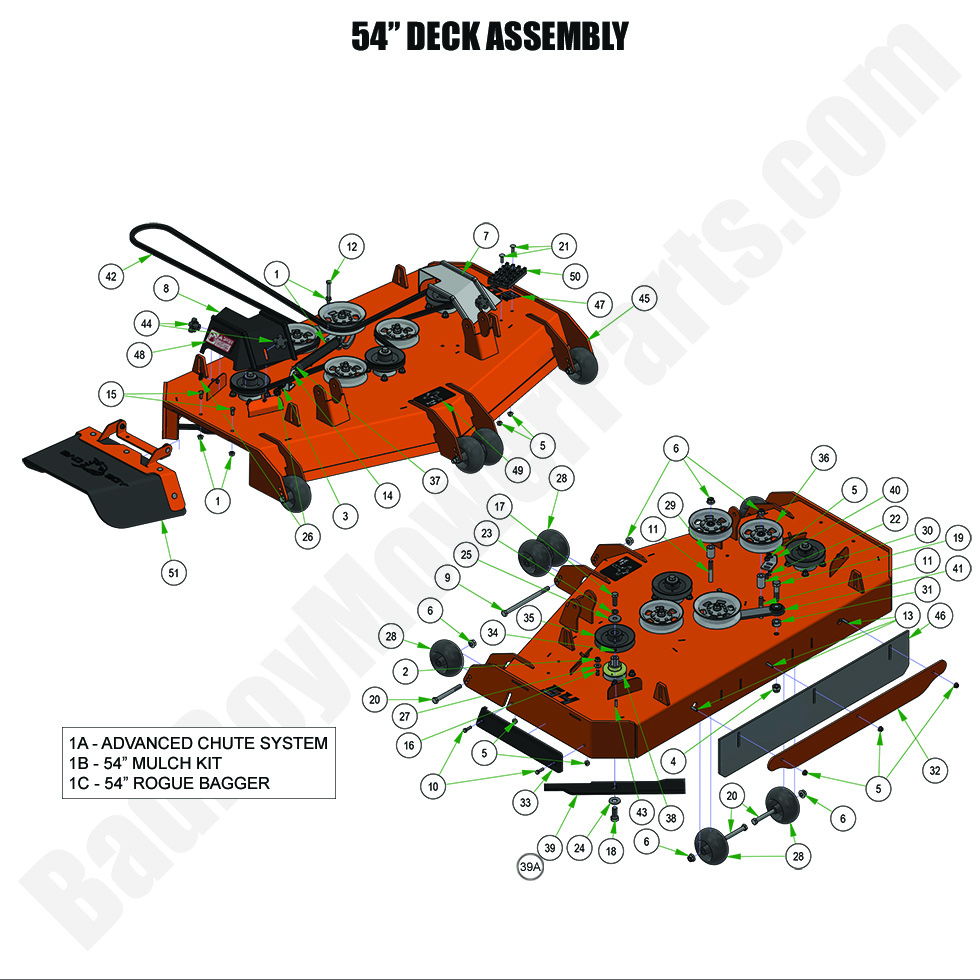

2024 Rogue - 54" Deck Assembly

2024 Rogue - 54" Deck Assembly

The 2024 Rogue 54" Deck Assembly is built for durability and precision cutting, ensuring your mower delivers a flawless performance. At Bad Boy Mower Parts, we provide everything needed to maintain or replace your 54" deck components, including belts, spindles, and blades. Our Bad Boy Mower Part Diagrams help you locate the correct deck parts for easy installation and repairs. Whether you’re replacing worn-out components or upgrading for better performance, our selection of Bad Boy Lawn Mower Parts ensures your mower stays in peak condition. Ordering from Bad Boy Parts Online is quick and convenient, allowing you to find exactly what you need without the hassle. Plus, we offer Free Shipping On Orders Over $100, so you can save on costs while keeping your mower in top shape. Visit BadBoyMowerParts.com today to browse our full selection of deck parts for your 2024 Rogue.

Bad Boy Mower Parts Lookup

2024 Rogue - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-5419-00 088-5419-00 - Advanced Chute System for 2019-2025 54" Outlaws
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1C 092-4004-23 092-4004-23 Top Discharge Bagger (2019-2025 54" Rebel & Rogue)
$2799.99
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 099-7000-00 099-7000-00 - Deck Step Assembly (See Models Used On For Details)
$53.49
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

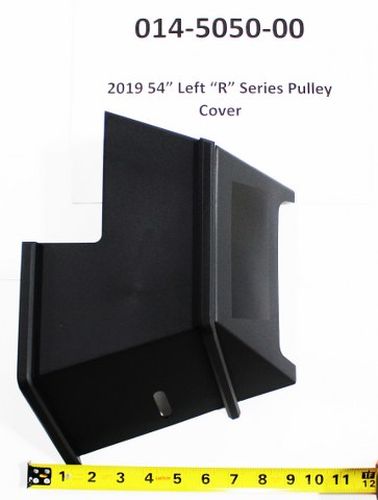

7 014-5050-00 014-5050-00 - 54" Deck Left Pulley Cover 2019-2022 Rebel & Rogue
$17.86

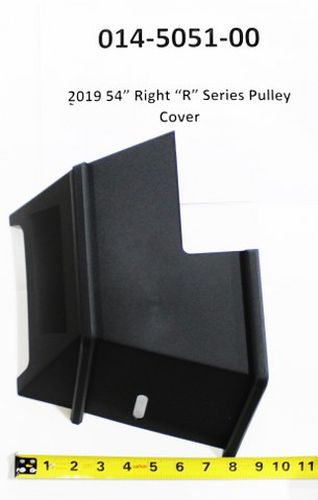

8 014-5051-00 014-5051-00 - 54" Deck Right Pulley Cover 2019-2025 Rebel & Rogue
$17.86
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62

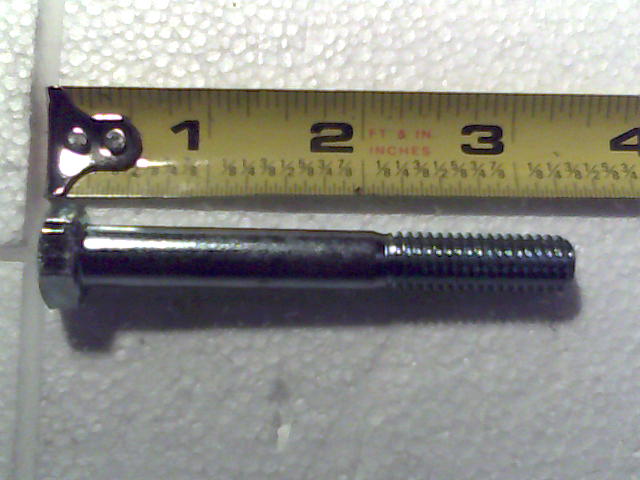

12 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
13 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99

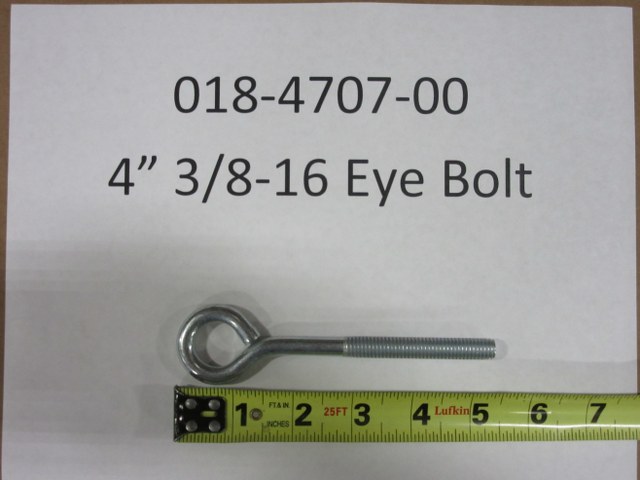

14 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
15 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
16 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
20 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
21 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
22 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
23 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
24 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
25 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
26 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
27 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
28 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
29 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
30 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
31 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37

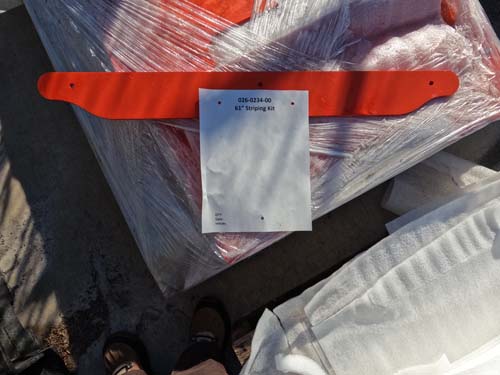

32 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
33 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99

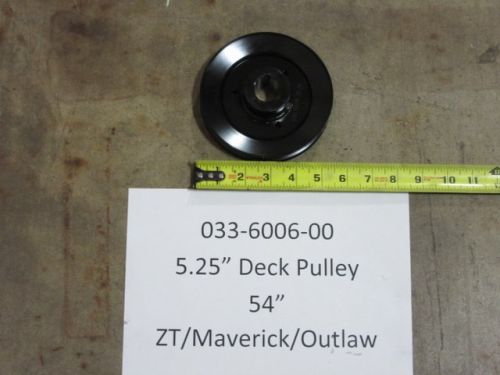

35 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
36 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
37 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
38 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
39A 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
39 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99

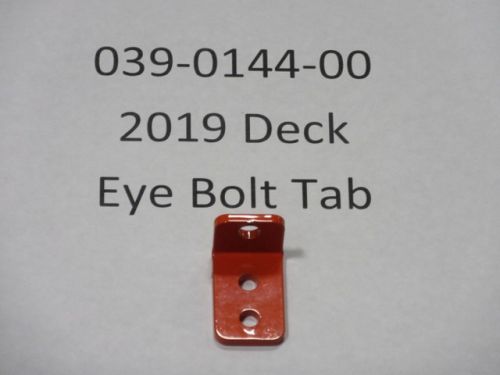

40 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19

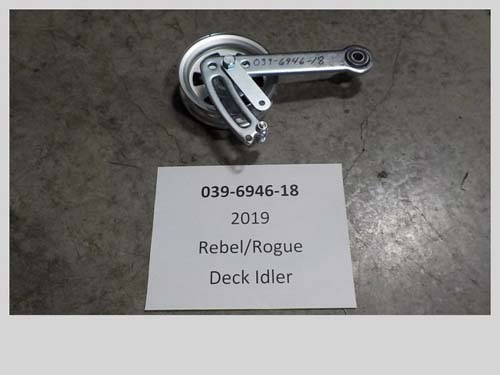

41 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
42 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
43 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
44 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39

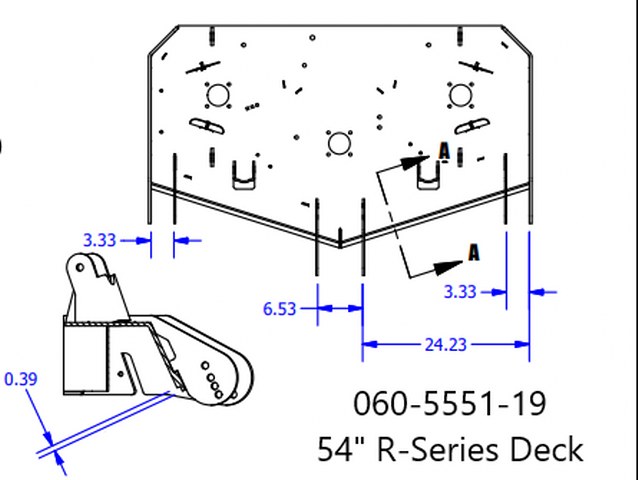

45 060-5551-19 060-5551-19 - 2019 54" Sloped Deck Weldment
$1099.99
46 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
47 091-0504-00 091-0504-00 - MY24 54" Deck Decal
$10.99

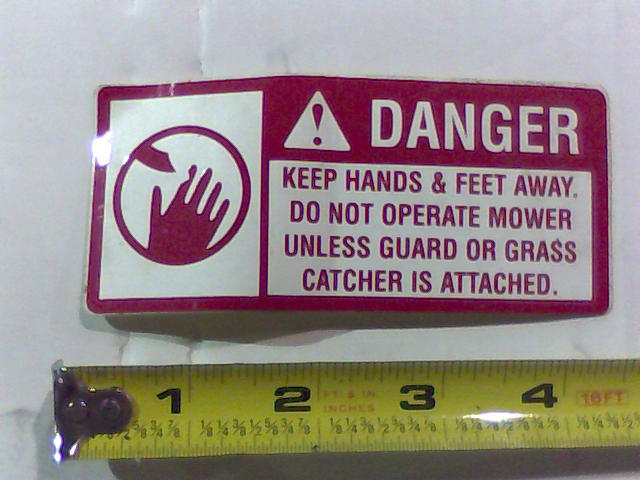

48 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
49 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
51 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
