2024 Rogue - Drive Arm Assembly

2024 Rogue - Drive Arm Assembly

The 2024 Rogue Drive Arm Assembly plays a critical role in controlling the movement of your mower. If your drive arm assembly is showing signs of wear, Bad Boy Mower Parts carries all the essential components needed for a proper replacement. From drive arms to connecting hardware, we ensure your mower remains in peak operating condition. Our Bad Boy Mower Part Diagrams simplify the repair process, allowing you to identify and replace the correct parts easily. Using genuine Bad Boy Lawn Mower Parts guarantees long-lasting durability and reliable performance. Shopping for Bad Boy Parts Online ensures fast and convenient access to high-quality components for your mower. Plus, enjoy Free Shipping On Orders Over $100, making it even easier to get the parts you need at no extra cost. Browse our selection at BadBoyMowerParts.com today and keep your 2024 Rogue running like new.

Bad Boy Mower Parts Lookup

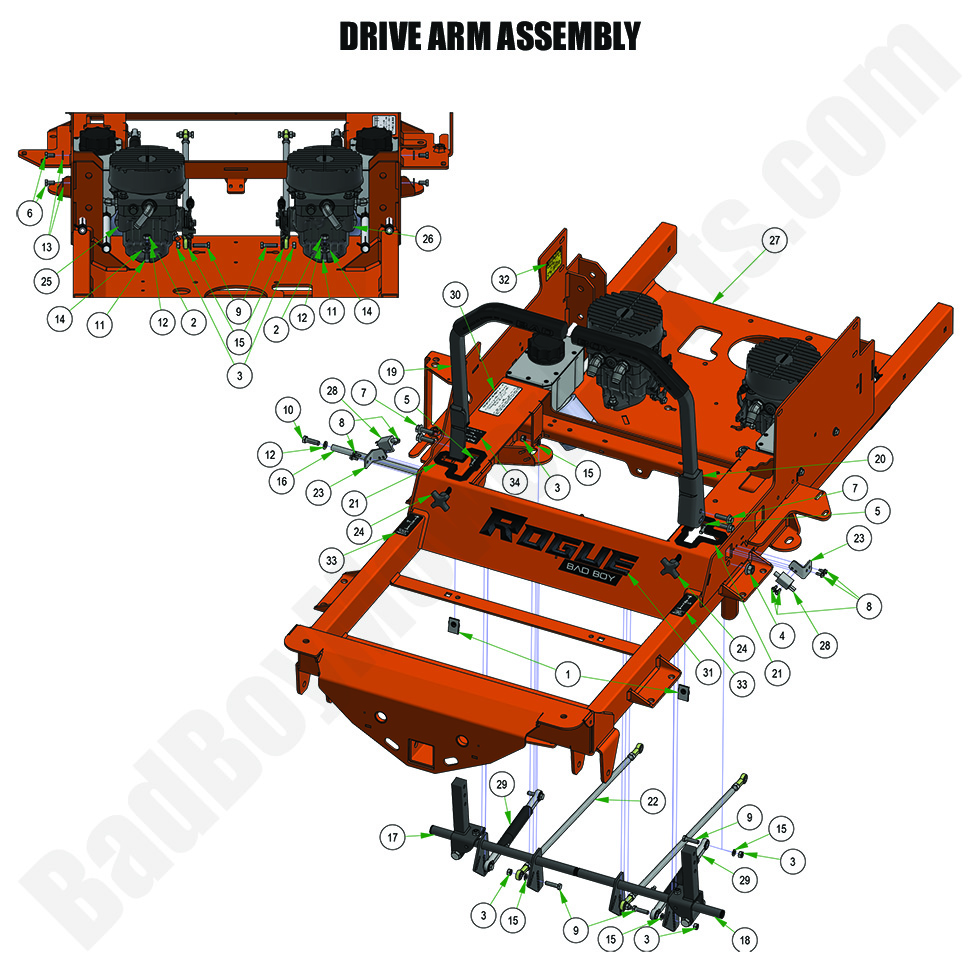

2024 Rogue - Drive Arm Assembly
  Position Number SKU Product Title Price
1 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-0068-00 018-0068-00 - 5/16-18 x 5/8 Hex Bolt
$3.29
7 018-0078-00 018-0078-00 - 3/8"-16 Thread Size, 1" 1/4 Long
$2.99
8 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
9 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
10 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
11 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
14 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
15 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
16 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
17 031-0030-24 031-0030-24 - 2024 R Series RH Arm Rod Assembly
$96.29
18 031-0031-24 031-0031-24 - 2024 R Series LH Arm Rod Assembly
$96.29
19 031-9070-00 031-9070-00 - R-Series Square Drive Arm RH Assembly
$129.99
20 031-9071-00 031-9071-00 - R-Series Square Drive Arm LH Assembly
$129.99
21 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55
22 035-0004-00 035-0004-00 - 2019-2022 Rogue Push Rod Assembly
$42.58
23 039-2160-00 039-2160-00 - Arm Switch Bracket (See Models Used On For More Detail)
$13.90
24 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
25 067-8053-21 067-8053-21 - LH Drive Pump & Hydraulic Tank Assembly
$699.99
26 067-8054-21 067-8054-21 - RH Drive Pump & Hydraulic Tank Assembly
$699.99
27 070-2305-00 070-2305-00 - 2023-Newer Rogue Frame--Orange
$1299.99
28 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
29 087-0002-00 087-0002-00 - Steering Rod Damper With Spherical Rod Ends For Renegade/Rogue (See Models Used On For Details)
$62.46
31 091-0516-00 091-0516-00 - MY24 Rogue Back Plate & Front Decal
$10.99
32 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99
33 091-1114-00 091-1114-00 - 2018-2022 LH/RH Steering Control Decal Roll
$15.60
34 091-4037-00 091-4037-00 - 2019-2022 Deck Release Decal
$8.01
